store remote control ID code programmatically fsk rf receiver module 315/433/868/915Mhz
- Delivery Time:
- 2 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China (Mainland) |
|---|
Product Description
Product Description

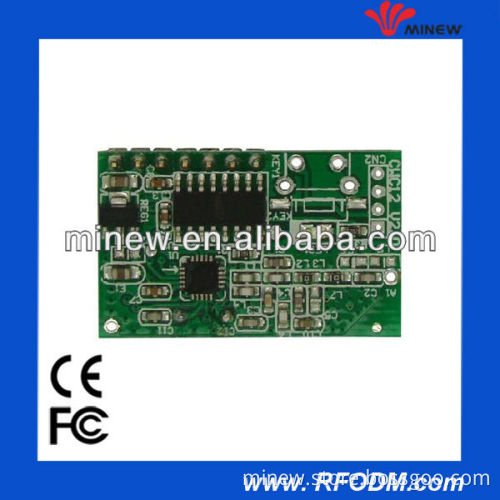

Specifications 1. store remote control ID code programmatically fsk rf receiver module 315/433/868/915Mhz
Learn remote control's ID code automatically or programmerically! Features: 1. FSK modulation, very strong anti-jamming ability 2. operation frequency 433MHz, 868MHz and 915MHz optional 3. frequency point can be customized by program code 4. can learning and storied max. 10pcs remote control 5. built in a decoder, 4 channels 6. output data supports momentary and latched 7. comply with CE (R&TTE ) and FCC (part 15.) regulations 8. RoHS compliant Fast frequency hopping technology can be used in CWC12 FSK receiver module to avoid interference as customer's needs. OEM and ODM are welcomed!
Minew company is not only a professional RF / Wireless products design-house, but also a verified manufacturer by Alibaba. Due to our outstanding design capabilities and extensive manufacturing experience, we can rapidly develop and produce RF & Wirelss products as global client's requirements. >>>>>>>>>>>>>>>>>> We have been producing wirless remote control, RF transmitter and receiver modules, wireless receiver control switch, wireless detectors(PIR Motion sensor, door soor, gas detector, smoking deteckor, water leaking detector, etc.) and home / business burglar alarm system. Our standard products are exported to Europe, America, Asia , Australia and Africa. Our service: Turnkey product design & One-stop manufacturing We will be pleased to begin working with you!
Learn remote control's ID code automatically or programmerically! Features: 1. FSK modulation, very strong anti-jamming ability 2. operation frequency 433MHz, 868MHz and 915MHz optional 3. frequency point can be customized by program code 4. can learning and storied max. 10pcs remote control 5. built in a decoder, 4 channels 6. output data supports momentary and latched 7. comply with CE (R&TTE ) and FCC (part 15.) regulations 8. RoHS compliant Fast frequency hopping technology can be used in CWC12 FSK receiver module to avoid interference as customer's needs. OEM and ODM are welcomed!
Operation voltage | DC 2.4-14.0V |
Standby current | <1uA |
Operation frequency | 915MHz (868MHz Optional) |
Modulation | FSK(PLL Technology) |
Operation current | 19.0mA (DC 3.0V) |
Data rate | <10Kbps |
Receiving Sensitivity | -110dB (Typ.) |
Encoder | Learning code, 1527, ITC |
Studied Remotes Quanity | 5pcs(Max.) |
Output channel | 4 channels (D0-D3) |
Output Mode | Latched / Memontary (optional) |
Antenna | External |
Package | DIP, 9pin, (D0-D3, Vcc, GND, Key, VT, ANT) |
Size | 33mm*21mm*6mm |
Certification | CE(R&TTE), FCC(Part 15.), RoHS |
Minew company is not only a professional RF / Wireless products design-house, but also a verified manufacturer by Alibaba. Due to our outstanding design capabilities and extensive manufacturing experience, we can rapidly develop and produce RF & Wirelss products as global client's requirements. >>>>>>>>>>>>>>>>>> We have been producing wirless remote control, RF transmitter and receiver modules, wireless receiver control switch, wireless detectors(PIR Motion sensor, door soor, gas detector, smoking deteckor, water leaking detector, etc.) and home / business burglar alarm system. Our standard products are exported to Europe, America, Asia , Australia and Africa. Our service: Turnkey product design & One-stop manufacturing We will be pleased to begin working with you!
