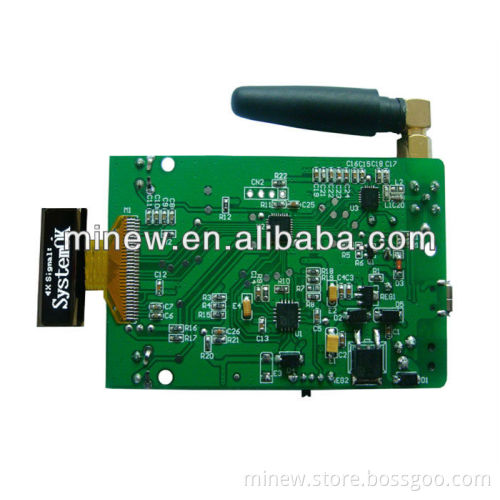

PCB Layout and Assembly Service for Electronic Products

Specifications 1. More than 10 years PCB layout experiences

2. Max. 32 layers PCB design ability

3. Fast Delivery, Factory Price

Primary Competitive Advantages: Prompt Delivery High technology Competitive price Experienced workers Great and promptly service PCB Design & Assembly:
Schematic → PCB Layout  → Checking  → Prototype  → Approved  → Trial Production  → Material Receiving → IQC  → Stock  → Material to SMT  → SMT Line Loading  → Solder Paste/Glue Printing  → Chip Mount  → Reflow  → 100% Visual Inspection  → Automated Optical Inspection (AOI) → SMT QC Sampling  → SMT Stock  → Material to PTH  → PTH Line Loading  → Plated Through Hole  → Wave Soldering  → Touch Up  → 100% Visual Inspection  → PTH QC Sampling  → In-Circuit Test (ICT)   → Final Assembly  → Functional Test (FCT)  → Packing  → OQC Sampling  → Shipping We offer a comprehensive electronic related project contract manufacturing services, including: PCBA/PCB assembly service (from component procurement, PCB fabrication to the mass production, engineering test, packing, and more) Wire harness Plastic injection molding for enclosures, case, and housing Metal die-casting and all kinds of metal process such as punching, extrusion, notching, bending, sheet stamping, forging, and welding, as well as relevant surface finishing process such as texture and oil spraying, anodization, and silkscreen Our manufacturing experience ranges: industrial, automotive, computing, storage, consumer, instrumentation, medical, networking, peripherals, and telecommunications OEM, ODM, and EMS services are provided
