RS232 RFID EM proximity door access card Reader EM9916

Product Description This reader is supplied in a PCB board containing RF circuits, an 8-bit microcontroller and data output connections. Its main functions are driving the antenna, sending demodulated data into microcontroller, checking the input data code and processing output data format.

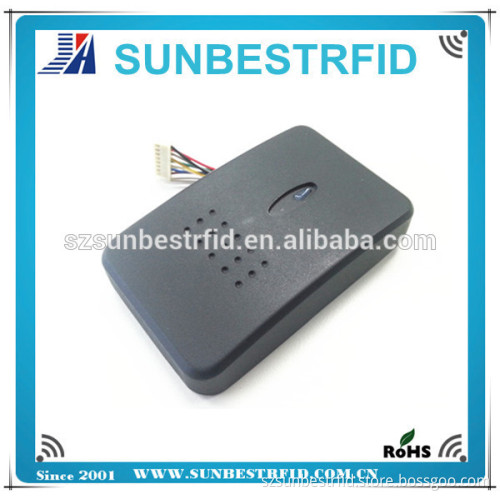

Detailed Images Frontage
Backface
General Features                                                           Brief Description
. 125KHz carrier frequency                                                               . An RFID reader system
. Reading of amplitude-modulated transponders                    . Include A 10-cm diameter square antenna coil
. Efficient tag management                                                                . An external DC 9V voltage that provides
. Easy to build up a control system                                                .0.2A current power supply is needed.
. the card with EM format is needed                                              .Wiegand 26 & RS232 data format output
Packing & Delivery Dimension Reader measure: two levels 104.6mm×65.4mm(length, not including connected pin)
Cable measure: 8 pin and length is 25cm.

Package: Box packing, box size: 120*95*55mm.  Gross weight: 0.125kg(with box)
