3 phase online high frequency UPS

Specifications N+X parallel redundancy

Full digital control with DSP

Advanced IGBT rectifier

Settable charge current on LCD

EPO

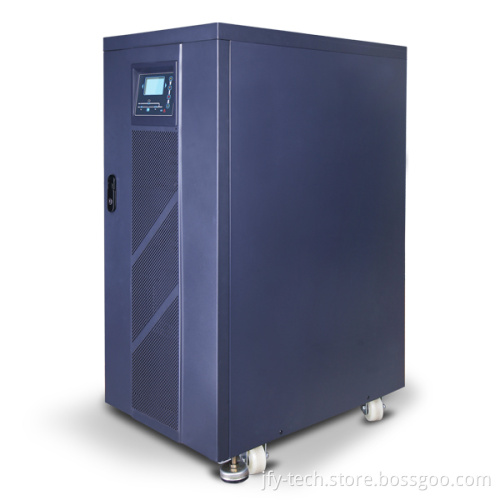

High Frequency Online 3 Phase UPS HF series (20KVA-80KVA)
The HF series 20-80KVA is applicable to small and medium-sized data centers, network management center, computer rooms for enterprises, or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion, and frequency fluctuation.   Features
& N+X parallel redundancy
& Full digital control with DSP
& Advanced IGBT rectifier
& Settable charge current on LCD
& Support generator input
& Self-testing when UPS startup
& EPO function
& Cold start
& Complete communication: RS232/ RS485/ dry contact/ SNMP
& Intelligent slot (optional): AS400 or SNMP card
& Isolation transformer box (optional)
& Temperature sensor (optional)
& Power feedback module (optional)   Technical Data

MODEL	HF 3320L	HF 3330L	HF 3340L	HF 3360L	HF 3380L
Rated Power	20KVA/16KW	30KVA/24KW	40KVA/32KW	60KVA/48KW	80KVA/64KW
INPUT
Voltage	380/400/415VAC(-40%~+25%)
Frequency	50/60Hz
Phase	3Ph+N+G
Power Factor	>0.99
BYPASS
Voltage	380/400/415VAC(-15%~+15%)
Phase	3Ph+N
Frequency	50/60Hz
Overload Capability	<150%, normally running
BATTERY
Battery Voltage	336/360/384VDC
Charging Current	1-10A(setting by battery capacity)
OUTPUT
Phase	3Ph+N
Voltage	380/400/415VAC±1%
Frequency	50/60Hz
Power Factor	0.8
THD	<2%(linear load); <4%(non-linear load)
Overload Capability	<105% normally running;105%-125% 10min; 125%-150% 1min; 150% 1ms
Waveform	Pure Sine Wave
Transfer Time	<10ms
SYSTEM
Efficiency	>94%
Cooling	Fan Cooling
Communication Interface	RS232,RS485,SNMP card, Dry Contact
Display	LCD+LED
Operating Temperature	0-40°C
Humidity	0-95% non-condensing
Altitude	<4000m(derated 1% per 100m above 2000m)
Noise Level	<50dB		<60dB		<65dB
Protection Level	IP20
Storage Temperature	-25°C~70°C
Dimension(W×D×H mm)	420×643×956	470×710×1150		600×800×1850
Weight(Kg)	82	110	114	282	306
Specification is subject to change without prior notice.
