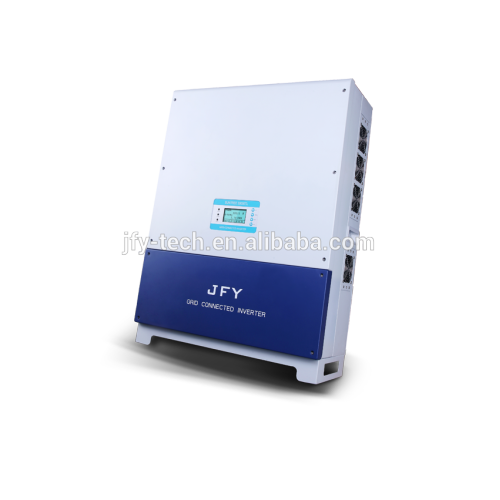

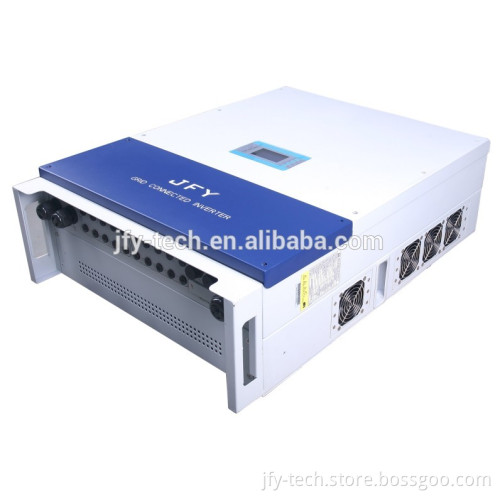

30KW Three Phase Solar PV Energy System Grid Tie Solar Inverter

Product Details SUNTREE Series Three-Phase String Inverter
Features
High performance string inverters
 From 5.0KW to 30.0KW
 Famous power components
 Superior PV energy harvest
 Excellent thermal performance
 Transformerless design with higher operation efficiency
 High overload capability under most ambient conditions
Easy and affordable to install
 Lightweight and compact size
 Wide MPPT voltage range allows more flexible module selections
 Includes a lightweight portable bracket simplifying installation
 Firm IP65 inverter enclosure allows outdoor application
Full data display and communications
 LCD display energy data
 Bright LED indicators imply system status at a glance
 PC software for remote monitoring and system troubleshooting
 Integrated RS485/RS232 serial communications
Cost Advantages
 Transformerless design cutting down the cost
 Light weight and small dimension, reducing shipping cost
 Integrated procurement and assembly line of operation, reducing production cost
 IP65 protection degree, suitable for outdoor installation, reducing construction cost
 Low maintenance expense and low power loss when breakdown

Product Introduction Product Parameters

MODEL(SUNTREE)	17000TL	20000TL	30000TL
Input (DC side)
Max. DC Input Power(W)	19000	22000	33000
Max DC Voltage(Vdc)	1000
MPPT Operating Range(Vdc)	250~800
Number of Parallel Inputs	6		10
Number of MPP Trackers	2
Max.input current of per Mppt(W)	9500	11000	16500
Max. Input Current(A)	2*32	2*35	2*33
Output (AC side)
Rated Power(W)	17000	20000	30000
Max. Output Power(W)	17000	20000	30000
Rated Output Current(A)	25.8	30.3	44.5
Max. Output Current(A)	28.3	33.3	48
Nominal AC Output Voltage(Vac)	400
AC Output voltage range (Vac)*	360~440
AC Grid frequency range (Hz)*	50/60±5
Power Factor (cosφ)	>0.9(leading)~0.9(lagging)
THDI	<3%(at nominal output power)
Efficiency
Max.efficiency	98.1%	98.2%	98.1%
Euro.efficiency	97.6%	97.6%	97.5%
MPPT. efficiency	99.6%	99.6%	99.6%
System
Operating Temperature(℃)	-25~+60
Noise typical[dB(A)]	≤50		≤65
Power consumtion at night (W)	0
Electrical Isolation	Transformerless
Cooling Concept	Fan Cooling
Degree of protection	IP65
Communication	RS485/RS-232 (WIFI Optional )
Dimension (W×D×H)(mm)	470*165*670		580*235*800
Weight (Kg)	50	50	65
*AC grid voltage range and frequency range depend on local standards.
