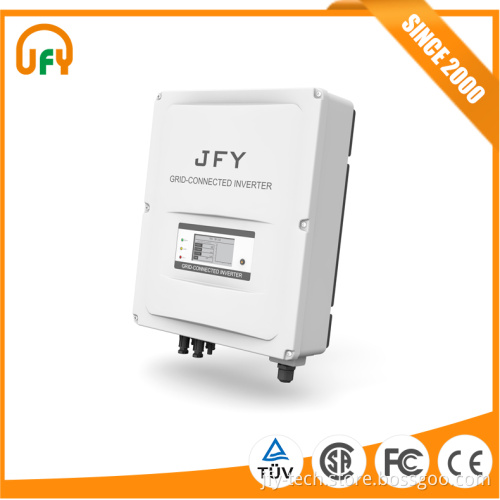

Chinese factory 4000W natural cooling on grid solar inverter without battery

Chinese factory 4000W natural cooling on grid solar inverter without battery Product Description Features High performance string inverters From 3.0kW to 5.0kW Wide PV input voltage range Digital control technology Rapid MPPT tracking technology Two MPPT trackers Transformerless design with higher operation efficiency Excellent thermal performance High overload capability Reactive Power Control and Active Power Control function Easy and affordable to install Lightweight and compact size Transformerless design Low maintenance expense Includes a lightweight portable bracket simplifying installation Firm IP65 inverter enclosure allows outdoor application Full data display and communications Large screen display Bright LED indicators imply system status at a glance Different monitoring solutions Integrated RS232 serial communications Certificates TUV, SAA, CE, CQC, AS4777.2/3, AS/NZS 3100,VDE 0126-1-1, EN62109-1/2, G83/2, G59/3,CNCA/CTS0004-2009A, CNCA/CTS0006-2010,EN61000-6-1/2/3/4, EN62109-1/2, RD1663, C10-11 Technical Data

MODEL(SUNTREE)	3000TL	4000TL	5000TL
Input (DC side)
Max. DC Input Power(W)	3120	4160	5200
Max DC Voltage(Vdc)	500
MPPT Operating Range(Vdc)	100~450
Number of Parallel Inputs	2
Number of MPP Trackers	2
Max. Input Current(A)	2*11.3	2*13	2*15
Output (AC side)
Rated Power(W)	3000	4000	5000
Max. Output Power(W)	3000	4000	5000
Rated Output Current(A)	13.0	17.4	21.5
Max. Output Current(A)	15.0	20.0	25.0
Nominal AC Output Voltage(Vac)	230
AC Output voltage range (Vac)*	185~265
AC Grid frequency range (Hz)*	50±5
Power Factor (cosφ)	>0.99
THDI	<3%(at nominal output power)
Efficiency
Max.efficiency	97.2%	97.1%	97.0%
Euro.efficiency	96.5%	96.5%	96.4%
MPPT. efficiency	99.8%	99.8%	99.8%
System
Operating Temperature(℃)	-25~+60
Noise typical[dB(A)]	≤20
Power consumtion at night (W)	0
Electrical Isolation	Transformerless
Cooling Concept	Natural Cooling
Degree of protection	IP65
Communication	RS232 (WIFI Optional )
Dimension (W×D×H)(mm)	358*145*430
Weight (Kg)	16.5	18	18
*AC grid voltage range and frequency range depend on local standards.
