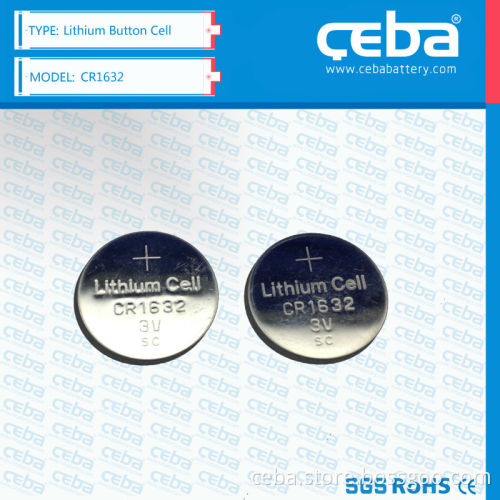

Lithium 3V button cell battery CR1632 for sale

Specifications Lithium Ion Batteries CR1632 CEBA

Longer life,good quality Low self-discharge

Small Orders Accepted

OEM welcomed

SGS CE Rosh

  TABLE I:

ITEM		UNIT	SPECIFICATIONS	CONDITIONS
Nominal voltage		V	3.0	Standard discharge
Nominal capacity		mAh	120	Standard discharge
Off-load voltage		V	3.0~3.5	Unit cell
Storage temperature		°C	0-35
Standard weight		g	2.3	Unit cell
Service output	Initial	h	60	Continuous discharge with load 4.7 kΩ,till 2.0v end-voltage at 20-25°C
	After 12 months storage	h	59

  TABLE II:

ITEM	CONDITIONS	CHARACTERISTICS
Self-discharge      rate	Continuously discharged under 47kΩ load till 2.0V end-point voltage at the temperature of 23°C±3°C	Less than ≤3%

                                               +  Lithium button cell battery CR1632 -       Our lithium/manganese dioxide batteries represent one of the latest advances in primary battery technology. For applications with a high current pulse (e.g. photoflash) and continuous drain,   all Southtop lithium batteries provide: high-energy density and excellent rate capability; wide operating temperature range  and superior low temperature performance; excellent shelf life. FEATURES OF Li/MnO2 BATTERIES:
- High energy density
- Low self discharge rate
- Long storage life
- No voltage delay
- High current discharge
- Wide range of operation temperature
- Safe and environmental friendly Li/MnO2 BATTERIES FIT APPLICATIONS FOR:
- Cameras/ Radios / Watches / Calculators / Computers
- Civil and military communication instruments
- CMOS memory backup / IC card / Memory card
- Medical equipment / Health care devices
- Alarms / Meters                                                                                                                                                                                                                             + Welcome visit our website to get more information -                                       http://ceba.en.alibaba.com/
