Web connecting RF receiver temperature monitoring system in warehouse wireless

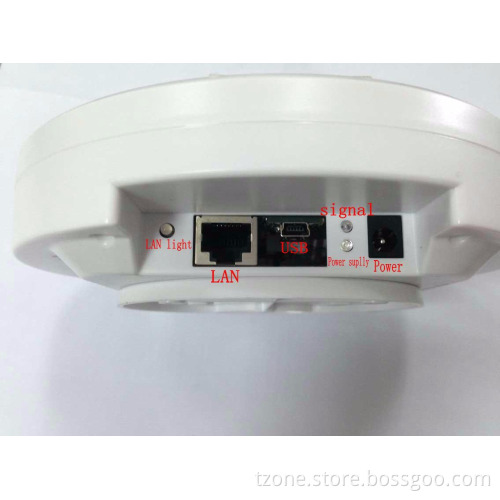

Web connecting RF receiver temperature monitoring system in warehouse wireless     RD05-It is a RFID reader to work with 2.4G temperature and humidity tags(tag04),and 433MHz temperature sensor(tag06),which is widely used in cold chain,supply,warehouse management. With a LAN serial and make it easy to connect web,to make your management easily.

Working frequency	2.400-2.4835GHz/433MHz
Receiving sensitivity	1Mbps@-85dBm
Tag identification angle	Omnidirectional
Communication interface	RS485/LAN
Output port	OUT
Firmware upgrade	Serial port upgrade
Protocol standard	Bluetooth 4.0
Supply voltage	DC12V-24V
Net weight	0.15kg
Working environment temperature	-40°C~+60°C
Working environment humidity	5% ~ 95% (non-condensing)
IP protection level	IP55
Dimensions	Cylindrical,Diameter 170mm,Height40mm
Reading distance	50m
Installation method	Ceiling mounted

                                                                                                                                                                                      Temperature sensor TAG06               Touchscreen temperature DP070     Temperature and humidity TAG04
