internal antenna and battery support ibutton reader and engine cut 3G GPS tracker

3G WCDMA waterproof real time GPS tracker --AVL301     Application: 3G fast vehicle information transmission GPS vehicle tracking vehicle safety, anti hijacking, mobile asset tracking

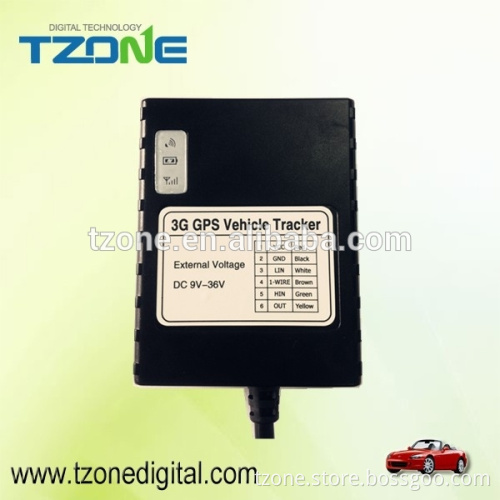

Location based service fleet management: taxis, buses, motorcycles, trucks, etc   Description: New! 3G GPS Tracker TZ-AVL301
Frequency GSM 850/900/1800 /1900Mhz (Custom),
WCDMA 2100/900Mhz
Support iButton
1 Negative Digital Input
1 Positive Digital Input
2 Digital Output
1 analogue input
1-Wire iButton for driver identification
Waterproof: IP65
Flash memory for logging
Built-in GSM and GPS antenna
Support TCP/UDP protocal
Detect ignition
Mileage calculate
Google map link of location send by SMS
Engine Immobilization

Specifications:
Item Specification Charging Voltage DC 9-36V Dimension 87mm*67mm*21mm 3G module GSM 850/900/1800 /1900Mhz (Custom),WCDMA 900/2100Mhz Flash Memory 32MBit GPS Sensitivity -165dBm GPS Frequency L1, 1575.42 MHz C/A Code 1.023 MHz chip rate Channels 66 channel all-in-view tracking Position Accuracy 3 meters, 2D RMS Velocity Accuracy 0.1 m/s Time Accuracy 1 us synchronized to GPS time Default datum WGS-84 Reacquisition 0.1 sec., average Hot start 2 sec., average Cold start 33 sec., average Altitude Limit 18,000 meters (60,000 feet)max Velocity Limit 515meters/second(1000knots)max Jerk Limit 20 m/sec Operating temperature -20°C to 60°C Humidity 5% to 95% Non-condensing Voltage Rechargeable 320mAh battery(3.7V) Work time 7 hours in normal mode   Send your message to this supplier * From: * To: Mr. Frank Liao * Messages: Enter between 20 to 4,000 characters. Related Products Fleet Management GPS Tracking System AVL GPS Tracking Platform,Show the Speed,direction ,Different Alarm AVL GPS Tracking System,Receive date by GPRS.Real Time Tracking google map web based school attendance management gps server tracking software Related Keywords Related Keywords internal antenna and battery 3g gps tracker , 3g gps tracker support ibutton reader , engine cut 3g gps tracker internal antenna and battery 3g gps tracker , 3g gps tracker support ibutton reader , engine cut 3g gps tracker You May Also Like You May Also Like Fleet Management GPS Tracking System AVL GPS Tracking Platform,Show the Speed,direction ,Different Alarm AVL GPS Tracking System,Receive date by GPRS.Real Time Tracking google map web based school attendance management gps server tracking software OEM small size waterproof car gps tracker with internal antennas easy to install and hide Related Products Built-in GSM and GPS antenna Mileage calculate 3G WCDMA waterproof TCP/UDP gps tracker google map real time vehicle gps tracking remote monitoring ip67 WCDMA 3g tracker professional manufacturer vehicle fleet management ip67 3g WCDMA gps/gprs tracker small size 3G GPS moto tracker 3g car gps navigation gps tracker Product Categories RFID(64) RFID tag(32) RFID Reader(32) Temperature monitor(127) GSM temperature transmitter(32) RFID temperature monitor(31) temperature sensor(32) Bluetooth temperature data logger(32) Tracker(276) AVL05-3G(32) AVL201(2) AVL301(32) AVL02(32) AVL05(32) AVL09(32) AVL10(32) AVL19(32) AVL11(32) Fleet management software(16) Other(2) Bluetooth product(6) bluetooth reader(1) iBeacon(5)
