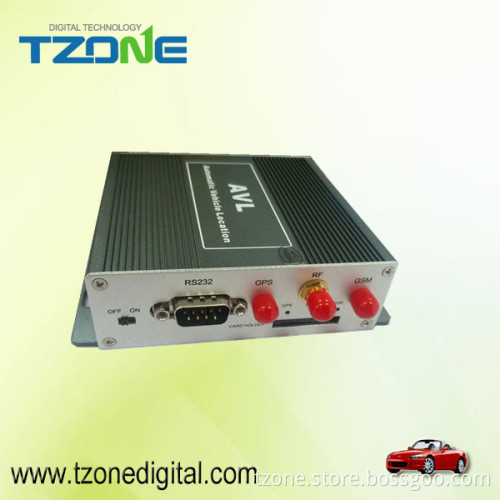

high end GPS vehicle tracker with built in 2.4G RFID reader for monitoring passenger
  • high end GPS vehicle tracker with built in 2.4G RFID reader for monitoring passenger
  • high end GPS vehicle tracker with built in 2.4G RFID reader for monitoring passenger
high end GPS vehicle tracker with built in 2.4G RFID reader for monitoring passenger
high end GPS vehicle tracker with built in 2.4G RFID reader for monitoring passenger

high end GPS vehicle tracker with built in 2.4G RFID reader for monitoring passenger

Delivery Time:
3 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
GPS tracker integrated with 2.4G RFID receiver --AVL19  Applications:  Vehicle location;  Vehicle tracking;  Vehicle alarm;  Vehicle recovery;  Connect camera, RFID reader and car phone etc;  Fleet managemen: car, bus, taxi, truck and trailer etc.   Key Features:  SiRF StarIV GPS chipsets and multi-band GSM module;  Track by SMS or GPRS;  Track by interval or on demand;  SOS alarm;  Low power alarm;  Over speed alarm;  Geo-fence alarm;  Parking alarm;  External power disconnection alarm;  Milemeter;  Flash;  Voice monitoring;  Two-way talking;  Internal motion sensor;  Sleep mode;  Heartbeat detecting;  GSM location;  Cut off engine;  Measure fuel level, water temperature and air temperature etc;  Detect engine, ACC, doors, seatbelts and beam lights etc;  Connect camera, RFID reader, LCD dispatch screen and car phone etc;  Set parameters by sms or software;  Update firmware by hyper terminal;  TCP/UDP protocol;  Internal li-polymer battery;  2 switch input, 2 analog input, 4 digital input, 4 digital output, 2 RS232 input and 1 mini USB port.   Specifications:

GPS Chipset

SIRF StarIV

GSM Module

Simcom 850/900/1800/1900 MHz

GPRS Protocol

TCP/UDP

Position Accuracy

5 - 15 meters

Hot Start

1 second

Warm Start

38 seconds

Cold Start

42 seconds

Operating Temperature

-20 - +60°C

Air Pressure

860 - 1060 Kpa

Humidity

Up to 75%, non-condensing

GSM Antenna

Exterior

GPS Antenna

Exterior

LED Light

Power(Tremble)/GSM/GPS

Panic Button

1

Flash Memory

32M

Motion Sensor

Build-in

Microphone

High sensitivity

Earphone

High sensitivity

I/O Port

2 switch input, 2 analog input, 4 digital input, 4 digital output, 2 serial input and 1 mini USB port

Battery

3.7V/1100mAh li-polymer battery

Power Consumption

Working mode<100mA, sleep mode<5mA

Standby Time

72 hours

Run time

12 hours

Exterior Power Supply

DC 12 - 24V

Dimension

118mm*93mm*31mm

N.W.

260g

  2.4G receiver specification :

Parameters

illustration

Working Frequency

2.400 - 2.4835GHz

Chip Set

Nordic

Operation Mode

Active operating Mode

Distance

0-50m

Modulation

GFSK

Air Data Rate

250Kbps

Operating temperature

-40~85℃

Storage temperature

-40~125 ℃

Humidity

5% ~ 95% (non-condensing)

Rx Sensitivity

250kbps@-94dBm

Wireless transmission

GPRS

  Different model comparison :
