RFID and GPS Tracker for trailer project and refrigerate transportation

 Applications:       ·Vehicle GPS locating and tracking
·School bus management, logistics management
·Fleet management: car, taxi, bus, truck, etc
·Anti-thieft    Description:
·Support single location and continual tracking
·Over-speed alarm, Low power alarm, Geo-fence alarm
·Tremble alarm, Parking alarm, SOS alarm
·Control car doors close/open, detect the status of engine on/off
·Cut off the  engine power gradually and safely when in urgency
·GPRS(TCP/UDP), SMS Support
·When without tremble the device will go into sleep mode               Special Features:
1.Can built-in RFID Reader with 2.4G RFID tag, SD card record (optional)
2.Can connect external  RFID Reader, Cameras, Printer (optional)
3.Vehicle examination and diagnostics by CAN-BUS
4.3D accelerometer
5.Support sending GPRS data to IP or DNS
6.Mileage calculation
7.32Mb flash memory
8.Fuel/oil level detection
9.Temperature sensors  (optional)
10.Two- way conversation

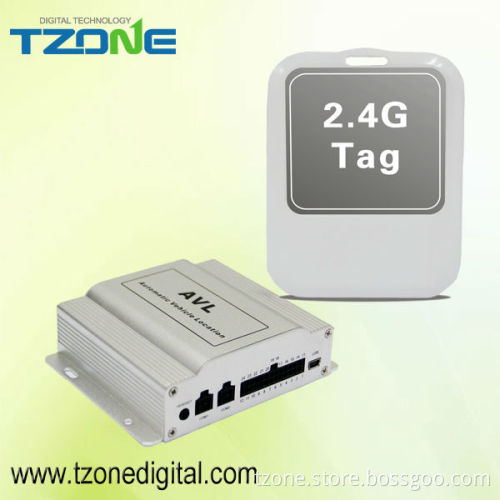

11. Mobile Google map         Accessories:   Standard Accessories: GPS Antenna  GSM Antenna  I/O cable  USB Configuration Cable CD   Optional Accessories: Relay  Fuel sensor Built-in RFID Reader SD card Redader 2.4G Tag     RFID reader Camera RF Antenna Temperature sensor      Built-in RFID Reader with 2.4 RFID tag         Name: GPS tracker FCC
Certificate No: SEM11019983
Date: Jan 26, 2011    Valid until: Feb 16, 2015    Range: TZ-AVL08 ,TZ-AVL18     Specifications:

Exterior Power Supply	9V -36V
Backup Battery	850mAh /3.7V
GPS Sensitivity	-163dBm
Exterior GSM antenna	Receive GSM Signal better
Exterior GPS antenna	Receive GPS signal better
Exterior RF antenna	Receive RF signal better
GSM Chip	Support Quad-band(850/900/1800/1900 Mhz)
GPS chip	Super sensitivity and high accuracy
Position Accuracy	Within 10m for 90%   (24hr static,   -130dBm)
I/O port	2 analog input ports, 6 digital input ports(2 positive input, 4 negative input), 3 digital output ports, 4 serial ports and 1 mini USB port
