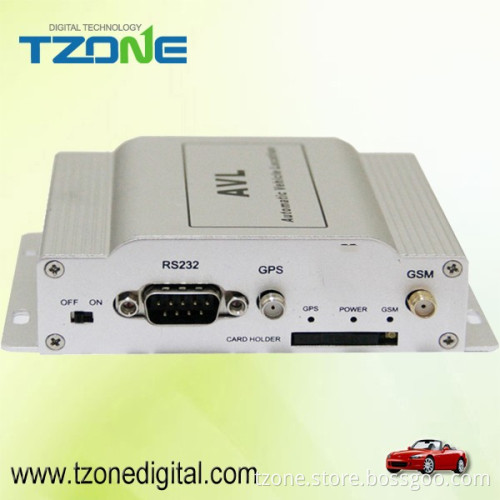

Vehicle GPS tracker with 125KHz RFID reader support camera and relay

Support camera 125Khz RFID reader Ibutton fuel sensor temperature sensor Tzone RFID gps tracker AVL09     Application: Vehicle security Mobile asset tracking, Location-based services Fleet Management: car, taxi, bus, truck etc. Manage your assets, use for school bus, logistics project     Description: Can support external 125Khz RFID Reader and Camera Two-way Audio Track by Demand Track by Time Interval automatically Support TCP and UDP protocol Detect Ignition Detect Fuel Level Engine Immobilization Mileage calculation GPRS alarm function: over-speed/Geo-fence/Low battery/Powe Cut/Motion/SOS     Special Feature:   SD card record (optional) Can connect external 125Khz RFID Reader, cameras, printer (optional) 3D accelerometer Support sending GPRS data to IP or DNS Mileage calculation 32Mb flash memory Fuel/oil level detection Temperature sensors (optional) Two-way conversation Mobile Google map Support Ibutton for driver identification     Accessories: Standard Accessories: GPS Antenna  GSM Antenna  I/O cable  CD   Optional Accessories: Relay  Fuel sensor SD card Redader 125Khz RFID reader Camera Temperature sensor  Ibutton

Specifications

Dimension 118mm*93mm*31mm N.W for machine 0.26KG External Voltage 9V -36V Backup Battery 850mAh /3.7V GPS Sensitivity  -163dBm Exterior GSM antenna Receive GSM Signal better Exterior GPS antenna Receive GPS signal better Power Consumption Active mode<100mA Operating Temperature Range -20°C to +60°C Humidity Up to 75% non-condensing Position Accuracy Within 10m for 90%   (24hr static,   -130dBm) GSM Frequency Support Quad-band(850/900/1800/1900 Mhz) GPS Chipset Super sensitivity and high accuracy Chipset Cold Start (open sky) 35sec Chipset Warm Start (open sky) 35sec Chipset Hot Start (open sky) 1sec LED 3 LEDs indicate power, GSM, GPS signal, and trembling status Microphone & speakers yes Interfaces  2 analog input ports, 6 digital input ports(2 positive input, 4 negative input), 3 digital output ports, 4 serial ports and 1 mini USB port              Send your message to this supplier * From: * To: Mr. Frank Liao * Messages: Enter between 20 to 4,000 characters. Related Products Fleet Management GPS Tracking System AVL GPS Tracking Platform,Show the Speed,direction ,Different Alarm AVL GPS Tracking System,Receive date by GPRS.Real Time Tracking google map web based school attendance management gps server tracking software Related Keywords Related Keywords gps tracker with 125khz rfid reader , gps tracker support camera and relay , 125khz rfid reader car gps tracker gps tracker with 125khz rfid reader , gps tracker support camera and relay , 125khz rfid reader car gps tracker You May Also Like You May Also Like Fleet Management GPS Tracking System AVL GPS Tracking Platform,Show the Speed,direction ,Different Alarm AVL GPS Tracking System,Receive date by GPRS.Real Time Tracking google map web based school attendance management gps server tracking software OEM small size waterproof car gps tracker with internal antennas easy to install and hide Related Products Fuel Check for Cars/Vehicles/Automobiles RS232 Car GPS Tracker with fuel sensor and camera rfid gps tracker hotting sell South Africa RFID Camera 2-way conversation vehicle gps tracker school bus container high performance rfid gps tracker with anti jamming rfid gps tracker, listen-in camera for school bus GPS tracker AVL09 with serial ports support external passive RFID reader and ibutton for driver identification Product Categories RFID(64) RFID tag(32) RFID Reader(32) Temperature monitor(127) GSM temperature transmitter(32) RFID temperature monitor(31) temperature sensor(32) Bluetooth temperature data logger(32) Tracker(276) AVL05-3G(32) AVL201(2) AVL301(32) AVL02(32) AVL05(32) AVL09(32) AVL10(32) AVL19(32) AVL11(32) Fleet management software(16) Other(2) Bluetooth product(6) bluetooth reader(1) iBeacon(5)
