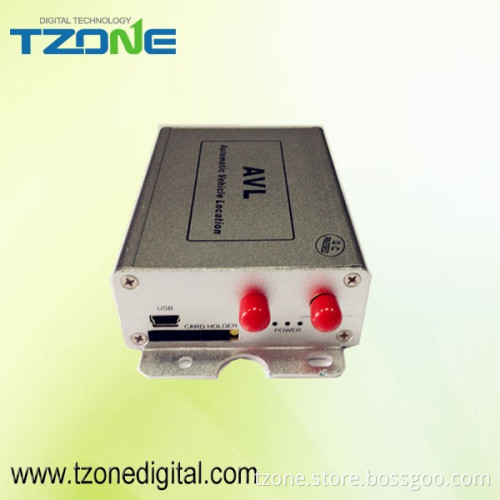

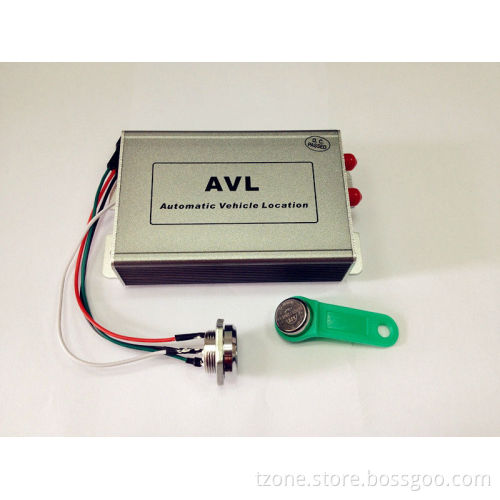

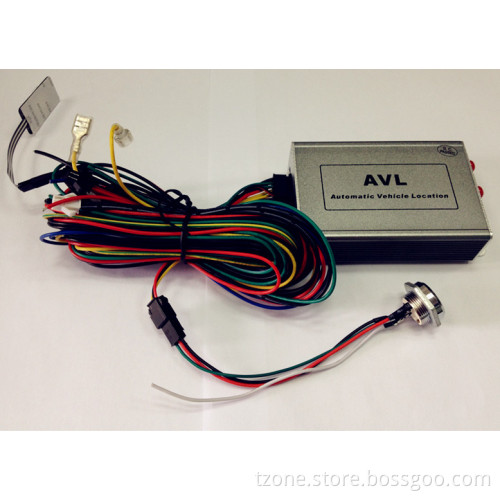

AVL-05 vehicle GPS Tracking system with 2 way conversation and fuel, temperature sensor for security and fleet management

Product Description Tzone      2016    AVL-05 vehicle GPS Tracking system with 2 way conversation and fuel, temperature sensor for security and fleet management Brand new Tzone latest AVL-05 is a professional 3G GPS tracker. with real-time monitoring, fashion metal shell. It will very easy to catch your eyes. AVL-05 have many I/O port, it can connect with fuel sensor, temperature and humidity sensor, and even monitoring if your door is  open , and if you have tied your safety belt. It is very useful and popular. You won`t miss it!
Great AVL-05 vehicle GPS Tracking system with 2 way conversation and fuel, temperature sensor for security and fleet management
2016 Tzone AVL-05 vehicle GPS Tracking system with 2 way conversation and fuel, temperature sensor for security and fleet management

Tzone AVL-05 Characteristics
Dimension	96mm*65mm*25mm	Exterior Power Supply	DC 9V -- 36V
Inner lithium battery	DC 3.6V -- 4.2V	Exterior GSM antenna	Receive GSM signal better
Exterior GPS antenna	Receive GPS signal better	Operating Temperature Range	-20℃ ℃ to +60
Air pressure	860Kpa --1060Kpa	Humidity	Up to 75%
Position accuracy	5 --10 meters	GPS chip	Sirf-Star IV
LED	3 LEDs indicates GSM, GPS signal, and trembling  status
I/O port	1 SOS button ，2 digital input，2 switch input，2 digital output,2 analog input
Button	2 buttons, SOS button,Button A( Can call the specified number)

Main Features 1.Internal Polymer Lithium Ion Battery in theAVL

2.Can be charged by exterior DC 9 - 36 V

3.Exterior battery cut off alarm

4.Support mini USB port to update firmware

5.Low power consumption

6.Over-speed alarm

7.Geo-fence alarm

8.Low power alarm

9.With SIMCOM GSM/GPRS module and Sirf-StarIV GPS chipset

10.Support single location and continual tracking

11.Can Real-time tracking your vehicle via map on PC

12.GPRS function, receiving position data and alarm data on Server

13.Anti-theft alarm, support alarm when someone tremble your car once you

park it and send an alarm report to you via SMS or GPRS data

14.Remotely detect the status of the Windows or Doors or Engine close/open

through the Digital Input sockets.

15.Remotely cut the Oil/Engine power through the Digital Output socket.

16.SOS button send out exact location for immediate rescue. After user press

SOS button in the AVL, AVL unit will send out the location and SOS alarm

to the preset number via SMS or a Server via GPRS

17. With 32M memory, this can store about 16000 PCS data. When GPRS is lose

connection, those data will be store and send when GPRS connection is

recover.

18.Calculate the milemeter of the car from the GPRS data.

19.Detect the car of the fuel.

20.With Temperature sensor

21.With Microphone and headset function. Certifications Company introduction Tzone Digital Technology Co.,Ltd Established in 2006, Shenzhen Tzone Digital Technology Co.,LTD is a leading hi-tech enterprise consolidated R & D, manufacture and sales. The company covers about 1500 square meters, with R&D team over 30 and Quality management staff over 20. The production procedure is in full compliance with the ISO9001 standard, and all the products has passed certificates such as CE,FCC,ROHS and so on.
Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.
Packing & Delivery

Packaging
Size	19.5cm * 15cm * 6cm
Weight	1kg
Packaging Details	The normal package is export box(Size: 19.5cm * 15cm * 6cm ). we also accept to pack it according to customers special request.
