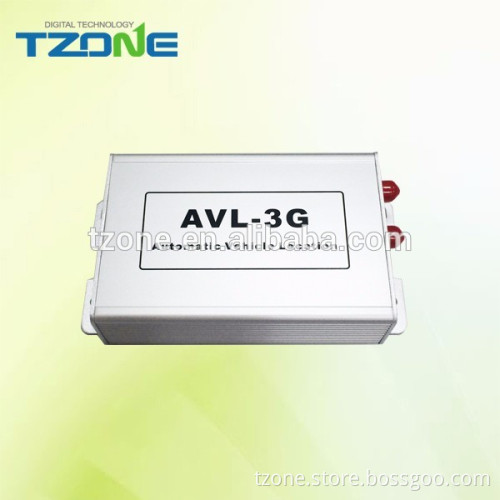

multifunctional 3G GPS tracker with serial port support camera and fuel and temperature sensor

New 3G GPS tracker      Model No.TZ-AVL05(3G)   Applications: Vehicle Tracking Vehicle Security/Recover/Anti-hijacking Mobile Asset Tracking Location-based Services Fleet Management: car, taxi, bus, truck etc.   Description: Main functions:
 GPS + GSM double module tracking
 Real time position checking
 Sending positioning data periodically
 Distance tracking
 Speed alarm
 Anti-theft and alarms
 SOS alarm
 GPS antenna cut alarm
 Power supply cut alarm
 GPS no signal alarm
 Remote fuel and power cut
 Engine, door check
 Alarm of vehicle being pulled
 Geo-fence alarm
 Fuel level monitoring
 Other functions:
 Mileage report
 Low voltage alarm
 G_sensor function
 Anti-shifting of static GPS
 OTA
 iButton
 Temperature sensor DS18B20;
 RS232 interface to connect camera, RFID reader, etc.
 TF card store the data

  Specification:

Feature	Characteristics
Dimension	96mm*65mm*25mm
Exterior Power Supply	DC 9V -- 36V
Inner lithium battery	3.7V/850mAh
Exterior GSM antenna	Receive GSM signal better
Exterior GPS antenna	Receive GPS signal better
Power Consumption when exterior voltage is 12V	Active mode(avg.) < 100mA Sleep mode      < 10mA
Operating Temperature Range	-20°C to +60°C
Air pressure	860Kpa --1060Kpa
Humidity	Up to 75% non-condensing
Position accuracy	10 meters
3G chip	AVL05_3G-T: 850/2100MHz@UMTS 850/900/1800/1900MHz@GSM AVL05_3G-E: 900/2100MHz@UMTS 900/1800MHz@GSM AVL05_3G-A: 850/1900MHz@UMTS 850/900/1800/1900MHz@GSM
GPS chip	U-blox (super-sensitivity and high accuracy )
LED	3 LED indicates (GSM,GPS signal and power status)
Button	SOS button
I/O port	3 digital input(1 positive input, 2 negative input) 3 digital output 2 analog input
Options	Ibutton/Temperature sensor DS18B20/Camera/Magnetic card reader/TF card

        Optional Accessoires :         Warranty  1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.      Delivery 1. Sample and small order will be delivered within 1-3 working days upon we receive the payment. 2. For order over 500pcs or customized order, lead time within 7 working day.
