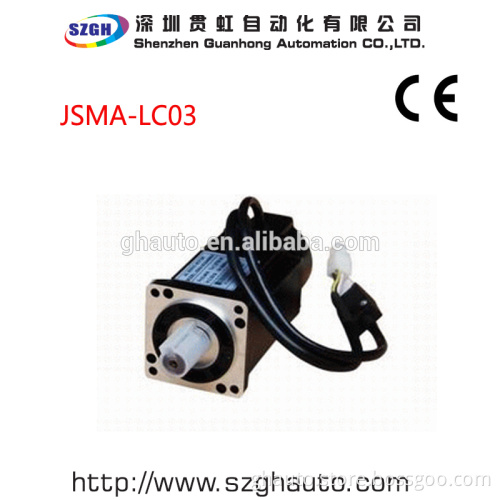

Frame size 76mm AC Servo Motor (JSMA-LC03 TECO)

  Frame size 76mm AC Servo Motor (JSMA-LC03 TECO) Product Description  Specifications:

Specification/Servo Motor Series	Symbols	Unit	JSMA-LC03
Matched Driver			JSDEP-15A
Rated Output Power	PR	W/KW	330W
Rated line voltage	VT	V	109.2
Rated Torque	TR	N.M	0.95
Rated Armature Current	IR	A	2.0
Rated Rotation Speed	NR	rpm	3000
Peak Torque At Stall	Tmax	N.m	2.861
Peak Armature Current	Imax	A	6
Torque Constant	KT	N.m/A	0.523
Voltage Constant Per Phase	KE	V/k.rpm	54.9
Rotor Moment Of Inertia	JM	kg.cm2	0.6773
Anti-electric(@1800rpm)	VEMF	Volts	57
Phase Resistance	Ra	Ω	5.58
Inductive Impedance	La	mH	11.6
Mechanical Time Constant	Tm	ms	1.978
Electrical Time Constant	Te	ms	2.05
Weight	W	kgw	1.588
Insulation Grade			Class F(155°C)
Brake Rated Voltage		V	VDC 24±10%
Brake Static Friction Torque		N.m	1.176
Rotor Moment of Inertia(Brake)		kg.cm2	0.098
Current Consumption		A	0.45
Brake Weight	W	kgw	0.68
Motor Operating Temperature	T	°C	0~40
Motor Operating Humidity	RH	%	<90
Motor Reserve Temperature	T	°C	TRUE
Motor Reserve Humidity	RH	%	<90

Product picture: Feature: Dimension:
