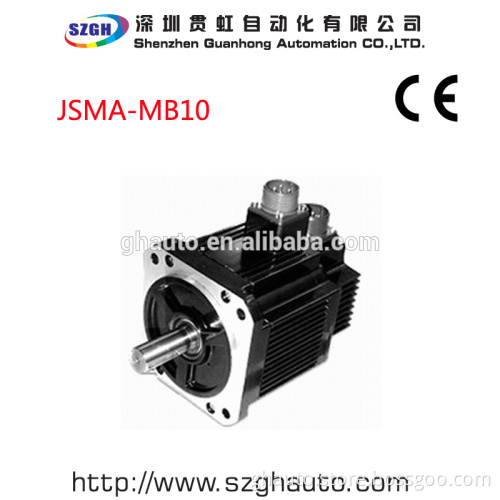

TECO 1000W AC Servo Motor driver and system JSMA-MB10

TECO 1000W AC Servo Motor driver and system JSMA-MB10 Product Description JSMA-MB10 is 1000W and 4.78NM TECO AC 230V servo motor, got UL,CE certification, it has very high performance , economic type. Feature

Specification/Servo Motor Series	Symbols	Unit	JSMA-MB10
Matched Driver			30A
Rated Output Power	PR	W/KW	1000W
Rated line voltage	VT	V	134.2
Rated Torque	TR	N.M	4.782
Rated Armature Current	IR	A	5.16
Rated Rotation Speed	NR	rpm	2000
Peak Torque At Stall	Tmax	N.m	14.327
Peak Armature Current	Imax	A	15.5
Torque Constant	KT	N.m/A	1.019
Voltage Constant Per Phase	KE	V/k.rpm	206.8
Rotor Moment Of Inertia	JM	kg.cm2	6.26
Anti-electric(@1800rpm)	VEMF	Volts	111
Phase Resistance	Ra	Ω	1.22
Inductive Impedance	La	mH	6.7
Mechanical Time Constant	Tm	ms	1.09
Electrical Time Constant	Te	ms	5.52
Weight	W	kgw	6.47
Insulation Grade			Class F(155°C)
Brake Rated Voltage		V	VDC 24±10%
Brake Static Friction Torque		N.m	15
Rotor Moment of Inertia(Brake)		kg.cm2	0.675
Current Consumption		A	0.58
Brake Weight	W	kgw	1.2
Motor Operating Temperature	T	°C	0~40
Motor Operating Humidity	RH	%	<90
Motor Reserve Temperature	T	°C	TRUE
Motor Reserve Humidity	RH	%	<90

    Picture    Feature Mechanical Dimensions (mm)    diagram     Packaging & Shipping 1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets 2.Commercial packing: plastic bag+ foam boxes + carton 3.As the clients' requirement Delivery Detail: Normally ready goods and stock within 2-5days       Company Information About our company Official Website: http://www.szghauto.com/ we can provide with suitable package solution by CNC system and motor ,driver, gear box, Shenzhen Guanhong Automation CO.,LTD (short name:SZGH) has professional technical team, strictly product test for high quality guarantee, very competitive quotation, specially we has flexible and convenient payment mode by T/T, western union and Paypal etc,. and low cost delivery solution for clients. Our company tenet “Quality is the life of enterprise “, Your satisfy is our greatest achievement.   Produce workshop Our Services • Certified actual products - We have a zero-tolerance policy for asset recovery vendors.   • Lowest package prices -Always offer lower price than other companies.   • Professional technical engineer team- possible fastest response and support to client’ application demand.   • Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, SZGH promise to refund.   • Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.   • Free payment mode by T/T, L/C, western union and Paypal can be available. We can provide total control system!
