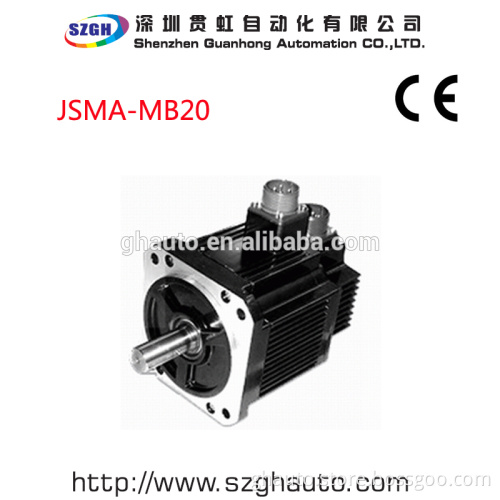

Single Phase 2000W 220V TECO Servo Motor/ac servo motor(JSMA-MB20)

 Single Phase  2000W 220V TECO Servo Motor/ac servo motor(JSMA-MB20) Feature

Specification/Servo Motor Series	Symbols	Unit	JSMA-MB20
Matched Driver			50A3
Rated Output Power	PR	W/KW	2000W
Rated line voltage	VT	V	143.71
Rated Torque	TR	N.M	9.545
Rated Armature Current	IR	A	9.18
Rated Rotation Speed	NR	rpm	2000
Peak Torque At Stall	Tmax	N.m	28.645
Peak Armature Current	Imax	A	27.5
Torque Constant	KT	N.m/A	1.14
Voltage Constant Per Phase	KE	V/k.rpm	119.4
Rotor Moment Of Inertia	JM	kg.cm2	12.14
Anti-electric(@1800rpm)	VEMF	Volts	124
Phase Resistance	Ra	Ω	0.58
Inductive Impedance	La	mH	3.78
Mechanical Time Constant	Tm	ms	0.8
Electrical Time Constant	Te	ms	6.59
Weight	W	kgw	10.18
Insulation Grade			Class F(155°C)
Brake Rated Voltage		V	VDC 24±10%
Brake Static Friction Torque		N.m	15
Rotor Moment of Inertia(Brake)		kg.cm2	0.725
Current Consumption		A	0.59
Brake Weight	W	kgw	1.7
Motor Operating Temperature	T	°C	0~40
Motor Operating Humidity	RH	%	<90
Motor Reserve Temperature	T	°C	TRUE
Motor Reserve Humidity	RH	%	<90

  Picture        Mechanical Dimensions (mm)       Wiring diagram     Company Information About our company: Website in Alibaba: http://ghauto.en.alibaba.com/  Official Website: http://www.szghauto.com/          Shenzhen Guanhong Automation CO.,LTD (Formerly known as 'Shenzhen Guanhong Automation Technology Co.,Limited(Built in 19 November 2010)') is one of the leading CNC & automatic company in China, specialized in designing projects, marketing, and oversea trading, having extensive experience in CNC package solution, Our focus has been on providing the high quality of Lathe CNC system, Milling CNC system,  Engraving CNC system, AC servo motor & driver,  TECO servo motor&driver, Stepper motor & driver, Closed stepper motor &driver, Gear reducer. We has professional technical team, strictly product test for high quality guarantee, very competitive quotation, specially we has flexible and convenient payment mode and low cost delivery solution for clients. Our company tenet “Quality is the life of enterprise “, Your satisfy is our greatest achievement.     Our Services • Certified actual products - We have a zero-tolerance policy for asset recovery vendors.   • Lowest package prices -Always offer lower price than other companies.   • Professional technical engineer team- possible fastest response and support to client’ application demand.   • Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, SZGH promise to refund.   • Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.   • Free payment mode by T/T, L/C, western union and Paypal can be available. We can provide total control system!
