High Quality Warranty 3700w TECO AC Servo Motor and Driver

  High Quality Warranty 3700w TECO AC Servo Motor and Driver   Product Description   JSMA-MA37 is 3700W and 35NM TECO AC 230V servo motor, got UL,CE certification, it has very high performance , economic type.

Specification/Servo Motor Series	Symbols	Unit	JSMA-MA37
Matched Driver			75A3/100A3
Rated Output Power	PR	W/KW	3700W
Rated line voltage	VT	V
Rated Torque	TR	N.M	35
Rated Armature Current	IR	A
Rated Rotation Speed	NR	rpm	1000
Peak Torque At Stall	Tmax	N.m	70
Peak Armature Current	Imax	A
Torque Constant	KT	N.m/A	2.2
Voltage Constant Per Phase	KE	V/k.rpm
Rotor Moment Of Inertia	JM	kg.cm2	8.6*10
Anti-electric(@1800rpm)	VEMF	Volts
Phase Resistance	Ra	Ω	0.31
Inductive Impedance	La	mH	3.28
Mechanical Time Constant	Tm	ms
Electrical Time Constant	Te	ms	10.58
Weight	W	kgw	30.5
Insulation Grade			Class F(155°C)
Brake Rated Voltage		V	VDC 24±10%
Brake Static Friction Torque		N.m	15
Rotor Moment of Inertia(Brake)		kg.cm2	0.725
Current Consumption		A	0.59
Brake Weight	W	kgw	1.7
Motor Operating Temperature	T	°C	0~40
Motor Operating Humidity	RH	%	<90
Motor Reserve Temperature	T	°C	TRUE
Motor Reserve Humidity	RH	%	<90

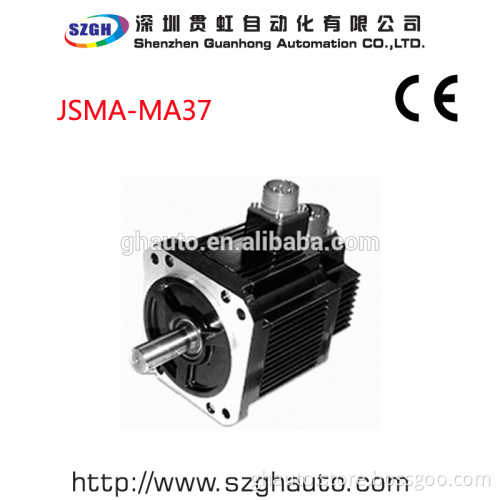

  Product picture:

    Mechanical Dimensions (mm) :     Wiring diagram:   Packaging & Shipping   Package: Packing detail: 1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets 2.Commercial packing: plastic bag+ foam boxes + carton 3.As the clients' requirement Delivery Detail: Normally ready goods and stock within 2-5days     Our Services • Certified actual products - We have a zero-tolerance policy for asset recovery vendors.   • Lowest package prices -Always offer lower price than other companies.   • Professional technical engineer team- possible fastest response and support to client’ application demand.   • Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, SZGH promise to refund.   • Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.   • Free payment mode by T/T, L/C, western union and Paypal can be available. We can provide total control system!   Company Information About our company: Website in Alibaba: http://ghauto.en.alibaba.com/  Official Website: http://www.szghauto.com/          Shenzhen Guanhong Automation CO.,LTD (Formerly known as 'Shenzhen Guanhong Automation Technology Co.,Limited(Built in 19 November 2010)') is one of the leading CNC & automatic company in China, specialized in designing projects, marketing, and oversea trading, having extensive experience in CNC package solution, Our focus has been on providing the high quality of Lathe CNC system, Milling CNC system,  Engraving CNC system, AC servo motor & driver,  TECO servo motor&driver, Stepper motor & driver, Closed stepper motor &driver, Gear reducer. We has professional technical team, strictly product test for high quality guarantee, very competitive quotation, specially we has flexible and convenient payment mode and low cost delivery solution for clients. Our company tenet “Quality is the life of enterprise “, Your satisfy is our greatest achievement.
