100W ac Servo Motor

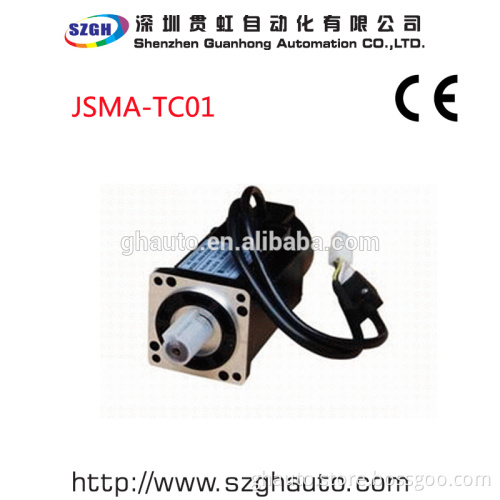

100W ac Servo Motor       Product Description   JSMA-TC01 is 100W,0.318NM,3000rpm AC Servo Motor, it is small type in TECO motor series , wide of application in all of automatic equipment.                  Specifications   :

Specification/Servo Motor Series	Symbols	Unit	JSMA-TC01
Matched Driver			10A
Rated Output Power	PR	W/KW	100W
Rated line voltage	VT	V
Rated Torque	TR	N.M	0.318
Rated Armature Current	IR	A	1.1
Rated Rotation Speed	NR	rpm	3000
Peak Torque At Stall	Tmax	N.m	0.95
Peak Armature Current	Imax	A	3
Torque Constant	KT	N.m/A
Voltage Constant Per Phase	KE	V/k.rpm
Rotor Moment Of Inertia	JM	kg.cm2	0.043
Anti-electric(@1800rpm)	VEMF	Volts
Phase Resistance	Ra	Ω
Inductive Impedance	La	mH
Mechanical Time Constant	Tm	ms
Electrical Time Constant	Te	ms
Weight	W	kgw	0.98
Insulation Grade			Class F(155°C)
Brake Rated Voltage		V	VDC 24±10%
Brake Static Friction Torque		N.m
Rotor Moment of Inertia(Brake)		kg.cm2
Current Consumption		A	0.33
Brake Weight	W	kgw
Motor Operating Temperature	T	°C	0~40
Motor Operating Humidity	RH	%	<90
Motor Reserve Temperature	T	°C	TRUE
Motor Reserve Humidity	RH	%	<90

    Feature:           Mechanical Dimensions (mm)  Wiring diagram     Packaging & Shipping 1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets 2.Commercial packing: plastic bag+ foam boxes + carton 3.As the clients’ requirement Delivery Detail: Normally ready goods and stock within 2-5days   Our Services • Certified actual products - We have a zero-tolerance policy for asset recovery vendors.   • Lowest package prices -Always offer lower price than other companies.   • Professional technical engineer team- possible fastest response and support to client’ application demand.   • Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, SZGH promise to refund.   • Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.   • Free payment mode by T/T, L/C, western union and Paypal can be available. We can provide total control system!   Company Information About our company: Website in Alibaba: http://ghauto.en.alibaba.com/  Official Website: http://www.szghauto.com/          Shenzhen Guanhong Automation CO.,LTD (Formerly known as 'Shenzhen Guanhong Automation Technology Co.,Limited(Built in 19 November 2010)') is one of the leading CNC & automatic company in China, specialized in designing projects, marketing, and oversea trading, having extensive experience in CNC package solution, Our focus has been on providing the high quality of Lathe CNC system, Milling CNC system,  Engraving CNC system, AC servo motor & driver,  TECO servo motor&driver, Stepper motor & driver, Closed stepper motor &driver, Gear reducer. We has professional technical team, strictly product test for high quality guarantee, very competitive quotation, specially we has flexible and convenient payment mode and low cost delivery solution for clients. Our company tenet “Quality is the life of enterprise “, Your satisfy is our greatest achievement.
