High Performance With DIP Switch Closed Loop Stepper Motor Driver

High Performance With DIP Switch Closed Loop Stepper Motor Driver     Feature 1) External adjustable microstepping function (New) 2) CCW and CW adjustable and easy operation motor’ forward and reverse(New) 3) Full closed loop control 4) Encoder 1000PPR 5) Nearly 100% output torque 6) Fast response, high speed 7) Input under position control mode: A. Pulse+ directionB.  Pulse +negative directionC. Dual pulseD.  Communication 8) Optical isolation servo reset input interface ERC 9) Optical isolation alarm output interface ALM 10) Current loop width: (-3dB) 2KHz (typical value ) 11) Velocity loop width:500Hz (typical value) 12) Position loop width:200Hz (typical value) 13) Encoder input interface: differential input (26LS32) 14) Can download parameter with RS232 cable or text display. 15) Protection for over current, over voltage, under voltage, over heat, over speed, over proof. 16) Green LED means on, red LED means protection or in fault status.     Specification Closed Loop Stepper Driver (Easy Servo Driver) inherit favored features of both open loop stepper and brushless servo drives,in much lower cost, no hunting, no overshooting, almost zero settling time,compatible with almost Closed Loop Stepper Motor for most applications.

Model	phase	Control Type	Power			Configuration	Matching Motors
			Voltage(V)		Current(A)		(NEMA)
			AC	DC	Peak
2HSS57	2 phase	Step & Dir / Pulse &Pulse		24-48	6	RS232	23

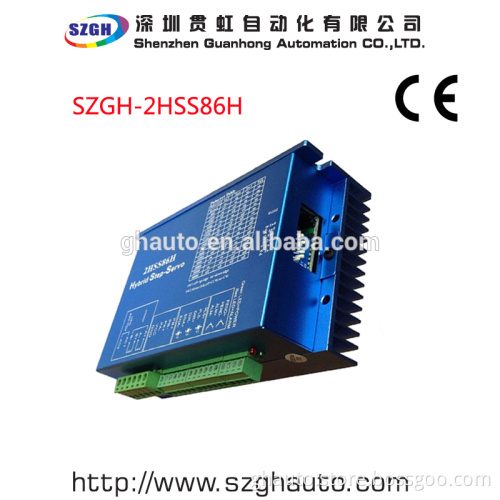

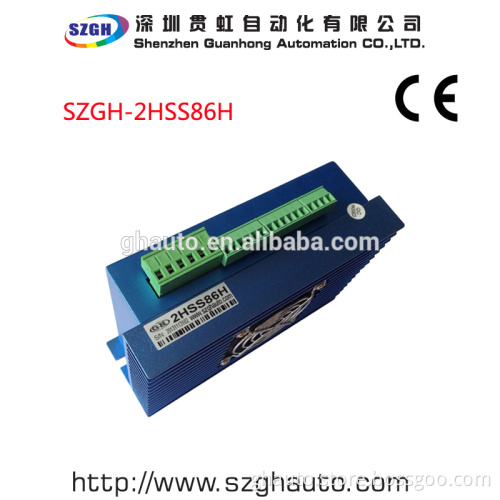

2HSS86H	2 phase	Step & Dir / Pulse &Pulse	50-80	24-110	7	RS232	34

      Wiring Diagram   Mechanical Dimensions (mm)      Packaging & Shipping 1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets 2.Commercial packing: plastic bag+ foam boxes + carton 3.As the clients’ requirement Delivery Detail: Normally ready goods and stock within 2-5days     Our advantage:   • Certified actual products - We have a zero-tolerance policy for asset recovery vendors.   • Lowest package prices -Always offer lower price than other companies.   • Professional technical engineer team- possible fastest response and support to client’ application demand.   • Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, SZGH promise to refund.   • Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.   • Free payment mode by T/T, L/C, western union and Payply can be available.     Our Sales   Company Information About our company: Website in Alibaba: http://ghauto.en.alibaba.com/  Official Website: http://www.szghauto.com/          Shenzhen Guanhong Automation CO.,LTD (Formerly known as 'Shenzhen Guanhong Automation Technology Co.,Limited(Built in 19 November 2010)') is one of the leading CNC & automatic company in China, specialized in designing projects, marketing, and oversea trading, having extensive experience in CNC package solution, Our focus has been on providing the high quality of Lathe CNC system, Milling CNC system,  Engraving CNC system, AC servo motor & driver,  TECO servo motor&driver, Stepper motor & driver, Closed stepper motor &driver, Gear reducer. We has professional technical team, strictly product test for high quality guarantee, very competitive quotation, specially we has flexible and convenient payment mode and low cost delivery solution for clients. Our company tenet “Quality is the life of enterprise “, Your satisfy is our greatest achievement.
