SZGH-050M2 AC servo driver

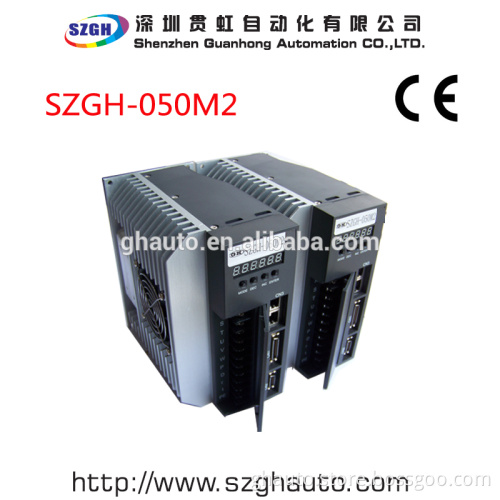

SZGH-050M2 AC servo driver Product Description   SZGH-050M2 AC servo driver is specially matched with 1.8kw to 2.6Kw servo motor with 220V , it can be high speed position, fast speed to stabilization feature ect,. along with vibration reduction control, command tracking control, control mode changeable function, make the driver excellent in different kinds of industry. Specifications

Control technique	3 phase full wave rectification, SVPWM space vector control
Input power	AC220V -15%~10%
Feedback	incremental 1000 wire/2500 wire photoelectric rotary encoder
Speed ratio	1:5000
Speed volatility	<±0.03%within rated torque
Pulse command input	pulse type	pulse+direction, pulse+pulse A+B 90°orthogonal pulse
	pulse form	differential drive open collector
	pulse frequency	differential drive:500k open collector:200K
Analog command input	- 10V~10V, input resistance 10k∩
Pulse output signal	encoder ABZ phase differential output Z signal collector output
Input signal	servo enable alarm clear position forbid forward limit reversal limit,control mode
Output signal	locate finish , servo alarm , servo ready , brake output, zero output
Protection function	over current ,over voltage , low voltage , overload , overheat,phase loss,over speed , encoder unusual,module unusual
Monitoring function	rotation speed , current position ,current pulse frequency , position deviation , motor torque , motor current , analog input value etc.
Communication function	by RS232/485 to communicate with PC, modify real time parameters, monitor of servo system running status
Work environment	using/storage temp	45°C/-40°C-55°C
	using/storage humidity	40%-80%/90%no dew condensation
	no dew condensation	4.9m/s2/19.6m/s2
	altitude	1000m, above 1000m please derate to use
	air pressure	86-106kpa

  Feature Mechanical Dimensions (mm) Wiring Diagram       Packaging & Shipping 1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets 2.Commercial packing: plastic bag+ foam boxes + carton 3.As the clients’ requirement Delivery Detail: Normally ready goods and stock within 2-5days   Our Services • Certified actual products - We have a zero-tolerance policy for asset recovery vendors.   • Lowest package prices -Always offer lower price than other companies.   • Professional technical engineer team- possible fastest response and support to client’ application demand.   • Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, SZGH promise to refund.   • Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.   • Free payment mode by T/T, L/C, western union and Paypal can be available. We can provide total control system! Company Information About our company: Website in Alibaba: http://ghauto.en.alibaba.com/  Official Website: http://www.szghauto.com/          Shenzhen Guanhong Automation CO.,LTD (Formerly known as 'Shenzhen Guanhong Automation Technology Co.,Limited(Built in 19 November 2010)') is one of the leading CNC & automatic company in China, specialized in designing projects, marketing, and oversea trading, having extensive experience in CNC package solution, Our focus has been on providing the high quality of Lathe CNC system, Milling CNC system,  Engraving CNC system, AC servo motor & driver,  TECO servo motor&driver, Stepper motor & driver, Closed stepper motor &driver, Gear reducer. We has professional technical team, strictly product test for high quality guarantee, very competitive quotation, specially we has flexible and convenient payment mode and low cost delivery solution for clients. Our company tenet “Quality is the life of enterprise “, Your satisfy is our greatest achievement.
