Planetary Gear Boxes/ gear head

  Planetary Gear Boxes/ gear head Product Description    Planetary Gear Boxes is suitable for combination with 50W -4000W servo motor. It has very high precision and good performance. Acordding to different size and ratio, there is PL70,PL80,PL90 and PL120 , and the reduction ratio range is 1 to 100.

Feature:
1. Compact and lighter	2. Integral gear ratio
•  Weight from 1.5 kg to 80 kg (approximate);	•  Ratio from 3 to 1000;
•  Length from 90.5mm to 250mm;
3. Small backlash and all S type gear reducer are provided with tiny backlash within 10 min-arc.
4. Suitable for combination with any kind of servo motor.	5.Total enclosed design



Specification for Gear Reducer

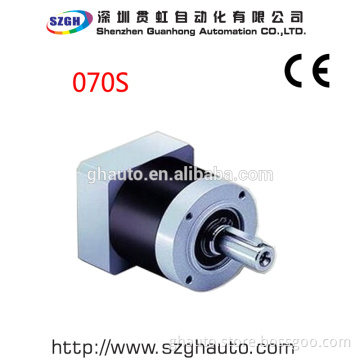

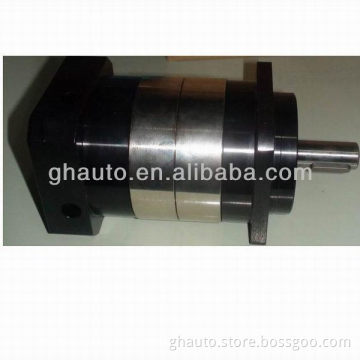

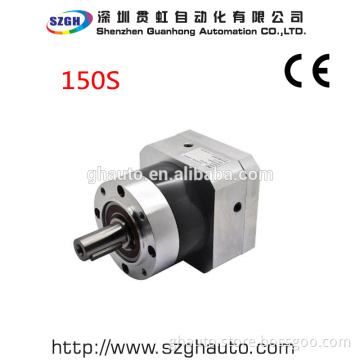

Model	070S	090	090S	120S	150	150S	180S
Continuous output torque (Kgf*m/Nm)	3.4/34	8.5/84	8.5/84	23.4/230	53/520	53/520	114/1120
Max.torque of load (Kgf*m/Nm)	2.5 times torque
Radius load on output shaft (kgf)	51	96	298	615	863	863	1331
Gear reducer inertia (Kg*cm2)	0.306	0.73	0.73	1.09	3.09	3.09	9.35
Range of output shaft of servomotor diameter	within 14	within 19	within 19	within 24	within 42	within 42	within 55
L1 weight (kg)	1.6	3.3	2.8	5	16.4	15.2	37
L2 weight (kg)	2.1	4.3	3.4	7.2	17.6	16.2	46.4
L3 weight (kg)	2.6	5.3	4	8.2	18.9	18.5
Lead weight	0.12	0.65	0.65	1	1.5	1.5	2.9



Ratio Table of Gear Reducer
Model	L1	L2		L3
070S	3,4,5	9,12,15,20,25		27,36,45,48,60,75,100,125
090/090S/120S	3,4,5,7	9,12,15,20,21,25,28,35,49		45,48,60,75,80,100,125,140,175,245,343
150S	3,5,7,10	9,12,15,20,,25,28,30,40,50,70		60,75,80,100,150,200,300,400,500,700,1000
180S	3,5,7,10	9,15,21,25,30,35,49,50,70,100
