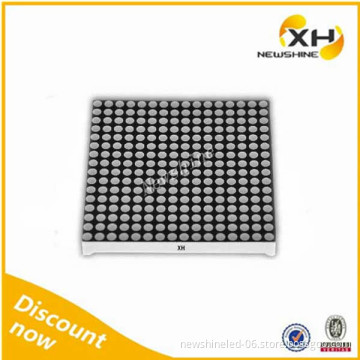

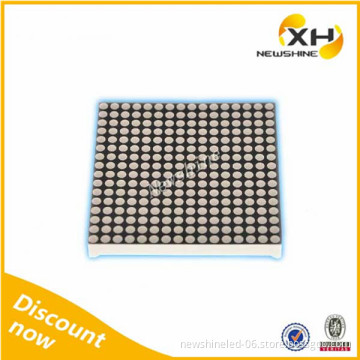

Wholesale 16*16 dot matrix display Red color LED 40mm*40mm

Wholesale 16*16 dot matrix display Red color LED 40mm*40mm,1.5Inch LED dot matrix module Application: 1)    Semi-outdoor/outdoor or indoor using, elevators/lift, led strip display, clock display and other different display areas of digital instruments, display screen modules, mechanical & medical equipments. 2)    Customized LED Panel Displays: Application for household appliance, special using LED     Specification/Parameter: 1)    Size Available:  Φ1.9mm  Lens/Epoxy: Water Clear, Diffused color, Red color, Green color etc. 2)    Emitted Color Available Single: Red, Orange, Yellow, Green, Blue, Yellowish-Green, White color LED or other customized combination 3)    Characteristics: a.     High luminous intensity output b.    Low voltage and current operation c.     Ultra-low power consumption, Solid-state lighting chips inside, SSL. d.    IC compatible, easy mounting & installation on PCB/sockets e.    Meet TUV ROHS certifications f.     Providing free sample for testing for common models Size & Dimension/Pins Layout, Circuit Diagram   Technical Specification

1.9mm Round Led (with Flange)(H4.0mm)			Technical Specification
Part Number	Chip Material	Lens Color	Emitting Color	Forward Voltage(V)		Dominant Wave Length(nm)		Luminous Intensity(mcd)	Reverse Current(µA)	Viewing Angle(Deg)	Test Condition
				MIN	MAX	MIN	MAX		MAX	2 θ1/2	IF(mA)
XH-16163BBW	InGaN	Water Clear	Blue	2.8	4.0	455	475	1000-8000	10	20	20
XH-16163BCW	InGaN	Water Clear	Green	2.8	4.0	500	535	1000-25000	10	20	20
XH-16163BWW	InGaN	Water Clear	White	2.8	4.0	/	/	3000-25000	10	20	20
XH-16163BRW	AlGaInP	Water Clear	Red	1.8	2.5	620	640	1000-20000	10	20	20
XH-16163BOW	AlGaInP	Water Clear	Orange	1.8	2.5	600	615	1000-10000	10	20	20
XH-16163BYW	AlGaInP	Water Clear	Yellow	1.8	2.5	585	595	1000-10000	10	20	20

  Related 5*7 5*8 8*8 16*16 LED dot matrix display component modules   [--1.9mm 8*8 LED Dot Matrix XH-7088, 2.0CM*2.0CM] [--2.9mm/3.0mm 5*7 LED Dot Matrix XH-12057] Image as above.   [3.0mm 8*8 LED Dot Matrix XH-12088, 3.2CM*3.2CM]   Major technological process of NEWSHINE LED dot matrix/digit/alphanumeric displays Shipping Solutions with NEWSHINE 1)    DHL/UPS/FedEx/TNT/EMS/China Post, good discount for Door-to-Door transportion; 2)    Client/Customer choose shipping import & export agent/forwarder allodium. Also, by AIR/by SEA are all available for future cooperation; Drop-Shipping is supportable.       NEWSHINE Service Online/Offline A.      Payment Terms 1)       PAYPAL, Western Union, T/T for samples 2)       ESCROW, Ali-Secure, L/C, OA are negotiable 3)       Drop-shipping available; Agent/Proxy are welcome!   B.      Any inquiried will be replied within 24 hours   C.      Professional manufacturer; Welcome to visit our website Http://www.newshineLED.com   D.      OEM/ODM service available 1)       Pad printing on the display/dot matrix components; 2)       Customized panel display/design available; 3)       Packaging design offered; 4)       You think it , we make it.   E.       High quality, reasonable/competitive price, fast lead time   F.       After-sale Service 1)       All displays/dot matrix led components had been full checked, one by one testing before packaging; 2)       All NEWSHINE products are free from maintenance within warranty/guarantee period.   G.      Quick Delivery Samples within 1 week, 2-4 weeks for batch goods[commonly based on exact quantity].       For more or any questions, contact us freely via EMAIL or other IM! Energy Saving Specialist— SHENZHEN NEWSHINE OPTICS CO.,LTD
