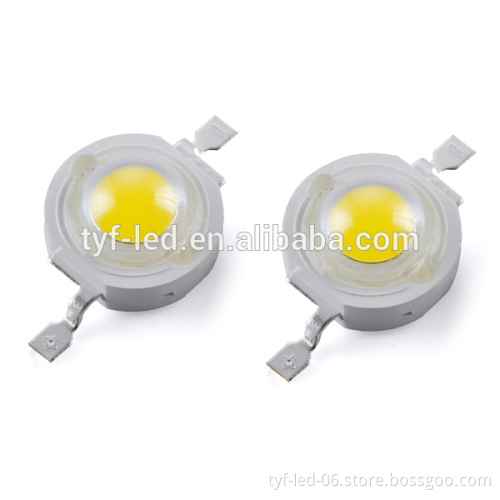

2015 hot sale 1W 2W 3W Epistar LED module

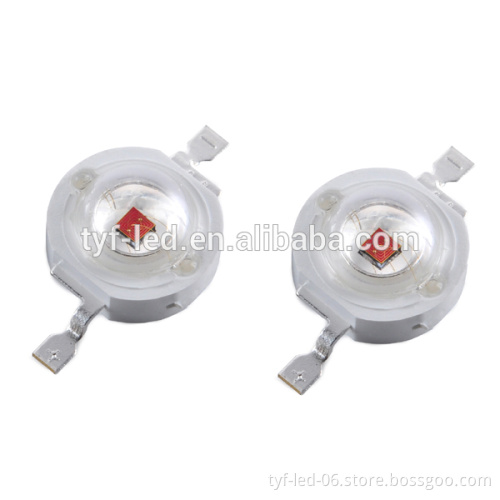

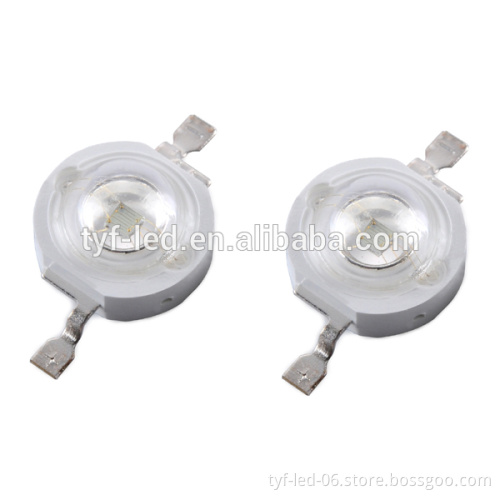

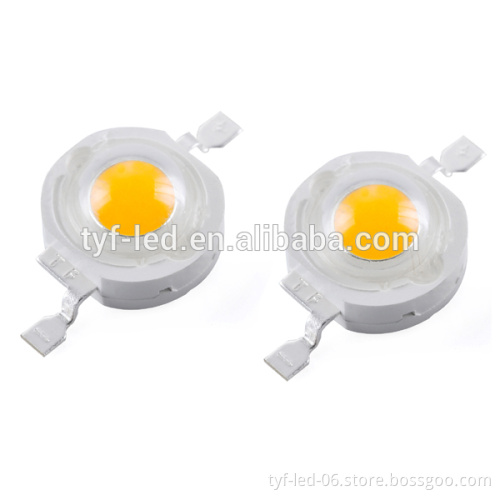

Hot sale Good price High Lumen Epistar LED Module   Product Description:   High power Epistar LED Module basic description:   Chip Brand: 100% genuine Bridgelux Epistar Sanan chips 130-160lm/w 100-130lm/w 100-130lm/w 99.99% pure gold wire CE Rohs Certification Power: 1W/2W/3W CRI: >70 Pure copper base View angle: 120/140 degrees White LED(warm/nature/cold) Red IR yellow amber blue pink green purple UV Operating temperature: 0 to 85°C Storage temperature: -35 to 145°C

Dimension	Picture	Application

  TYF product line: 1.High power LED 1w-3w 2.COB LED 1w-80w 3.Intergrated COB LED 10w-150w 4.LED Lamp: LED Floodlight & LED high bay light **CRI normally is 70Ra,we can offer 70-95Ra. CRI can be within 1500-20000k.

High power series	power	CCT	Luminous flux	voltage(v)	current(mA)	LED chip
	1w/3w	3000-3200	90-140	3.0-3.4	350	Bridgelux 45Mil
		4000-4300	90-140
		6000-6500	90-140
	1w	customized	90-140	3.0-3.2	350	Epistar35Mil
3-80w cob led chip series	power	CCT	Luminous  flux(Min)	voltage(v)	current(mA)	series-parallel connection
	3w	customized	240-360	9-10.2	320	3 series 2 parallel
	5w	customized	400-800	15-17	320	5 series 2 parallel
	7w	customized	620-850	21-23.8	320	7 series 2 parallel
	10w	customized	850-1150	30-34	320	10 series 2 parallel
	15w	customized	1300-1800	45-51	320	15 series 2 parallel
		customized	1300-1800	30-34	480	10 series 3 parallel
	20w	customized	1750-2200	60-68	320	20 series 2 parallel
		customized	1750-2200	30-34	640	10 series 4 parallel
	24w	customized	2100-2875	72-81.6	320	24 series 2 parallel
	30w	customized	2550-3500	30-34	960	10 series 6 parallel
	40/50/60	customized	3350-6450	customized	customized	15-18series x parallel
	LED chip: Epistar 17*34mil.  serial to parallel mode can be special designed.
10-200w integrated led chip	power	CCT	Luminous flux(Min)	voltage(v)	current(mA)	series-parallel connection
	10w	customized	800-1080	28-31	350	9 series 1 parallel
	30w	customized	2700-3600	30-34	1050	10 series 3 parallel
	100w	customized	9000-12000	30-34	3500	10 series 10 parallel
	LED chip: Bridgelux 45Mil,Epistar 35Mil and so on. serial to parallel moidel can be special designed.

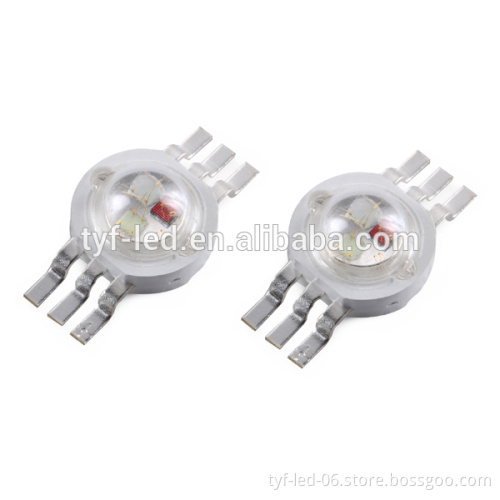

  Packaging & Shipping     Double package with 5 layer paper box for 1w/2w/Epistar LED Module     Reel                                                                      Plate       Tube    Our Services   1.2/3 years warranty 2.Within 24h reply 3.Professional sales. 5.3 years warranty 6.5 years technical surport 7.Quick delivery 1-3days for samples Company Information Shenzhen Tongyifang Optoelectronic technology co.,Ltd established in 2007, professional manufacturer engaged in COB LEDs, 1W high power and business lighting. 6000 Sqm factory is located in Shenzhen. 25 engineers in charge of developing and researching, whom can provide you the best technical support. Our company has introduced a series of advanced equipment including AMS & KS auto Machines that imported from USA Rohs and LM80 for our RGB Infrared Integrated Epistar LED Module , while approved CE Rohs FCC SAA TUV UL for our led flood light & led high bay lamps. We also welcome OEM and ODM orders.    FAQ   1.Trade Terms? --FOB, CIF, EXW.
2.Payment Terms? --T/T, Paypal, Western Union, MoneyGram, Ali escrow, L/C for large amount. 3.Delivery Terms? --Within1-3 days for sample, 3-7days for buck order.
4.Shipment Terms? --Express, Air, Ship.
5.Sample Terms? --MOQ: 10PCS

Sales Engineer:Penny Peng--Your success is our business.

E-mail:sales09(a)tyf-led.com Skype:gladys060836(24H online) Whatsapp:0086 18973682184 Epistar LED Module from TYF will be your best choice!
