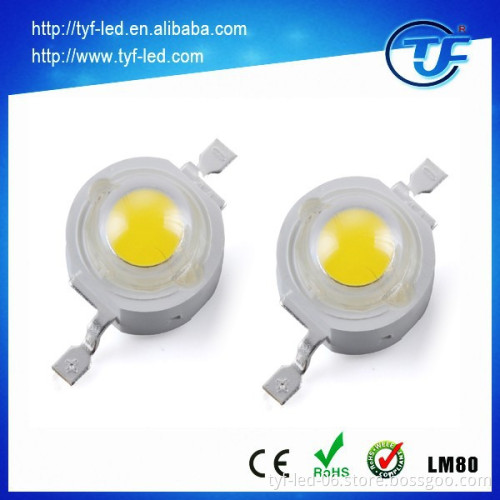

LM80 High Lumen Bridgelux 45mil chip 1w 3w High Power LED

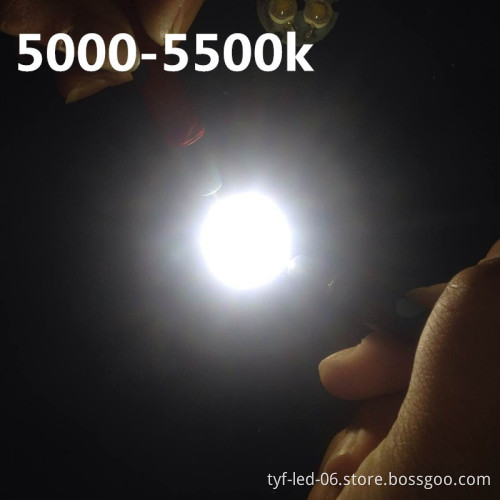

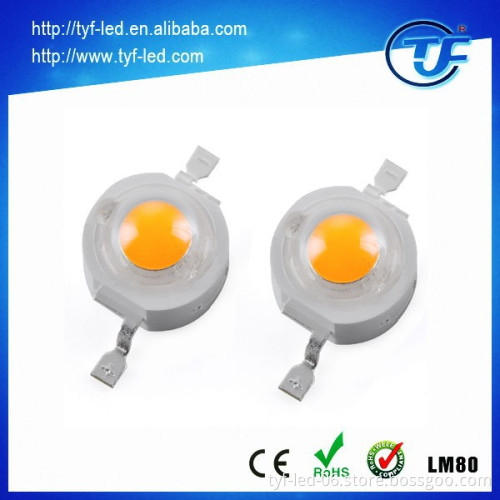

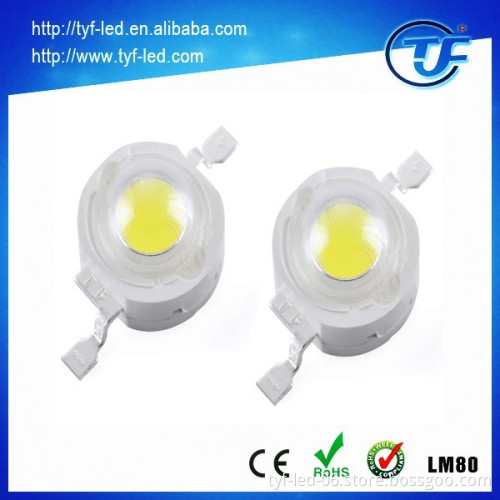

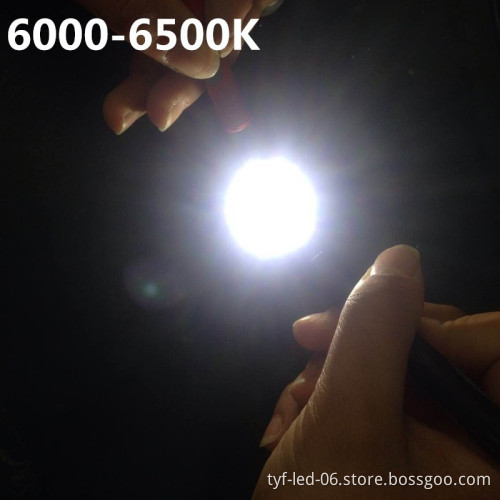

  High Lumen Bridgelux 45mil chip 1w 3w High Power LED   Product Description    Features for High Power LED:   High efficacy, high lumen, LM-80 passed 70Ra(standard) and 80Ra, Which is qualified for outdoor lighting, industrial lighting Super thin phosphor film technology Standard Normal PC lens suit for manual welding or 160°C thermostat platform welding;High Temper PC lens suitable for reflow oven welding 2700-3000 3000-3200K; 120-130LM/W 4000-4300K; 140-150LM/W 6000-6500K 5500-6000K; 140-150LM/W (Other CCT can design) 3 years warranty 3-5 days delivery for 200k order      TYF LED CHIPS SERIES:   1. 0.5W SMD LED 2835 and 1W SMD 3030  2. 1w high power led with Red, Blue, Green, Yellow, Amber, Pink single color and 3W RGB led 3. 10-200w led COB for flood light,street light and high bay light,etc 4. Indoor CoB LED for downlight 5. Flip chip CoB for indoor & outdoor lighting 6. AC COB chips    Dimension:  Characteristics of 1w high power led 1. Absolute Maximum Rates

Item	Symbol	Value	Unit
DC Forward Current	IF	350	mA
Pulsed Current	IFP	700	mA
Reverse Voltage	VR	-5	V
Junction Temperature	Tj	140	°c
Operating Temperature	TOPR	-30~+60	°c
Storage Temperature	TSTG	-35~+100	°c
Beam Angle	2Θ1/2	120	°
Electrostatic Limit	ESD	2000	V
Soldering Temperature		350℃/3-5S

  2. Optical Characteristics

Parameter	Chip	Condition	CRI	Min.	Typ.	Max.	Lm/W	Unit
Forward Voltage	/	IF=350mA,Ta=25°c	/	3.0	3.25	3.4	/	V
Luminous   Flux	Bridgelux 45mil	CCT:6000K	>80	125	130	135	>115	Lm(Lm/W)
			>70	140	145	150	>135
		CCT:4000K	>80	125	130	135	>115
			>70	140	145	150	>135
		CCT:3000k	>80	115	120	125	>105
			>70	130	135	140	>120

  The detail about 1w high power led       Applications for 1w high power led 1W high power led is widely used on led bulb,led wash light,led spotlight,led street light,led high bay light and so on.

  Packaging & Shipping Package: Customer can choose Roll package(1k pcs per a roll),Tube package(50pcs per tube) or TYF standard package(50pcs per plate) For Standard Package,pls see below: (1)35*16*16.5cm 3000pcs per carton;   (2)37*36.5*19cm 6000pcs per carton;    (3)43*35.5*36 16000pcs per carton;    (4)In addition,the package can be customized as inquire.   Our  1w high power led are all shipped by air normally, time-sensitive,shipped by DHL,FedEx,TNT,UPS and so on.
Samples in stock,we can send them in 2 days,and orders normally is sent out by 5-7days,or according to the quantity.            Our Services 1. 3 years warranty
2. 5 years technical service team
3.professional sales team
4.Aiming at the consult of "high quality,zero defect",give you the best quality,best service.  Company Information 1.Advantages of TongYiFang 1> We have advanced Auto "ASM"machine,Auto "KS"machine,Auto light-division and Color-division machines to make various specification high power,high lumens,super bright white LED,all kinds of the 1w high power led  and the Module LED light source.
  2> We have obtained ISO9001:2008 quality management system certification,and Strong R &D team with 16 excellent engineers with years experience on LED industry,  1w high power led source have got the CE and the ROHS and GSG  LM80 certification.   3>We have got the honors of "COB LEDs  expert","Shenzhen High-Tech Enterprise","National High-Tech Enterprise" etc.
  4>We are top 50 in China and top 3 in Shenzhen,so we have the best quality and the best service for you about the products of 30W  1w high power led .
  5>We are aiming the priciple of "High quality,zero defect" all the time,and we have more than 50 patents.
  6> Welcome to visite our fatory anytime.      Guangzhou LED lighting Exhibtion :         2.Certifications:

  FAQ   1.Prices conditions Price can be FOB, CIF ,EXW, or With taxes
2.What will be the delivery time and what will be the mode of payment? We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes The payment can be T/T transaction,Letter of credit,Paypal,Western Union
3.Shipment will be over sea or by air? Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn’t too heavy for the transportation
4.Could you please send me the sample for the same.So that i could see and analyze its quality? Yes.We can send samples first,samples need to be charged if the value is higher
5.Will there be any contract for this business or trade? Yes,there is a normal contract before the order is placed
  6. How will invoice be generated? Invoice can be generated with formal contract with company seals

Reception and Factory view:

Shenzhen TYF Optoelectronic Co., Ltd Specialize in 1w EMC 2835,1w EMC 3030,High power led,COB,led flood light and led high bay light. Promotion on this month. Contact Penny Now !!!   skype : gladys060836 Email: penny(a)tyf-led.com Whatsapp: +86 18973682184
