2014 hot sale bridgelux Epistar 20W Integrated COB LED

Specifications 20W Integrated COB LED

1.Factory direct sale

2.CE,RoHs&LM80(Energy Star)

3.3 years warranty

4.High quality,zero defect

2014 hot sale bridgelux Epistar 20W Integrated COB LED   Product Description

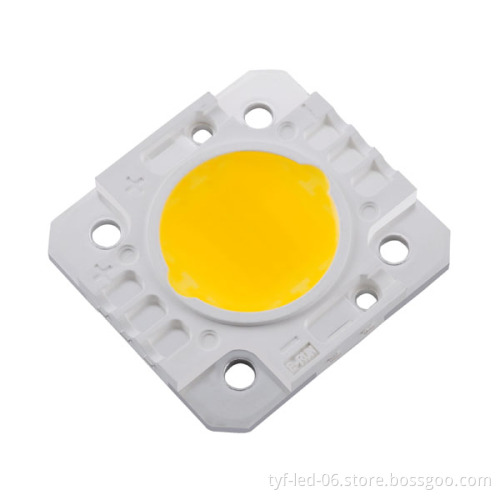

Details of 20W Integrated COB LED

Name	20W Integrated COB LED
Power	20w
CCT(k)	1500k-25000
Lumen(lm)	1800-2200
Circuit Structure	10 series 2
Voltage(V)	30-34
Current(mA)	700
CRI(Ra)	>70
Chips	Bridgelux/Epistar
Warranty	4 years
Certification	CE&FCC&RoHs

Application of 20W Integrated COB LED

20W Integrated COB LEDs are widely used on outdoor lamps,like,led high bay light,led flood light,led street light,and so on.



Same series products of 20W Integrated COB LED


3w - 30w cob led chip series	power	CCT(k)	Luminous flux(lm)	voltage(v)	current(mA)	Circle Structure
	3w	1500-25000	240-360	9-10.2	320	3 series 2 parallel
	5w	1500-25000	400-800	15-17	320	5 series 2 parallel
	7w	1500-25000	620-850	21-23.8	320	7 series 2 parallel
	10w	1500-25000	850-1150	30-34	320	10 series 2 parallel
	15w	1500-25000	1300-1800	45-51	320	15 series 2 parallel
		1500-25000		30-34	480	10 series 3 parallel
	20w	1500-25000	1750-2200	60-68	320	20 series 2 parallel
		1500-25000		30-34	640	10 series 4 parallel
	24w	1500-25000	2100-2875	72-81.6	320	24 series 2 parallel
	30w	1500-25000	2550-3500	30-34	960	10 series 6 parallel
10-100w integrated led chip	power	CCT	Luminous flux(lm)	voltage(v)	current(mA)	Circle Structure
	10w	1500-25000	800-1080	28-31	350	9 series 1 parallel
	30w	1500-25000	2700-3600	30-34	1050	10 series 3 parallel
	100w	1500-25000	9000-12000		3500	10 series 10 parallel

  1.we have single cob 3w-100w,integrated cob 10w-200w,and high power led 1w-3w
2.We have CCT:1500K-25000K,single color,red,blue,green,yellow,purple,IR,UV,and full color,RGB.
3.We can service for OEM/ODM.

      Packaging & Shipping   Our products are all shipped by air normally, time-sensitive,shipped by DHL,FedEx,TNT,UPS and so on.
Samples in stock,we can send them in 2 days,and orders normally is sent out by 5-7days,or according to the  quantity.

        Our Services   1. 3 years warranty
2. 5 years technical service team
3.professional sales team
4.Aiming at the consult of "high quality,zero defect",give you the best quality,best service.   Company Information
1.Advantages of TongYiFang

1> We have advanced Auto "ASM"machine,Auto "KS"machine,Auto light-division and Color-division machines to make various specification high power,high lumens,super bright white LED,all kinds of the COB LED and the Module LED light source.

2> We have obtained ISO9001:2008 quality management system certification,with our excellent engineers and hard working work's effort,our LED light source have got the CE,FCC and the RoHs certification,and we are applying for the certification of Energy Star.

3>We have got the honors of "LED energy saving expert","Shenzhen High-Tech Enterprise","National High-Tech Enterprise" etc.

4>We are top 50 in China and top 3 in Shenzhen,so we have the best quality and the best service for you about the products of 20W Integrated COB LED.

5>We are aiming the priciple of "High quality,zero defect" all the time,and we have more than 50 patents.

6> Welcome to visite our fatory anytime.



2.Certifications of 20W Integrated COB LED

1 It is recommended to store the  products in the following conditions  Humidity: 60% R.H. Max.  Temperature: 5°C~30°C(41°F~86°F)   2  Shelf life in sealed bag: 12 month at  <5°C~30°C and <30% R.H. after the package   is opened, the products should be used within 24hr s or they should be kept stored at <20% R.H. with zip-lock sealed.


  FAQ 1.Prices conditions Price can be FOB, CIF ,EXW, or With taxes
2.What will be the delivery time and what will be the mode of payment? We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes The payment can be T/T transaction,Letter of credit,Paypal,Western Union
3.Shipment will be over sea or by air? Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn’t too heavy for the transportation
  4.Could you please send me the sample for the same.So that i could see and analyze its quality?  Yes.We can send samples first,samples need to be charged if the value is higher
5.Will there be any contract for this business or trade? Yes,there is a normal contract before the order is placed

6. How will invoice be generated? Invoice can be generated with formal contract with company seals
Guidance for customers

We apecialized in COB LED 3-100w, integrated cob 10-200w,and high power 1-3w. If you are interested in our products,please call me or email me,that would be highly appreciated,thanks. Skype:tyf-led02 Click the pictures can move into our website on Alibaba,to see all products in our company,thanks.
