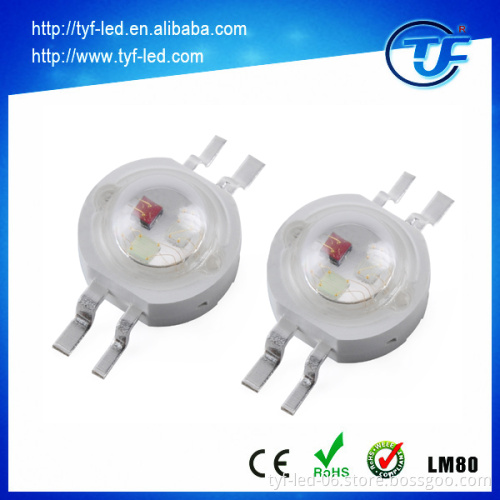

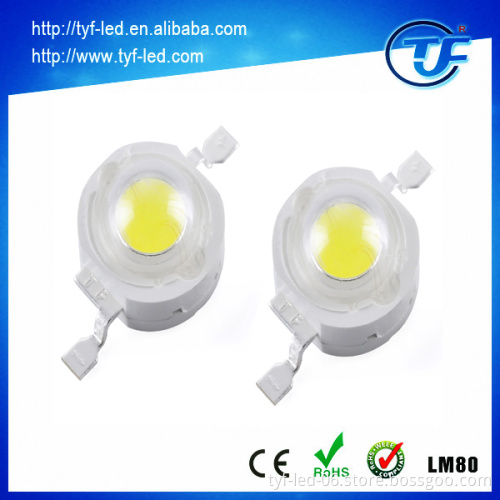

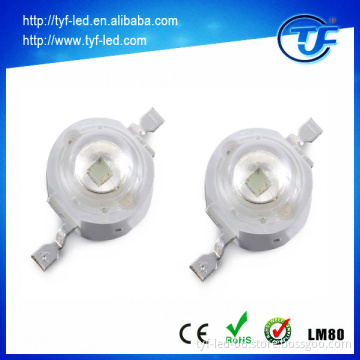

High power LED diode chips cold white 120lm-140lm 1w led chip

High power LED diode chips cold white 120lm-140lm 1w led chip Product Description

Item	Specification	APPLICATION: Widely used in indoor & outdoor
Product name	1w led chip
Part No.	TYF-1w led chip
Color	warm white, natural white, pure white,cool white, red, yellow, green, blue,orange,purple and other colors you want
Chip brand	Epistar 35Mil taiwan or Bridgelux 45Mil chip
Lumens	120-140lm
Power	1W
Current	350mA
Voltage	3.0-3.4v
CRI (Optional)	>70
	>80
	>90
CCT range	2000-3200k     (warm white)
	4000-4500k     (Natural white)
	5000-6500k     (Pure white)
	>6500k             (Cool white)
Working temperature	-30 °C-+80 °C
Super long lifetime	40,000 Hours long lifespan
Emitting angle	120° degrees
Certification	ISO9001 : 2008 ,CE, Rohs LM80
Joint junction Temp	65-85°C
Warranty	3 years
Place of Origin	Shenzhen, Guangdong, China
Feature	Saving power,High efficiency,High stability
Base Material	Copper

  Same series products of High power LED diode chips cold white 120lm-140lm 1w led chip:

Serises	Power(W)	CCT	Flux(lm) MIN	Flux(lm) MAX	Votage(V)	Current(mA)
Warm White	1	2000-2200	90	140	3.0-3.4	350
	2	2000-2200	160	220	3.1-3.6	500
	1	2500-2700	90	140	3.0-3.4	350
	2	2500-2700	160	220	3.1-3.6	500
	1	3000-3200	90	140	3.0-3.4	350
	2	3000-3200	160	220	3.1-3.6	500
nature white	1	4000-4300	90	140	3.0-3.4	350
	2	4000-4300	160	220	3.1-3.6	500
	1	4300-4500	90	140	3.0-3.4	350
	2	4300-4500	160	220	3.1-3.6	500
	1	4000-4500	90	140	3.0-3.4	350
	2	4000-4500	160	220	3.1-3.6	500
Pure White	1	5000-5500	90	140	3.0-3.4	350
	2	5000-5500	160	220	3.1-3.6	500
	1	5500-6000	90	140	3.0-3.4	350
	2	5500-6000	160	220	3.1-3.6	500
	1	6000-6500	90	140	3.0-3.4	350
	2	6000-6500	160	220	3.1-3.6	500
Cool White	1	6500-7000	90	140	3.0-3.4	350
	2	6500-7000	160	220	3.1-3.6	500
	1	8000-10000	90	140	3.0-3.4	350
	2	8000-10000	160	220	3.1-3.6	500
	1	15000-25000	90	140	3.0-3.4	350
	2	15000-25000	160	220	3.1-3.6	500

    Packaging & Shipping High power LED diode chips cold white 120lm-140lm 1w led chip are all shipped by air normally, time-sensitive,shipped by DHL,FedEx,TNT,UPS and so on. Samples in stock,we can send them in 2 days,and orders normally is sent out by 5-7days,or according to the quantity.         1.Dimension:35*16*16.5cm carton box , quantity of high power led chip:3,000pcs , quantity of integrated led chip  :200pcs; 2.Dimension:37*36.5*19cm carton box ,quantity of high power led chip:6,000pcs , quantity of integrated led chip:400pcs; 3.Dimension:43*35.5*36cm carton box ,quantity of high power led chip:16,000pcs , quantity of integrated led chip:1000pcs; 4.The tube package:50 pcs of high power led chips.   Our Services 1. 3 years warranty 2. 8 years technical service team 3. professional sales team 4. Aiming at the consult of "high quality,zero defect",give you the best quality,best service.    Company Information    Why we can rank top 3 in Shenzhen and 50 in china  in LED AREA? TYF is Shenzhen high-tech enterprise and national high-tech enterprise, we are specialized in high power,high  lumens ,supper bright white LED, all kinds of the COB LED and the module 1w led chip more than 8years.     We have advanced Auto "ASM"machine,Auto "KS"machine,Auto light-division and Color-division  machines.  And can provide above 50KK 1w led chips every month. Many certifications our products have passed, such as ISO9001:2008,  CE, ROHS, GSG  LM80 and others Our products are sold all over the world. And good quality&service are highly appriciated by clients. "High quality,zero defect" is a rule that we always insistant. Still now,we have more than 50 patents. All series products show:   Certifications     FAQ 1. Prices conditions Price of High power LED diode chips cold white 120lm-140lm 1w led chip and other products can be FOB, CIF ,EXW, or With taxes 2. What will be the delivery time and what will be the mode of payment ? We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes The payment can be T/T transaction, Letter of credit,Paypal,Western Union. 3. Shipment will be over sea or by air ?  Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn’t too heavy for the transportation  4. Could you please send me the sample for the same . So that i could see and analyze its quality ? Yes. We can send samples first, samples need to be charged if the value is higher 5. Will there be any contract for this business or trade ? Yes, there is a normal contract before the order is placed 6. How will invoice be generated ? Invoice can be generated with formal contract with company seals   Scan of  factory's picture P.S:  Believe us,believe your choice.High quality waiting for your check. If you have any doubt of 1w led chip , pls contact me freely.
