Super lumens excellent quality 50 watt high power led

Super lumens excellent quality 50 watt high power led   Product Description 50 watt high power led dimension,picture and applications.

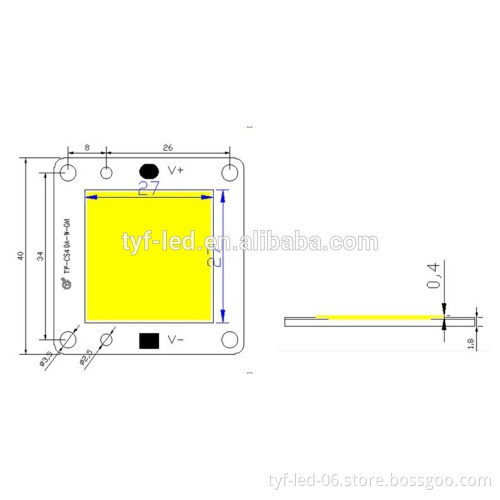

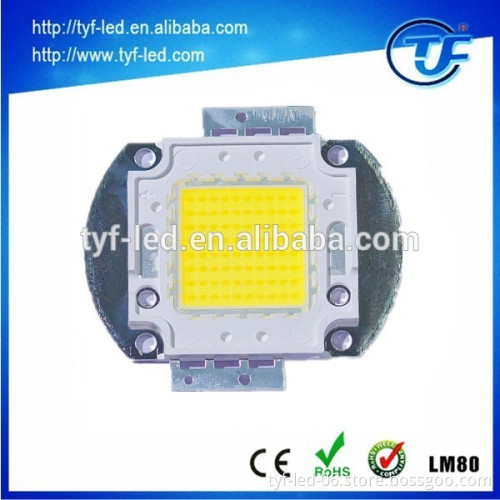

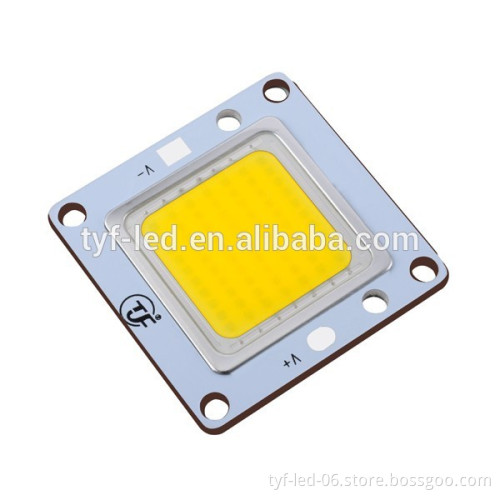

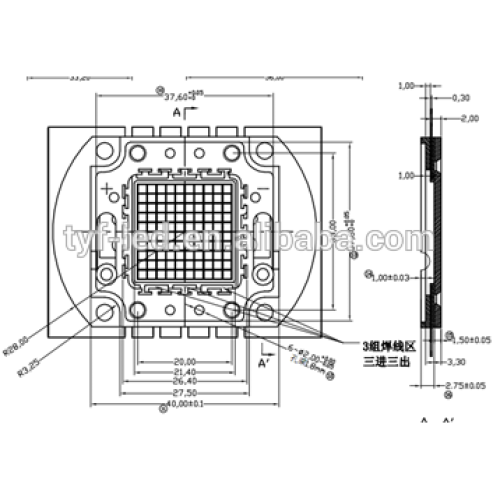

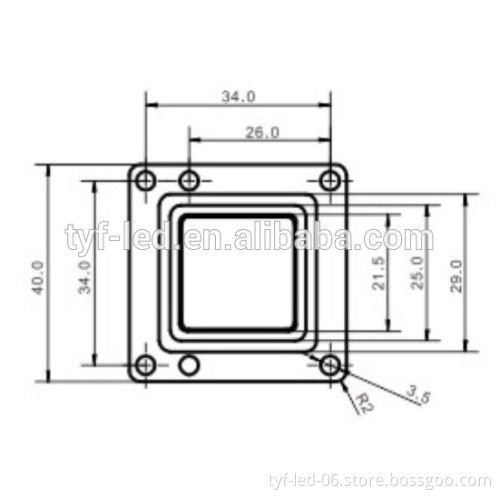

50 watt high power led  pictures	50 watt high power led dimensions	50 watt high power led applications

Detail information about 50 watt high power led.

Project	50 watt high power led specification
Product Name	50 watt high power led
Ability color in this serise	warm white, natural white, pure white,cool white, red, yellow, green, blue,orange,purple and other colors  you want
Chip	Epistar and Bridgelux for normal,any other chip customer required
Luminous Flux ability	Bridgelux 45Mil CRI>70 white 120-140LM/watt, CRI>80 white 100-120LM/watt.High brightness 160LM/Watt is now available;Epistar 35Mil CRI>70 white 100-120LM/watt,CRI>80 white 90-120LM
Power	50W
Normal Luminous Flux	5000-8000LM
Current	1750mA
Voltage	30-34V
CRI (Optional)	>80 >85 >90
CCT range	2800-3200k (warm white) 4000-5000k (Natural white) 5000-6500k (Pure white) >7000k (Cool white)
Working temperature	-20 °C-+40 °C
Super long lifetime	40,000 Hours long lifespan
Emitting angle	120° degrees
Certification	ISO9001 : 2008 CE, ROHS LM80
Lowest thermal resistance	8°C/W
Warranty	3 years
Place of Origin	Shenzhen Guangdong China
Feature	Super brightness,High stability,High efficiency,High CRI
Base Material	Ordinary Aluminum plate;Mirror surface Aluminum imported from Germany;Copper plate

 The same series with 50 watt high power led

Serises	Power(W)	Circuit Structure(series parallel)	Flux(lm)MIN	Flux(lm)MAX	Current(mA)	Voltage(V)
Square COB LED chips	10	9S1P	1000	1600	350	28-31
	20	10S2P	2000	3200	700	30-34
	30	10S3P	3000	4800	1050	30-34
	50	10S5P	5000	8000	1750	30-34
	70	10S7P	7000	11200	2450	30-34
	80	10S8P	8000	12800	2800	30-34
	100	10S10P	10000	16000	3500	30-34
	120	12S10P	12000	19200	3500	36-40.8
	150	15S10P	15000	24000	3500	45-51
	200	20S10P	20000	32000	3500	60-68
	Special circuit structure and CCT also can be designed according to your requirement.The formula of current and voltage:350mA per parallel;3.0v-3.4v per series

Applications for 50 watt high power led 50 watt high power led is widely used on outdoor led lamps,like,Street lamps, spotlights, architectural lighting landscapes lighting,exterior illumination and so on.   Packaging & Shipping Packing of our led products (1),35*16*16.5cm 200pcs per carton;
(2),37*36.5*19cm 400pcs per carton;
(3),43*35.5*36 1000pcs per carton;
(4),In addition,the package can be customized as inquire. Delivery time of samples and normal order of  50 watt high power led Sample products will be sent to you in 1-3 days ; Normal orders will be sent to you in 1-7days.   Shipping way We ship 50 watt high power led by UPS/TNT/FEDEX/DHL . You will receive our products in 7 working days.       Our Services   1.We can offer three categories of products,cob led source, integrated LED source and high power LED source.   2.Customsized specification can be accepted in our factory . 3.Our warranty about 50 watt high power led is 3 years. 4.Your inquiry related to 50 watt high power led will be replied within 24 hours.   Company Information 1.Advantages of TongYiFang (1). we are the Professional led manufacture of 50 watt high power led ,and we have in this line for seven years. (2).50 Professional techinical engineers with years experience. (3). Professional technical support and strict testing to control the quantity of each product. (4), Factory direct sale,our price is the most competitive.   2.Certifications:

 FAQ   1.Prices conditions Price can be FOB, CIF ,EXW, or With taxes 2.Shipment will be over sea or by air? Generally speaking ,we ship the 50 watt high power led  by DHL UPS FEDEX express since the products isn’t too heavy for the transportation 3.Will there be any contract for this business or trade? Yes,there is a normal contract before the order is placed Reception and Factory view:

COB LED expert Round COB LED 3-80w, Square cob LED 10-200w, and high power 1-3w. contact us Now !!! skype : led-chip-steven
