Factory Epileds cob 10w 30w 100w rgb led chip

  new products epileds cob 10w 30w 100w rgb led chip   Product Description DimensionsPicturesApplications

Name	rgb led chip
Power	10w
Wavelength(nm)	R:615-660nm/G:515-530nm/B:450-470
Lumen(lm)	R:90-120/G:200-300/B:30-60
Circuit Structure	3 series 3
Voltage(V)	R:6-7.8/G:9-10.2/B:9-10.2
Current(mA)	350
Chips	epileds
Warranty	3 years
Certification	RoHs&LM80

   TYF professional business line:    1. LED 1W 3030/2835 --LM80, 6000h Ave.Lumen Maintenance 97.91%    2. LED 1W high power --LM80, 6000h Ave.Lumen Maintenance 97.81%    3. LED COB  --LM80, 6000h Ave.Lumen Maintenance 96.52%    4. LED COB integrated --LM-80 Testing     5. LED Flood light --SAA TUV 110lm/w    6. LED High bay light--SAA TUV 117lm/w

High power series--LM80	power	CCT	Luminous flux	voltage(v)	current(mA)	LED chip

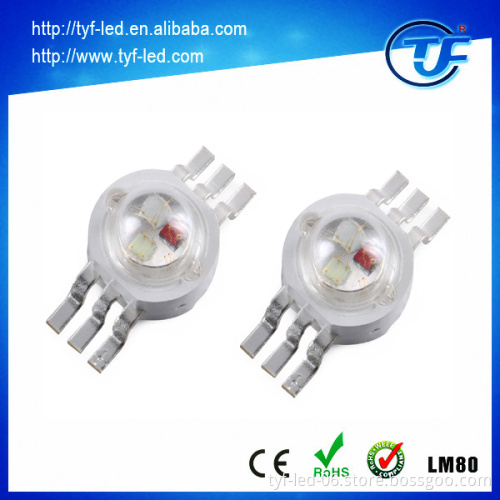

	1w/3w	3000-3200	120-160	3.0-3.4	350	Bridgelux 45Mil
		4000-4300	120-160
		6000-6500	100-130
	1w	customized	100-130	3.0-3.2	350	Epistar33Mil
3-80w cob led chip series--LM80	power	CCT	Luminous  flux/watt	voltage(v)	current(mA)	series-parallel connection
	3w	customized	110-130	9-10.2	320	3 series 2 parallel
	5w	customized	110-130	15-17	320	5 series 2 parallel
	7w	customized	110-130	21-23.8	320	7 series 2 parallel
	10w	customized	110-130	30-34	320	10 series 2 parallel
	15w	customized	110-130	45-51	320	15 series 2 parallel
		customized	110-130	30-34	480	10 series 3 parallel
	20w	customized	110-130	60-68	320	20 series 2 parallel
		customized	110-130	30-34	640	10 series 4 parallel
	24w	customized	110-130	72-81.6	320	24 series 2 parallel
	30w	customized	110-130	30-34	960	10 series 6 parallel
	40/50/60	customized	100-130	customized	customized	15-18series x parallel
	LED chip: Bridgleux 17*34mil.  serial to parallel mode can be special designed.

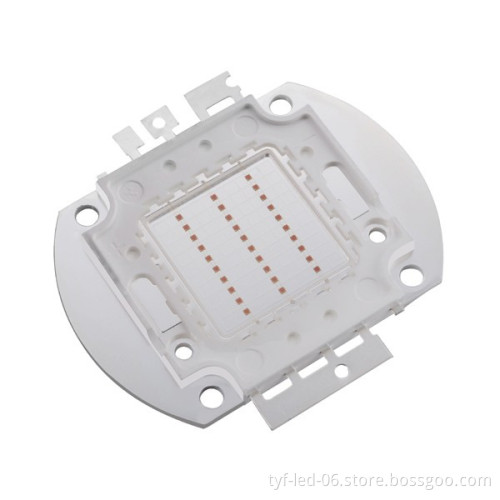

10-150w integrated led chip--LM80	power	CCT	Luminous flux/watt	voltage(v)	current(mA)	series-parallel connection
	10w	customized	120-150	28-31	350	9 series 1 parallel
	30w	customized	120-150	30-34	1050	10 series 3 parallel
	100w	customized	120-150	30-34	3500	10 series 10 parallel
	LED chip: Bridgelux 45Mil, Epistar 33Mil and so on. serial to parallel moidel can be special designed.

  Application of rgb led chip

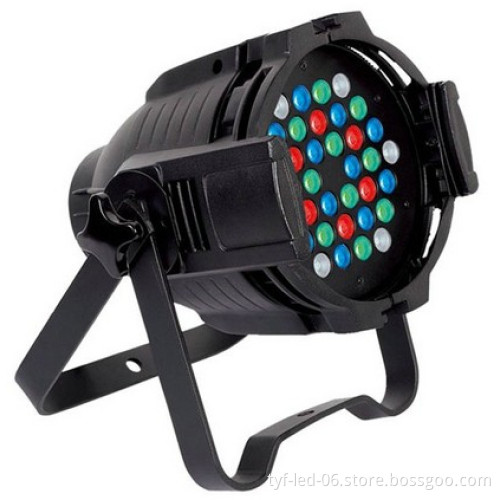

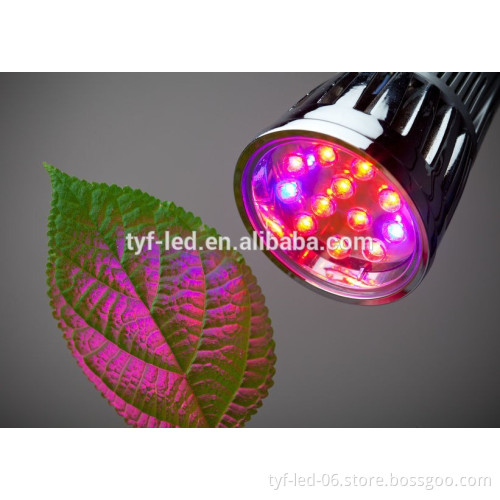

rgb led chip is widely used on outdoor lamps,like led flood light and so on.



Same series products of led chip

Power	Color	Lumen(lm)	Circuit Structure	Voltage(V)	Current(mA)	Warranty
10w	red	300-350	9*1 series	18-21	350	3 years
10w	yellow	300-350	9*1 series	18-21	350	3 years
10w	green	600-900	9*1 series	27-32	350	3 years
10w	blue	100-260	9*1 series	27-32	350	3 years
10w	purple	5-15	9*1 series	30-35	350	3 years
10w	RGB	R:90-120	3*3 series	R:6-7.8	350	3 years
		G:200-300	3*3 series	G:9-10.2	350	3 years
		B:30-60	3*3 series	B:9-10.2	350	3 years

1.we have single cob 3w-100w,integrated cob 10w-200w,and high power led 1w-3w
2.We have CCT:1500K-25000K,single color,red,blue,green,yellow,purple,IR,UV,and full color,RGB.
3.We can service for OEM/ODM.

    *Packaging & Shipping*   Samples of cob led light chip  can be sent within 1-3 days. buck order within 3-7days,according to the quantity.  We use Double package with 5 layer carbon box. *Certification*   LED light source: CE,LM80- cob led light chip LED Flood light: CE,ROHS,FCC,RCM,SAA,UL LED high bay light: CE,ROHS,FCC,RCM   *Services and warranty*   24h online service Good pre&after sale service 3 years warranty 5 years technical surport special demand can customize     *Factory show*  *FAQ*

Trade Terms	Exw, FOB,  CIF or others
Payment Terms	T/T,Paypal,Western Union,MoneyGram,Ali escrow, L/C for large amount
Delivery Terms	Within 1-3 days for sample, normal order with 3-7days
Shipment Terms	Shipped by Air,express, ship
Sample Terms	1 pcs is ok
