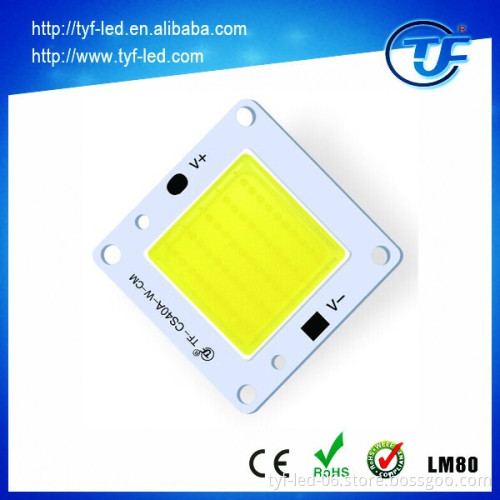

China factory 20w 30w 50w 100w bridgelux epistar chip led

                       China factory 20w 30w 50w 100w bridgelux epistar chip led   Product advantages: 1. LM80,CE, RoHS,ISO9001:2008 approved 2. Professional manufacturer with 9 years experience 3. 3 years warranty 4. Lifespan is up to 50000hours       Product Description   General Introduction of epistar chip led

Chip Brand	Bridgelux45mil, Epistar33mil, San'an35mil
Power	100W
Lumen	100-140lm/w
White	Warm white, natural white, pure white, cool white (1500-20000K can be customized)
Color	White, Red, green, yellow, RGB etc.
Certification	CE RoHS LM-80 EN62471
Application	Mainly for outdoor lighting such as LED high bay, led flood light, led street light, led track light etc.

  Details of epistar chip led      Regular power for this model

Power(W)	Voltage(V)	Current(mA)
20w	30-34V	750mA
30W	30-34V	1050mA
40W	30-34V	1400mA
50W	30-34V	1750mA
70W	30-34V	2450mA
100W	30-34V	3500mA

Absolute maximum rating

Item	Symbol	Value	Unit
Maximun Power	P	113	W
DC Forward Current	IF	3500	mA
Direct Reverse Voltage	VR	-50	V

 Optical charateristics:  Tc=25 ℃,IF=3500mA CCT=6000K

Item	Minimum Value	TYP	Maximum Value	Unit
DC Forward Voltage	30	32	34	V
Flux	11000		13000	lm
CRI	70

  The same series with  epistar chip led      We produce various types of high power led. There must be one model can meet your demand.   Applications for  epistar chip led
epistar chip led is widely used in outdoor lightings, such as LED street light,LED floodlight,LED track light,LED tunnel light,LED high bay light and so on.     Packaging & Shipping   1.Time of delivery: 1-2 days for sample order and 3-5 days for normal order   2.Terms of delivery:  led cob chips100w are delivered by air normally, such as time-sensitive DHL,FedEx,TNT,UPS and so on.   3. Package 1) 10-20W Package

Dimension of carton	Quantity per carton(Pieces)	Total weight
35*16*16.5cm	800	6KG
37*36.5*19cm	2000	15KG
43*35.5*36cm	4000	30KG

 2) 30-100w Package

Dimension of carton	Quantity per carton(Pieces)	Total weight
35*16*16.5cm	200	6.4KG
37*36.5*19cm	500	16KG
43*35.5*36cm	1000	32KG

  Our Services 1. 3 years warranty 2. Technical service team with 9 years experience 3. Professional sales team providing timely and efficient services. 4. On the principle of "high quality,zero defect",we are devoted to offering you the high quality products with competitive prices.   Company Information    Why we can rank top 3 in Shenzhen and 6 in china  in LED AREA? TYF is Shenzhen high-tech enterprise and national high-tech enterprise, we are specialized in high power,high  lumens ,supper bright white LED, all kinds of the COB LED and the module LED light source more than 9 years.     We have advanced Auto "ASM"machine,Auto "KS"machine,Auto light-division and Color-division  machines.  And can provide above 50KK LED light sources every month. Many certifications our products have passed, such as ISO9001:2008,  CE, ROHS, GSG  LM80 and others Our products are sold all over the world. And good quality&service are highly appriciated by clients. "High quality,zero defect" is a rule that we always insistant. Still now,we have more than 50 patents. Certifications     FAQ 1. Prices conditions Price terms can be FOB, CIF ,EXW, or With taxes. 2. What will be the delivery time and what will be the mode of payment ? We have large quantities in stock for regular series.50K units are available for most of our models. If what you need is out of stock, it only takes 3 days to customize normally. The payment can be T/T transaction, Letter of credit,Paypal,Western Union. 3. Shipment will be over sea or by air ?  Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn’t too heavy for the transportation  4. Could you please send me the sample for testing so that i could see and analyze its quality? Yes. We can send samples first, samples need to be charged if the value is high 5. Will there be any contract for this business or trade ? Yes, there is a normal contract before the order is placed 6. How will invoice be generated ? Invoice can be generated with formal contract with company seals   Scan of  factory's picture   Exhibitions at home and abroad P.S:  Besides epistar chip led, we are also specialized in 1-3w high led,SMD, 10-200W high power COB with copper base and 3- 80w COB with mirror aluminum base. If you are interested in the products, please contact with Anna( Skype ID:tyf-led02 /  QQ:  2750639117). High quality products and competitive price will be offered.
