Factory good quality bridgelux epistar indoor light 20W COB LED diodes

Factory good quality bridgelux epistar indoor light 20W COB LED diodes       Product Description Specification of 20w COB LED diodes

Product name	Type	power	CCT	Luminous flux(lm) MIN	Luminous flux(lm) MAX	Voltage(v)	Current(mA)
20w COB LED diodes	M26-01L	20w	3000-3200	1750	2000	65	320
			4000-4300	1850	2100	65	320
			6000-6500	1900	2200	65	320
Notes: 1.We have several modules for this power led chip , the information here is just for your reference ; 2.Customized specification(such as : color , luminous , CRI , circuit structure and so on) can be accepted in our factory if we can reach them ;3.We are professional led manufacturer in Shenzhen , China . Welcome to visit our factory !

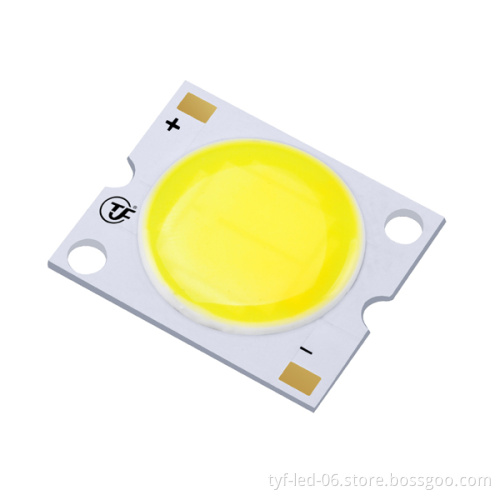

  Pictures of 20w COB LED diodes and some other related led chips   The catalogue of our led chips

High power series	Product name	power	CCT	Luminous flux(Min)	Luminous flux(Max)	voltage(v)	current(mA)	LED chip
	high power led chip	1w/3w	3000-3200	90	140	3.0-3.4	350	Bridgelux 45Mil
			4000-4300	90	140
			6000-6500	90	140
	high power led chip	1w	customized	90	140	3.0-3.2	350	Epistar35Mil
3w - 60w cob led chip series	Product name	power	CCT	Luminous flux(Min)	Luminous flux(Max)	voltage(v)	current(mA)	series-parallel connection	LED chip
	3w cob led chip	3w	customized	240	360	9-10.2	320	3 series 2 parallel	Epistar 17*34mil
	5w cob led chip	5w	customized	400	800	15-17	320	5 series 2 parallel
	7w cob led chip	7w	customized	620	850	21-23.8	320	7 series 2 parallel
	10w cob led chip	10w	customized	850	1150	30-34	320	10 series 2 parallel
	15w cob led chip	15w	customized	1300	1800	45-51	320	15 series 2 parallel
			customized	1300	1800	30-34	480	10 series 3 parallel
	20w cob led chip	20w	customized	1750	2200	60-68	320	20 series 2 parallel
			customized	1750	2200	30-34	640	10 series 4 parallel
	24w cob led chip	24w	customized	2100	2875	72-81.6	320	24 series 2 parallel
	30w cob led chip	30w	customized	2550	3500	30-34	960	10 series 6 parallel
	40-60w cob led chip	40/50/60	customized	3350	6450	customized	custimized	15-18 series x parallel
10-100w integrated led chip	Product name	power	CCT	Luminous flux(Min)	Luminous flux(Max)	voltage(v)	current(mA)	series-parallel connection	LED chip
	10w integrated led chip	10w	customized	800	1080	28-31	350	9 series 1 parallel	Bridgelux 45Mil replace Lumileds;Epistar 35Mil is also available
	30w integrated led chip	30w	customized	2700	3600	30-34	1050	10 series 3 parallel
	100w integrated led chip	100w	customized	9000	12000	30-34	3500	10 series 10 parallel

The suppliers of the raw material The application of 20w COB LED diodes chip   Advantages of our 20w COB LED diodes and other led chips 1.Good quality led raw materials. We use Bridgelux 35mil/45mil LED chip for 1w/3w high power led , Epistar 17*34mil LED chip for COB led , Epistar 35mil/Bridgelux 45mil LED chip for integrated led , 1.2mil gold wire . 2.Advanced automatical production line. We have advanced auto ASM machine , auto KS machine , auto light-division and color division machines .We specialize in various specification high power , high lumens , super bright white LED and some other kinds of led module.  3.Strict quality management system. Our company has obtained ISO9001:2008 quality management system certification. And our led light sources have got the CE and ROHS certification. 4.Good credit and reputation. Our company has got LED energy saving expert fame , and our led products are popular in the whole led market .   Packaging & Shipping Payment & Delivery & Warranty 1.Our payment terms : T/T , Paypal , Western Union and so on . 2.Our delivery time : 1-3 days for the samples , 1-20 days for the large order according to your quantity and requirement type . 3.Our shipping way : Most of our led chips will be sent by express , such as: EMS , TNT , UPS , Fedex and so on . 4.Our warranty for the led chips : 3 years . 5.Our MOQ : 1 piece (trial order can be accepted) .      Our Services 1.We can accept trial order , so don't worry about the MOQ . 2. for all your inquires about us or our products, we will reply you within 24 hours. 3. All of our colleagues will be patient and kind to you . We are experienced and hard-working . 4.During the usage , if you have any questions , please feel free to let me know . We will try our best to help to solve your problem . 5.Our warranty is 3 years for the normal led chips .     Company Information 1.We are professional led manufacturer with 8 years' experience . 2.We are the top 50 in China , top 3 in Shenzhen in the led chip field . 3.Customized specification can be accepted in our factory . 4.Our main products: cob led chip (3w/5w/7w/10w/12w/15w/18w/20w/25w/30w/40w/50w/60w) for indoor usage , 1w/3w high power led chip , integrated 10w to 100w led chip for outdoor usage . 5.Our company has past ISO9001:2008 quality system certification ,and our led products have got the CE ,ROHS certification . 6.Our company owns more than 50 patents .We are High-tech enterprise in Shenzhen and national High-tech enterprise . 7.We will offer you the best service from pre-sales to customer service . Our certifications   FAQ 1. Prices conditions Price can be FOB, CIF ,EXW, or With taxes
2. What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes The payment can be T/T transaction, Letter of credit,Paypal,Western Union
3. Shipment will be over sea or by air ?    Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn’t too heavy for the transportation

4. Could you please send me the sample for the same . So that i could see and analyze its quality ?   Yes. We can send samples first, samples need to be charged if the value is higher

5. Will there be any contract for this business or trade ? Yes, there is a normal contract before the order is placed

6. How will invoice be generated ? Invoice can be generated with formal contract with company seals   If you have any questions about the 20w COB LED diodes chips , please feel free to contact me . We will try our best to meet your requirements .
