LM80 Top Bridgleux 3W 5W 7W 10W 12W 15W 20W 24W 30W 50W COB LED

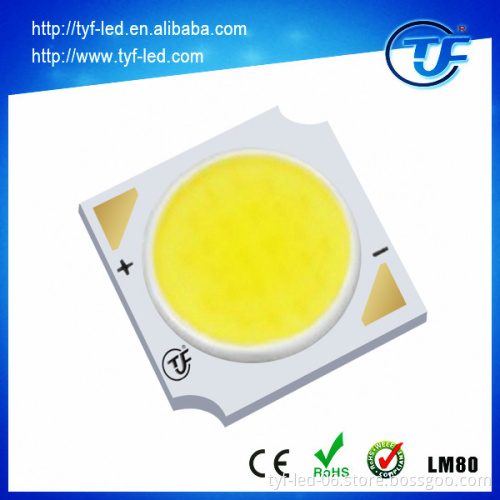

LM80 Top Bridgleux 3W 7W 10W 12W 15W 20W 24W 30W 50W COB LED Product Description  Features for COB LED: 5 years warranty Mirrow Aluminum base LM80 En62471 passed 120/130/140/150lm/w available 80/90ra can choose

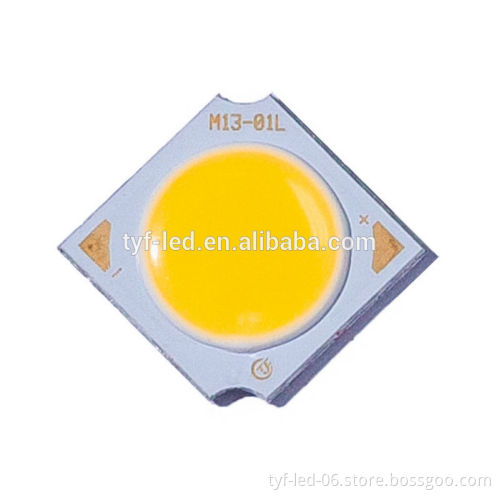

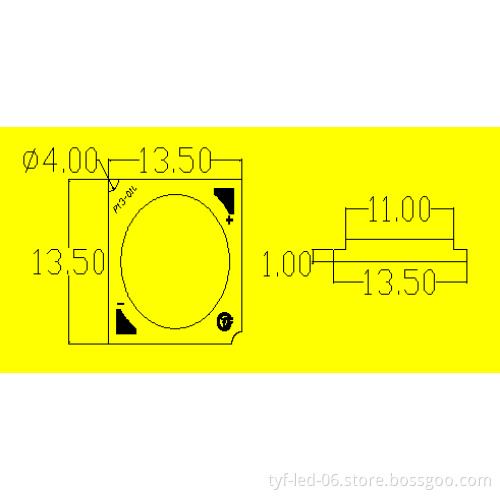

M13-01L Dimensions	Picture	Applications

Item	Symbol	Value	Unit
Max Power	P	10.88	W
DC Forward Current	IF	320	mA
Reverse Voltage	VR	-60	V
Junction Temperature	Tj	130	℃
Operating Temperature	TOPR	-30~+60	℃
Storage Temperature	TSTG	-35~+100	℃
Thermal Resistance	RθJ-B	1.42~1.68	℃/W
Electrostatic Limit	ESD	2000	V
Soldering Temperature		350℃/3-5S

  Other available size of TYF COB LED:   TYF Super Bright COB LED Chips:

Model	Diameter	Power	CCT	Efficiency	Voltage(V)	Current(mA)	CRI(Ra)	Lifetime(Hrs)	Warranty
M13-01	11mm	3w	2800-15000	130-140lm/w	9.6	320	>80	>50000	5 years
		7w	2800-15000	130-140lm/w	22	320	>80	>50000	5 years
		12w	2800-15000	130-140lm/w	39	320	>80	>50000	5 years
M19-01	11mm	5w	2800-15000	130-140lm/w	16	320	>80	>50000	5 years
		7w	2800-15000	130-140lm/w	22	320	>80	>50000	5 years
		10w	2800-15000	130-140lm/w	32	320	>80	>50000	5 years
M23-01	14mm	7w	2800-15000	130-140lm/w	22	320	>80	>50000	5 years
		10w	2800-15000	130-140lm/w	32	320	>80	>50000	5 years
		12w	2800-15000	130-140lm/w	39	320	>80	>50000	5 years
M25-01	17mm	10w	2800-15000	130-140lm/w	32	320	>80	>50000	5 years
		15w	2800-15000	130-140lm/w	48	320	>80	>50000	5 years
		20w	2800-15000	130-140lm/w	32	600	>80	>50000	5 years
M26-01	18.5mm	12w	2800-15000	130-140lm/w	39	320	>80	>50000	5 years
		18w	2800-15000	130-140lm/w	58	320	>80	>50000	5 years
		24w	2800-15000	130-140lm/w	39	600	>80	>50000	5 years
M36-02	24.5mm	20w	2800-15000	130-140lm/w	32	600	>80	>50000	5 years
		30w	2800-15000	130-140lm/w	32	900	>80	>50000	5 years
		40w	2800-15000	130-140lm/w	32	1200	>80	>50000	5 years

Applications for COB LED CHIPS
LED COB CHIPS is widely used on indoor COB led lamps, such as COB led spot light, COB Down light, COB Track light,COB led bulb and so on Packaging & Shipping 25 pcs per plate; 40 plates per boundle; 2-10 boundles per box for COB LED Chips.    Our Services 1. FREE Lighting Solution design
2. Professional and efficiency sales one to one service
3. 5 years warranty
4. Life long technical surport
5. Quick delivery(7 days for COB LED Chips samples) Company Information Shenzhen Tongyifang Optoelectronic technology co.,Ltd(TYF) established in 2007, professional China manufacturer engaged in COB LEDs, 1W high power and business lighting. 7000 Sqm factory is located in Shenzhen.
25 engineers in charge of developing and researching, whom can provide you the best technical support. Our company has introduced a series of advanced equipment including AMS & KS auto Machines that imported from USA.
Rohs and LM80 for our COB LED light source.     FAQ   1.Trade Terms of COB LED chips?
