Hot Sell 3528 PLCC2 365nm 370nm 375nm 380nm SMD UV LED for Biochemical Analysis and UV Curing

Hot Sell 3528 PLCC2 365nm 370nm 375nm 380nm SMD UV LED for Biochemical Analysis and UV Curing

$0.10

2000-19999 piece
$0.08

20000-49999 piece
$0.06

50000-199999 piece
$0.04

≥200000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100000 Piece/Pieces per Month
Payment Type:	T/T
Port:	ShenZhen

Product Description

Manufacturer hot sell 3528 PLCC2 365nm 370nm 375nm 380nmSMD uvA LED as sensor for biochemical analysis and UV Curing lighting

Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .

Manufacturer hot sell 3528 PLCC2 365nm 370nm 375nm 380nmSMD uvA LED as sensor for biochemical analysis and UV Curing lighting

Applications:

1.UV curing,

2.currency detection,

3.biological testing equipment,

4.medical equipment

5.Visual system Light Source

6.special lighting sources

Manufacturer hot sell 3528 PLCC2 365nm 370nm 375nm 380nmSMD uvA LED as sensor for biochemical analysis and UV Curing lighting

Product Description

Initial Electrical/Optical Characteristics (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	V_F	I=20mA	3.0	3.2	3.6	V
DC reverse Current	I_R	V=5V	----	----	10	μA
Peak Wavelength	λP	I=20mA	370	375	380	nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	15	----	Nm
Radiant power	Φe	I=20mA	3	6	9	mW
50%Power Angle	2θ1/2	I=20mA	----	120	----	deg

Package:

2000pieces as a reel

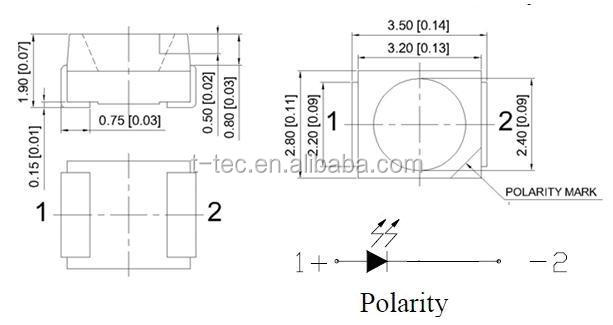

Package Size:

Manufacturer hot sell 3528 PLCC2 365nm 370nm 375nm 380nmSMD uvA LED as sensor for biochemical analysis and UV Curing lighting

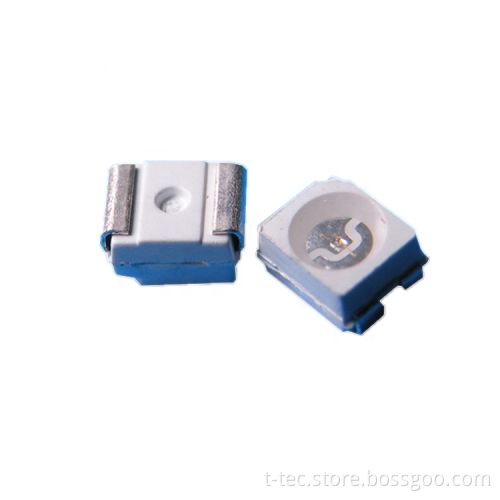

Appearance

Manufacturer hot sell 3528 PLCC2 365nm 370nm 375nm 380nmSMD uvA LED as sensor for biochemical analysis and UV Curing lighting

Our Services

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
