Special Wavelength LED Manufacturer - 5mm UVA LEDs (320nm-390nm) Through Hole for Sensors
  • Special Wavelength LED Manufacturer - 5mm UVA LEDs (320nm-390nm) Through Hole for Sensors
  • Special Wavelength LED Manufacturer - 5mm UVA LEDs (320nm-390nm) Through Hole for Sensors
  • Special Wavelength LED Manufacturer - 5mm UVA LEDs (320nm-390nm) Through Hole for Sensors
  • Special Wavelength LED Manufacturer - 5mm UVA LEDs (320nm-390nm) Through Hole for Sensors
  • Special Wavelength LED Manufacturer - 5mm UVA LEDs (320nm-390nm) Through Hole for Sensors
Special Wavelength LED Manufacturer - 5mm UVA LEDs (320nm-390nm) Through Hole for Sensors
Special Wavelength LED Manufacturer - 5mm UVA LEDs (320nm-390nm) Through Hole for Sensors
Special Wavelength LED Manufacturer - 5mm UVA LEDs (320nm-390nm) Through Hole for Sensors
Special Wavelength LED Manufacturer - 5mm UVA LEDs (320nm-390nm) Through Hole for Sensors
Special Wavelength LED Manufacturer - 5mm UVA LEDs (320nm-390nm) Through Hole for Sensors

Special Wavelength LED Manufacturer - 5mm UVA LEDs (320nm-390nm) Through Hole for Sensors

  • $0.05
    2000-19999 piece
  • $0.04
    20000-99999 piece
  • $0.03
    ≥100000 piece
Min. Order:
1 piece
Min. Order:
1 piece
Port:
ShenZhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Supply Ability: 100000 Piece/Pieces per Month
Payment Type: T/T
Port: ShenZhen
Product Description
Product Description

Special wavelength LED manufacturer hot sell T1 3/4 5mm 380nm 385nm 390nm Through Hole  uv LED as sensor  with ROHS

Shenzhen Starsealand Opto Electronic Co.,LTD  deal with special wavelength  LEDs from 250nm to 4400nm, if you have any inquires please let me know .

Special wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensor





Applications:

1.special lighting sources

2.biological testing equipment

3.Front panel indicator

4.currency detection

5.Medical testing equipment

6.biological testing equipment

7. Ambient illumination

8.Visual system Light Source

9.Encoder  IrDA  and  Encoder











Package size:

Special wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensor

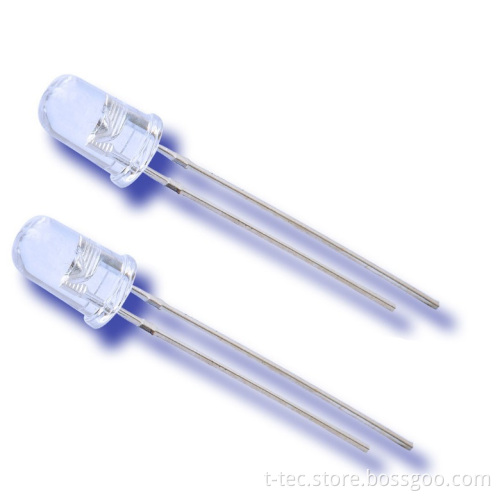

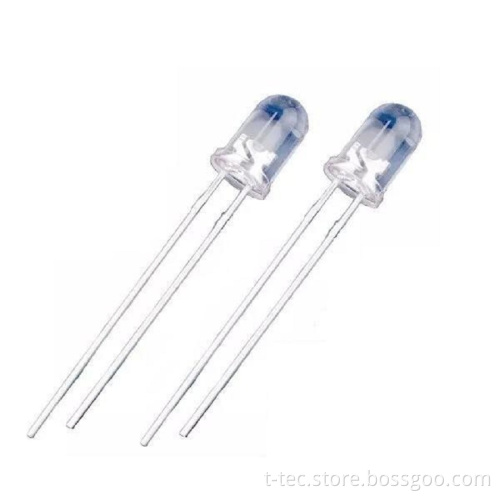

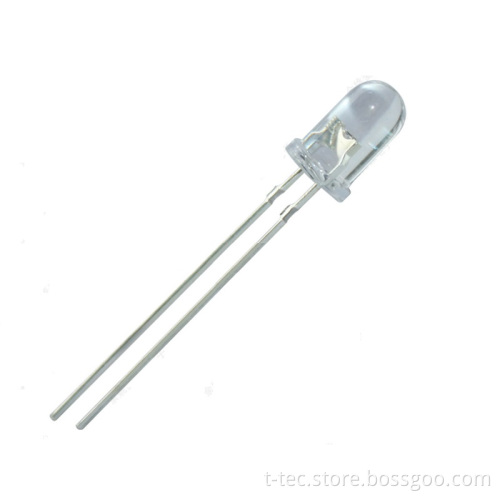

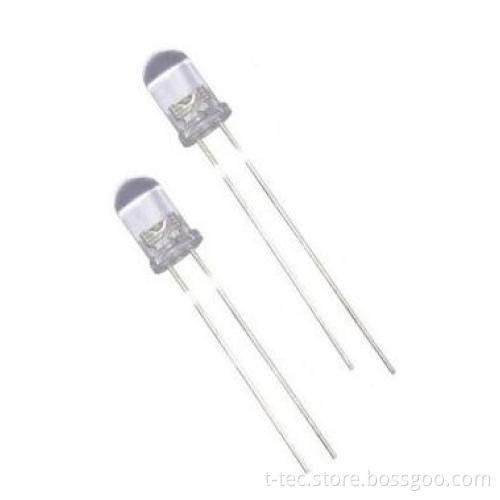

Photo:



 Special wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensor







Initial Electrical/Optical Characteristics                                (Ta=25℃)

Item

Symbol

condition

Min

Type

Max

Unit

DC forward Voltage

VF

I=20mA

3.2

3.4

3.8

V

DC reverse Current

IR

V=5V

----

----

5

μA

Dome Wavelength

WD

I=20mA

380



385

Nm

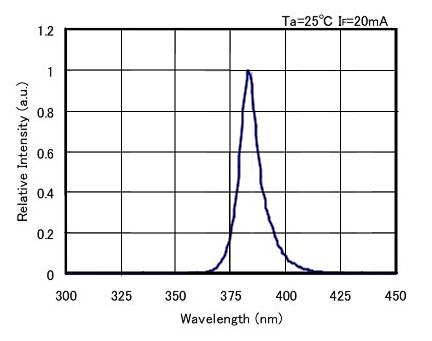

Spectrum Radiation Bandwidth

Δλ

I=20mA

----

20

----

Nm

CW output power

Po

I=20mA

3



7

mW

50%Power Angle

2θ1/2

I=20mA

----

30

----

deg





 Special wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensor









Why Choose Us?



1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.



Our company :

SHENZHEN STARSEALAND OPTO ELECTRONICS  CO.,LTD is a High-tech professional supplier of special wavelength  LEDs . We could better offer you full range electronics components with competitive price and professional service.





Our more products :

 Special wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensorSpecial wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensorSpecial wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensorSpecial wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensor













Main Material

 Special wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensor





Certifications:

 Special wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensorSpecial wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensorSpecial wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensorSpecial wavelength LED manufacturer   5mm 320nm 330nm  350nm 360nm 370nm 380nm 385nm 390nm Through Hole  UV UVA LED as sensor







Packaging & Shipping

All items will be shipped by DHL , UPS , EMS , airmail with tracking number in order to speed up the delivery !



FAQ:

Q:How can I get your pricelist?
A:Please Email us your country name, your detailed contact telephone, fax number, part# you need and how many pieces will
you buy.
Q:If I place an order, how long will it take to delivery it?
A:It usually takes about only 2-3 days on receipt of payment, depends on the quantity ordered and the stock status.
Q:How do you deliver parts to us?
A:Normally sent to you by TNT, DHL, UPS etc Worldwide Express or by shipment. Delivery charge is ofen $35.00,but it will be decided by how many you order and where will you need us to send or you may offer us your account
Q:How is the payment made?
A:There are different payment options. You may choose any of following at your convenience.
by western union: you can find your local service from www.westernunion.com.
by T/T (wire transfer) you can pay to our company account for large quanatity order.
Q:Guarantee?
A:Product guarantee 30days covers form, fit, and function and is limited to prorated refund or replacement
