Chinese Supplier Offers 3535 Size GaN UV UVA SMD LEDs in Special Wavelengths (350nm-400nm)

Chinese Supplier Offers 3535 Size GaN UV UVA SMD LEDs in Special Wavelengths (350nm-400nm)

$0.80

20-999 piece
$0.65

1000-4999 piece
$0.50

5000-19999 piece
$0.45

≥20000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100000 Piece/Pieces per Month
Payment Type:	T/T
Port:	ShenZhen

Product Description

Chinese special wavelength LED supplier offer ceramics base 3535 380nm 385nm GaN UV SMD power LED at competitive price with ROHS

Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .

Chinese special wavelength LED supplier offer 3535 size 350nm 360nm 370nm 380nm 390nm 400nm GaN UV UVA SMD LED

Applications:

1.printing

2.Currency identification

3.passport identification

4.UV Curing

5.coating

6.exposure

7.illuminance meter

8.automatic printing

9.biochemical analysis

10.acne treatment

11.photochemical reaction

12.hair development

13.Color selection

14.Appearance inspection (plastic)

15.Air purifier

16.black light

17.Vein certification

Product Description

Initial Electrical/Optical Characteristics (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=350mA	3.0	----	3.5	V
DC reverse Current	IR	V=5V	----	----	10	μA
Peak wavelength	λP	I=350mA	380	----	385	nm
Spectrum Radiation Bandwidth	Δλ	I=350mA	----	20	----	Nm
Radiant power	Po	I=350mA	80	----	120	mw
50%Power Angle	2θ1/2	I=350mA	----	120	----	deg

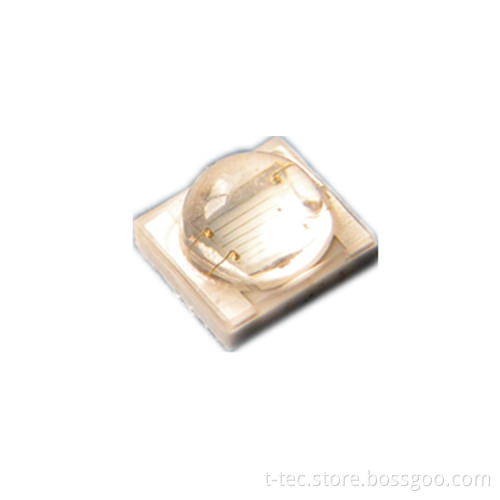

Appearance

Chinese special wavelength LED supplier offer 3535 size 350nm 360nm 370nm 380nm 390nm 400nm GaN UV UVA SMD LED

size drawing:

Chinese special wavelength LED supplier offer 3535 size 350nm 360nm 370nm 380nm 390nm 400nm GaN UV UVA SMD LED

Our Services

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
