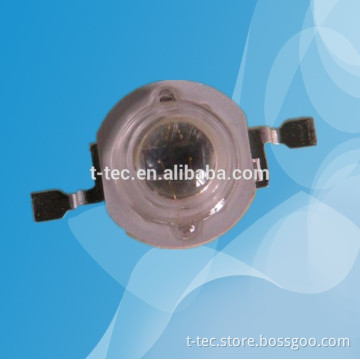

3w power 690nm power led

Specifications 3w power 690nm power led

1).input voltage:1.9-2.2v

2).wavelength:680-700nm

3).Meet Rohs

n         Initial Electrical/Optical Characteristics                               (Ta=25°C)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=700mA		1.9	2.2	V
DC reverse Current	IR	V=5V	----	----	10	μA
Peak wavelength	λ	I=700mA	680	690	700	nm
Spectrum Radiation Bandwidth	Δλ	I=700mA	----	30	----	Nm
Radiant power2	Φe	I=700mA		120		mw
Radiant power2	Φe	I=1400mA		200		mw
50%Power Angle	2θ1/2	I=700mA	----	120	----	deg

  Feature Chip material:GaAlAs Emitted color:infrared Lens Appearance: water clear High flux output and high luminance Lead free product Meet ROHS   Applications Plant grow light Disinfection and sterilizer Medical equipment
