Single to Quad-Level Circuit Board Indicators - Red, Yellow, Green, Blue - Single or Multi-Color Combinations

Chinese special wavelength LED supplier hot sell  single Bi Tri  and Quad-level  Circuit Board Indicator with red yellow green blue  single color or Multi-Color combination at competitive price with ROHS

Shenzhen Starsealand Opto Electronic Co.,LTD  deal with special wavelength  LEDs from 250nm to 4400nm, if you have any inquires please let me know .

Our versatile circuit board indicators come in single, bi, tri, and quad-level configurations, featuring a variety of color combinations including red, yellow, green, blue, and more. Designed for easy integration into electronic applications, these indicators provide clear signaling and status indication. Ideal for consumer electronics, industrial equipment, and automotive systems, they enhance visibility and improve user interface.

Applications:

Status indicator

Illuminator

Signage applications

Decorative and entertainment lighting

Commercial and residential architectural lighting

Product Description

Item	Symbol		condition	Min	Type	Max	Unit
DC forward Voltage	VF	Red	I=20mA	1.85	2.0	2.3	V
		green		1.85		2.3
DC reverse Current	IR	Red	V=5V	----	----	5	μA
		green				5

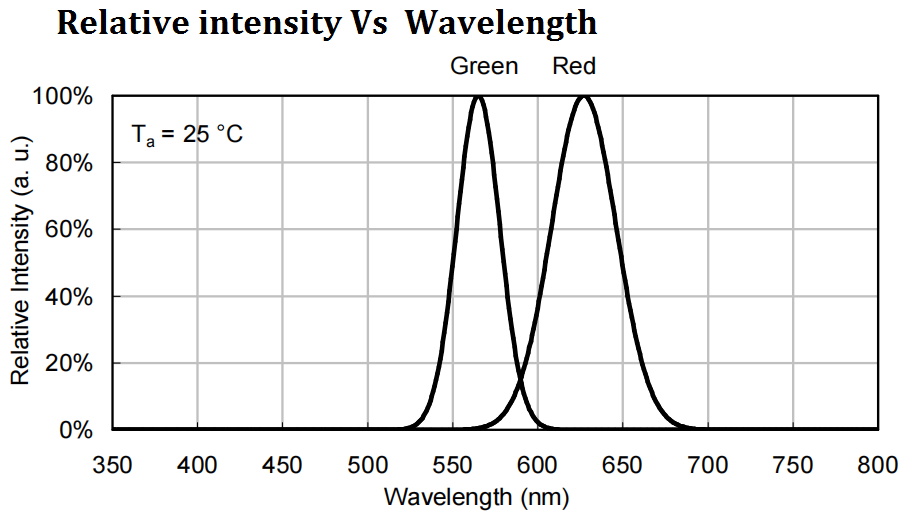

Dome Wavelength	WD	Red	I=20mA	620		625	Nm
		green		567		573
Spectrum Radiation Bandwidth	Δλ	Red	I=20mA	----	20	----	Nm
		green			22
Luminous Intensity	IV	Red	I=20mA	18		30	mcd
		green		6		19
50%Power Angle	2θ1/2		I=20mA	----	60	----	deg









Package size
