Chinese Special Wavelength UVC LED Manufacturer: TO39 Metal Can Hermetic 280nm LED

Chinese Special Wavelength UVC LED Manufacturer: TO39 Metal Can Hermetic 280nm LED

$65.00

10-99 piece
$60.00

100-999 piece
$55.00

1000-9999 piece
$50.00

≥10000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100000 Piece/Pieces per Month
Payment Type:	T/T
Port:	ShenZhen

Product Description

Chinese special wavelength LED manufacturer offer integrated ball lens TO39 metal can hermetically sealed Top view 280nm uvc LED at competitive price with ROHS

Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .

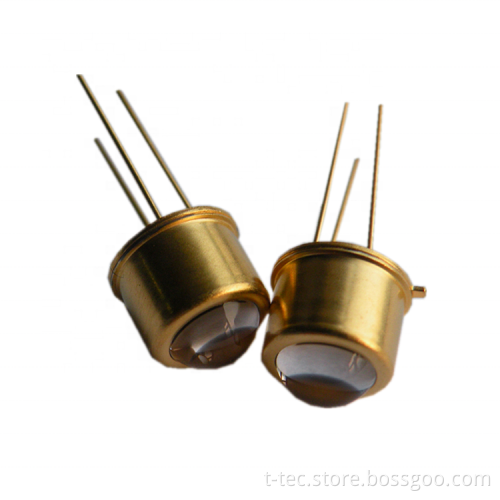

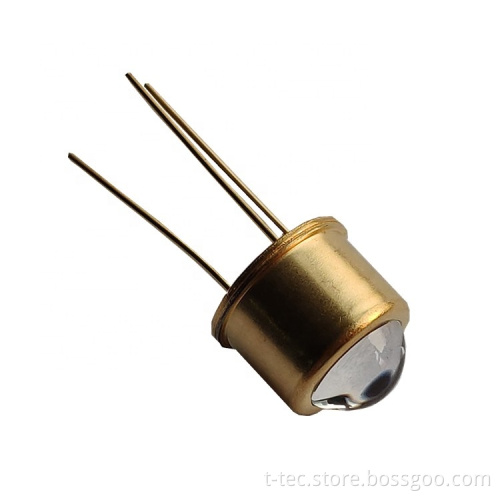

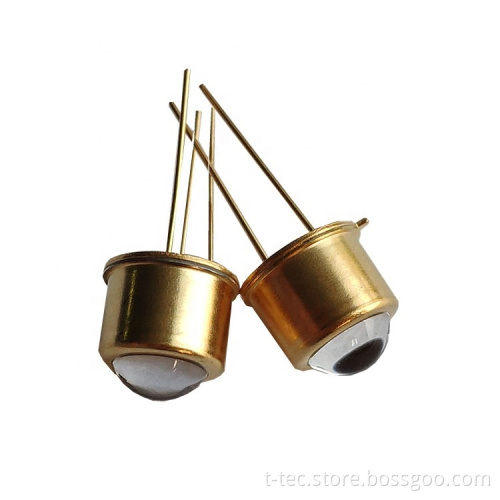

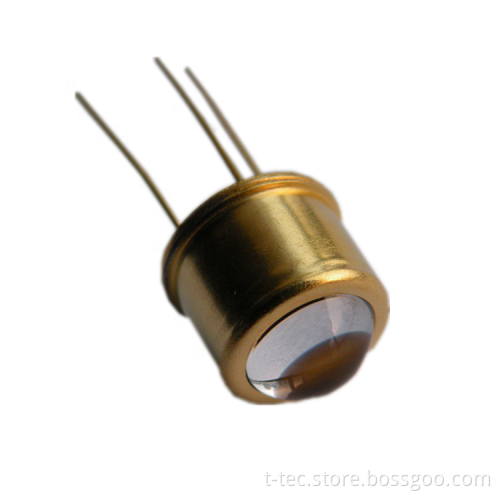

Chinese special wavelength LED manufacturer integrated ball lens TO39 metal can hermetically 280nm uvc LED

Applications:

1.printing

2.Currency identification

3.passport identification

4.UV Curing

5.coating

6.exposure

7.illuminance meter

8.automatic printing

9.biochemical analysis

10.acne treatment

11.photochemical reaction

12.hair development

13.Color selection

14.Appearance inspection (plastic)

15.Air purifier

16.black light

17.Vein certification

Product Description

Power : 0.15-0.2W with one chip

Optial Power: 0.6-1.1MW

Voltage: 4.5~6.0V

Current: 20mA

Angle: 7-20degree

Parameter	Test Condition	Symbol	Min	Typ	Max	Unit
Forward Voltage( V_F)	I_F=20mA	V_F	4.5	-----	6.5	V
View Angle	I_F=20mA	2θ1/2		7		deg
Reverse Current	V_R=-5V	I_R			2	μA
Peak Wavelength	I_F=20mA	Wp	275	280	285	nm
Luminous Intensity(I_V)	I_F=20mA	I_V	1.0		2.5	Mw

UV: 265nm, 280nm,340-350nm,350-360nm, 365nm,375~380nm, 380~385nm, 395~400nm, 410~420nm, 430nm,also other wavelengths from 440nm-980nm and so on.

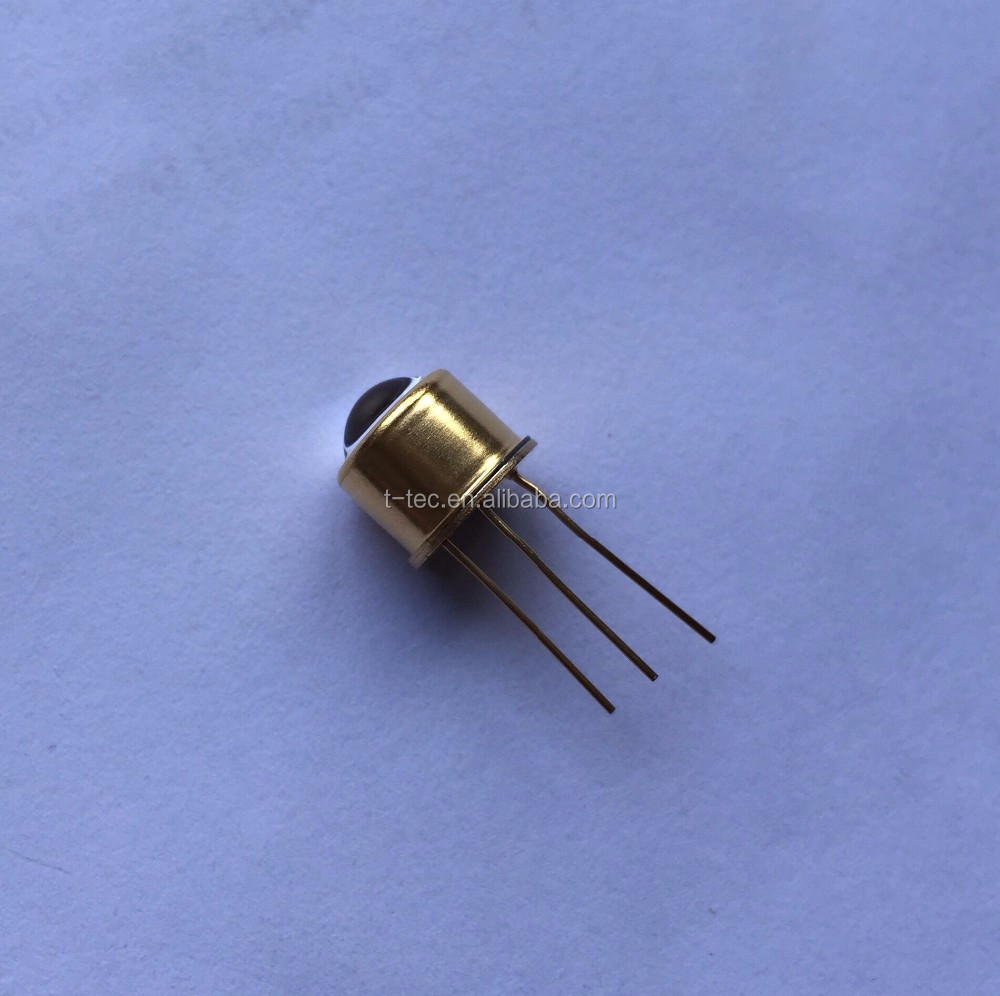

Appearance

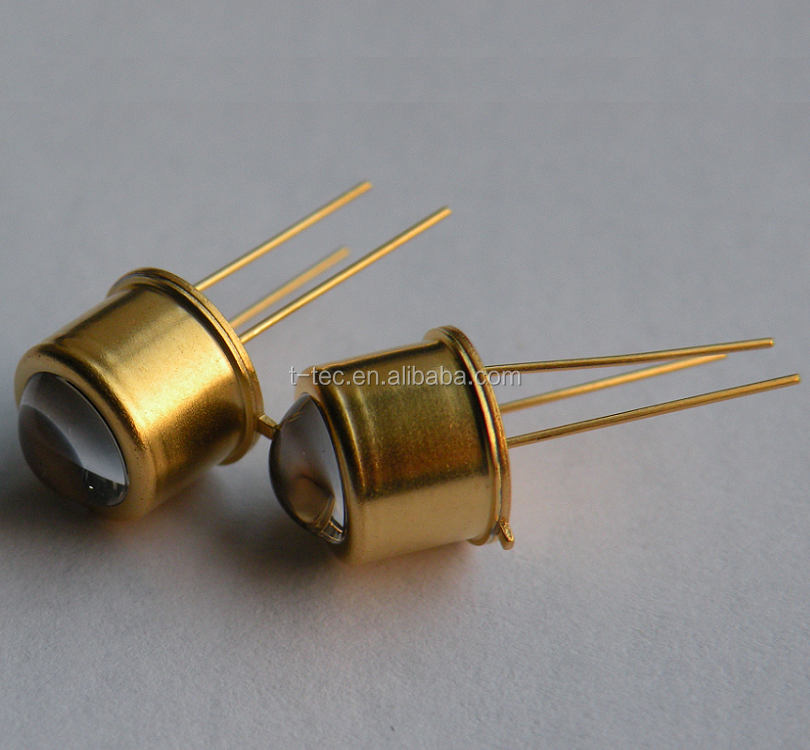

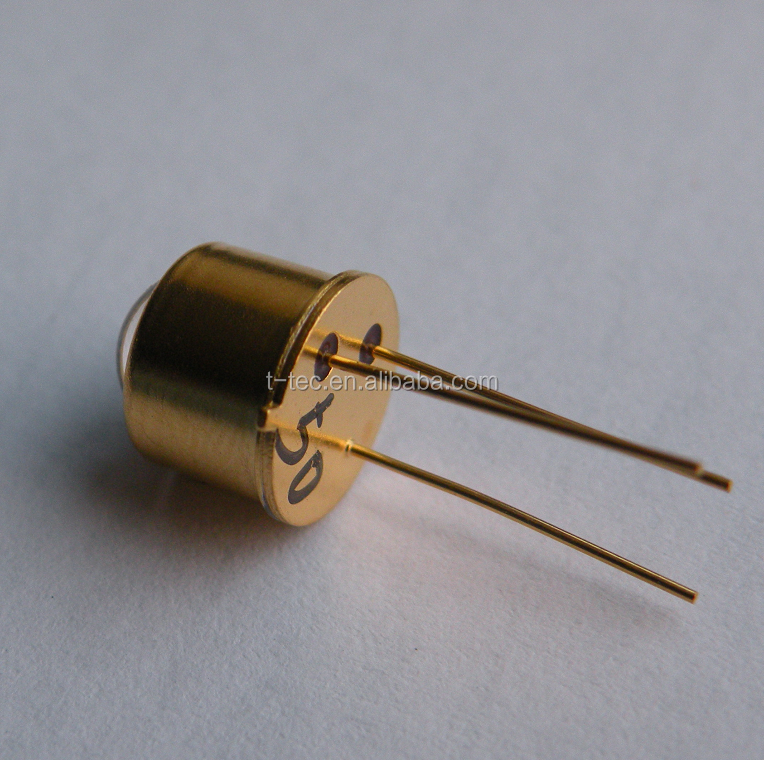

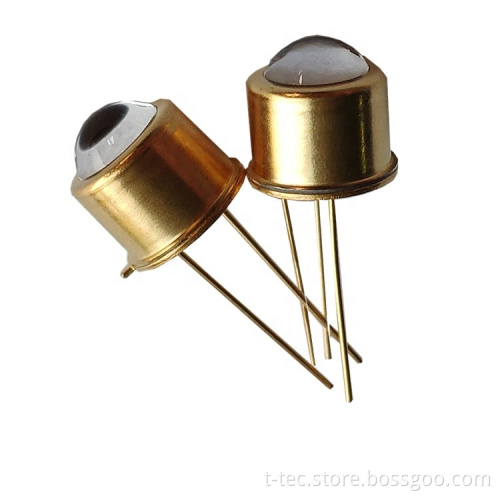

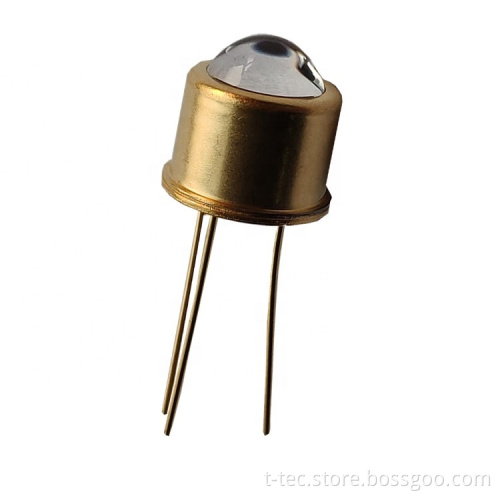

Chinese special wavelength LED manufacturer integrated ball lens TO39 metal can hermetically 280nm uvc LED

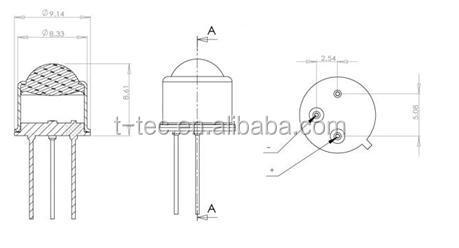

size drawing

Chinese special wavelength LED manufacturer integrated ball lens TO39 metal can hermetically 280nm uvc LED

Our Services

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
