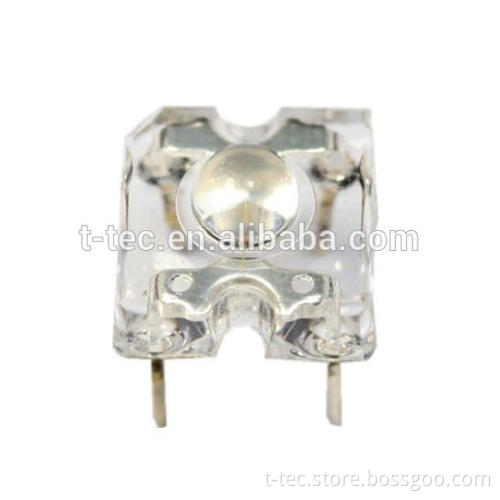

3mm 660nm deep red Piranha LED,

3mm 660nm  deep  red  Piranha LED   l  Applications     Up to electronic switch  Digital read out lamps                                      Audio equipment  Backlight  lighting  and indicator medical instrument gorw light       n  Initial Electrical/Optical Characteristics                                (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	1.9	2.0	2.3	V
DC reverse Current	IR	V=5V	----	----	10	μA
Dominant Wavelength	λd	I=20mA	645		655
Peak Wavelength	λP	I=20mA	654	660	662	nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	28	----	Nm
Luminous Intensity	IV	I=20mA	1200		3000	mcd
radiant power	Φe	I=20mA	1.5	2		mW
50%Power Angle	2θ1/2	I=20mA	----	120	----	deg

    Package Schematics  :
