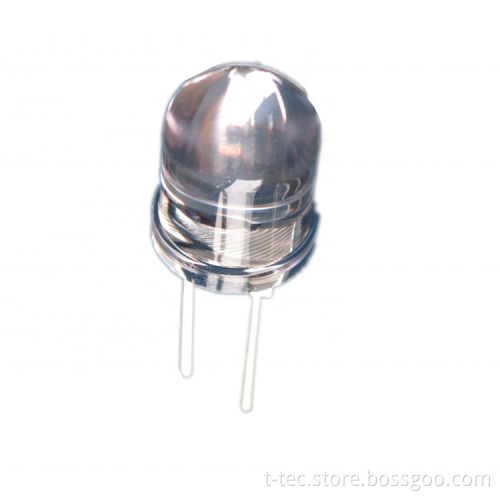

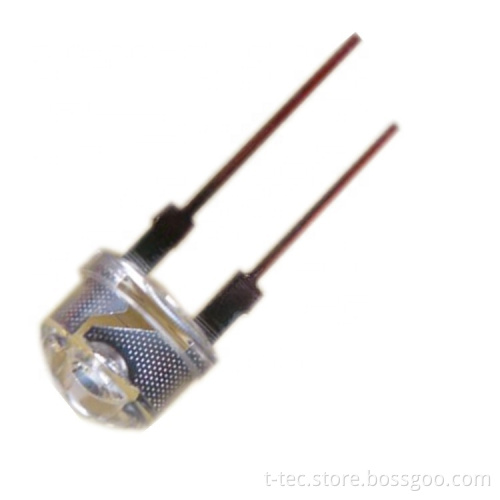

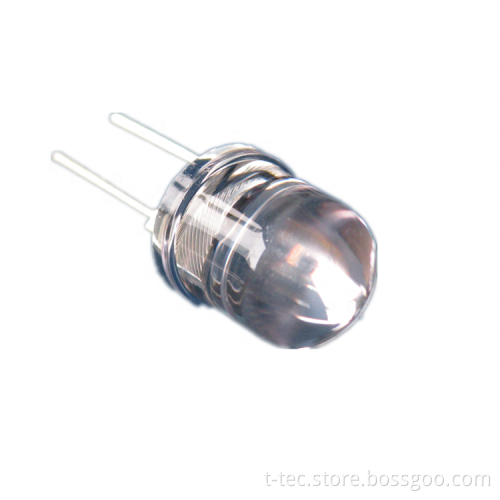

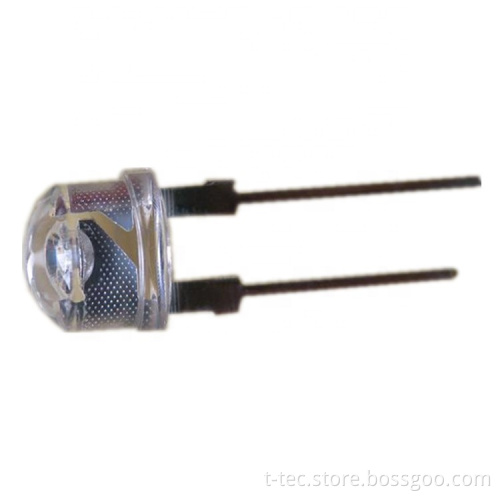

Round Straw Hat with 2000nm IR Infrared LED for Medical Sensor (5mm/8mm/10mm)

Round Straw Hat with 2000nm IR Infrared LED for Medical Sensor (5mm/8mm/10mm)

$95.00

5-49 piece
$88.00

50-199 piece
$80.00

200-999 piece
$75.00

≥1000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	10000 Piece/Pieces per Month
Payment Type:	T/T
Port:	ShenZhen

Product Description

Chinese supplier offer 5mm 8mm 10mm DIP 2000nm at competitive price

Shenzhen Starsealand Opto Electronic Co.,LTD mainly deal with special wavelength LED components from 250nm to 4400nm

F5/F8/F10 5mm 8mm 10mm Round Straw hat 2000nm IR infrared led for medical sensor

Applications:

1. Measuring equipment

2.Gas analysis (CO2)

3.Analytical spectral devices

Product Description

Feature

1) water clear type

2) 8mm straw hat standard

3) wavelength range:2000nm ,invisible light

4) work volt:0.4-0.6v ,pulse forward current :200mA

Item	Symbol	Value	Unit
Pulse forward current	Ip	200	mA
Power dissipation	P_D	200	mW
Operating temperature	T_opr	-20~+75	℃
Storage temperature	Y_stg	-30~+80	℃
Reverse voltage	V_R	5	V
Sold soldering temperature	T_sol	260℃/3Sec	---

Parameter	Test Condition	Symbol	Min	Typ	Max	Unit
Forward Voltage( V_F)	I_F_P=200mA	V_F	0.4	----	0.6	V
View Angle	I_FP=200mA	2θ1/2		120		deg
Peak Wavelength	I_FP=200mA	Wp	1900	2000	2100	nm
Reverse Current	V_R=5V	I_R	----	----	----	μA
Luminous Intensity(I_V)	I_FP=200mA	I_V	1.0		3.5	Mw

also have other wavlength, such as 680nm, 700nm,760-770nm,770-780nm,800-810nm,830-840nm,850nm,880nm,900-910nm,1020nm,1050nm,1200nm,1300nm,1720nm,2000nm,3000nm,4000nm

Appcications:

1)medical facilities.

2)infrared systerm

3)physiotherapeutic instrument

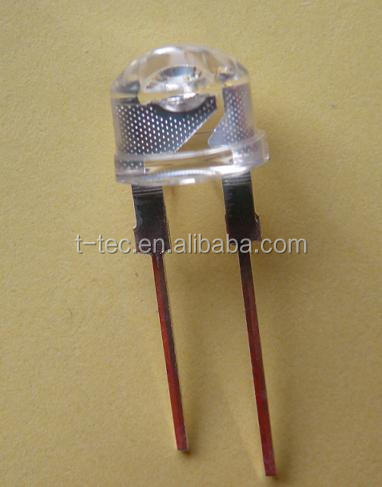

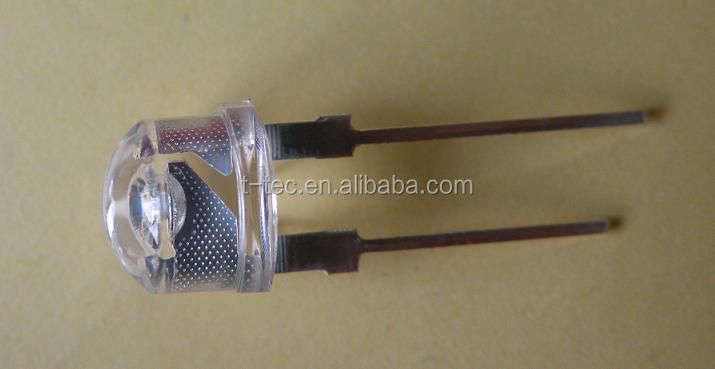

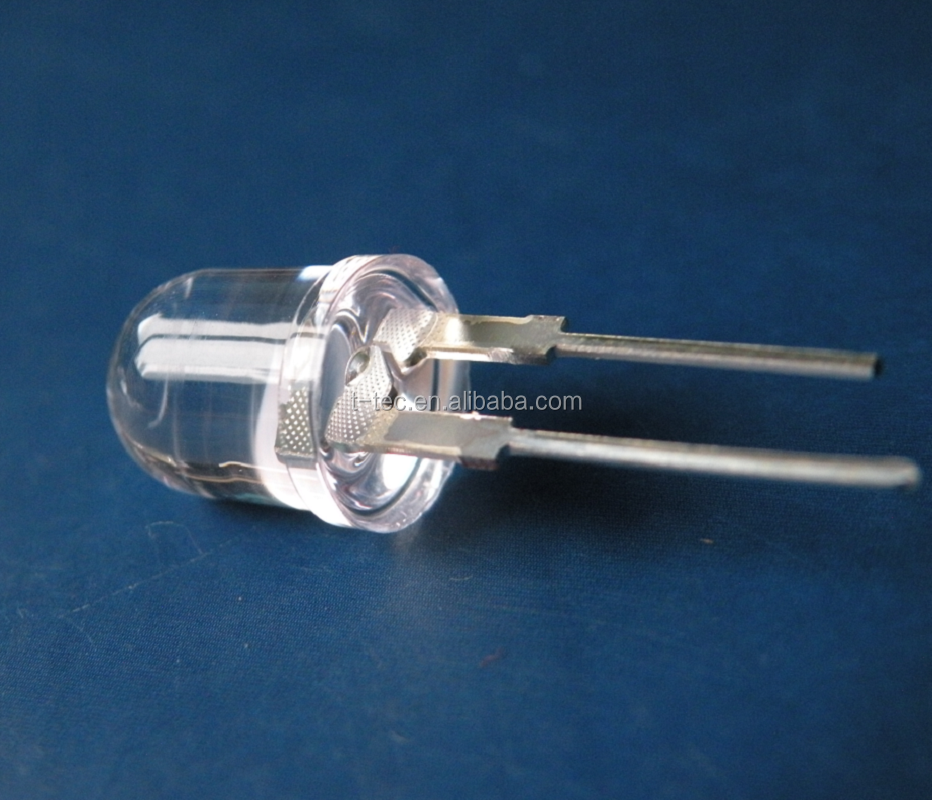

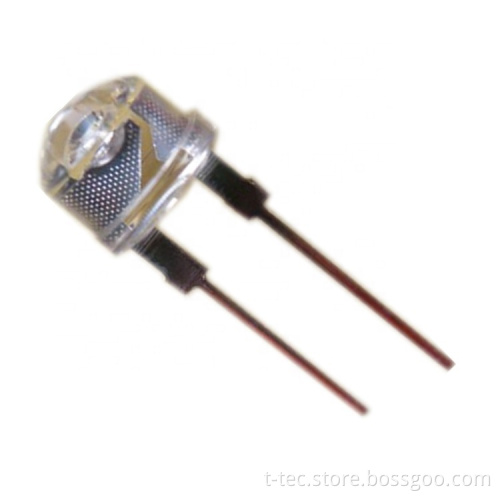

Appearance:

F5/F8/F10 5mm 8mm 10mm Round Straw hat 2000nm IR infrared led for medical sensor

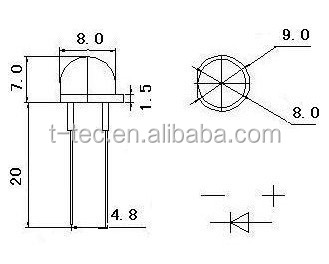

Size drawing :

F5/F8/F10 5mm 8mm 10mm Round Straw hat 2000nm IR infrared led for medical sensor

Our Services

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
