Special Wavelength Infrared LED Supplier: Water Clear Lens 8mm Round for 4000nm to 4500nm

Special Wavelength Infrared LED Supplier: Water Clear Lens 8mm Round for 4000nm to 4500nm

$95.00

5-49 piece
$92.00

50-499 piece
$85.00

500-1999 piece
$80.00

≥2000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100000 Piece/Pieces per Day
Payment Type:	T/T
Port:	Shenzhen

Product Description

Chinese special wavelength LED supplier hot sell water clear lens 8mm Round Dip 4000nm InGaAsPb infrared led diode at competitive price with ROHS

Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .

Chinese special wavelength LED supplier water clear lens 8mm Round Dip 4000nm 4100nm 4200nm 4300nm 4500nm infrared ir led

Applications:

1. oxygen meter
2.Gene testing device
3.motion capture
4. iris authentication
5.Vein certification
6.Surveillance camera
7.Color selection
8.encoder
9.Appearance inspection
10.solar simulation
11.photo therapy

12. Gas sensor

Product Description

Item	Symbol	Value	Unit
forward current	I_F	20	mA
Pulse forward current	Ip	200	mA
Power dissipation	P_D	200	mW
Operating temperature	T_opr	-20~+75	°C
Storage temperature	Y_stg	-30~+80	°C
Reverse voltage	V_R	5	V
Sold soldering temperature	T_sol	260°C/3Sec	---

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	V_F	Ip=200mA	0.2	----	0.4	V
DC reverse Current	I_R	V=5V				μA
Peak Wavelength	λP	Ip=200mA	4000	----	4500	nm
Spectrum Radiation Bandwidth	Δλ	Ip=200mA	1000	1100	1200	Nm
Radiant Power	Φe	Ip=200mA	4	6	8	μW
50%Power Angle	2θ1/2	Ip=200mA	----	30	----	deg
Switching time	tr, tf	Ip=200mA	10	30	50	ns

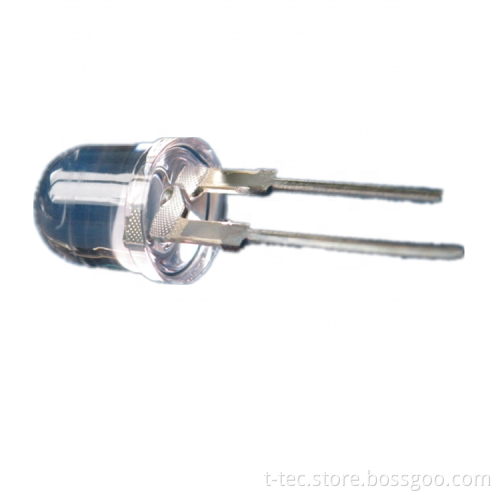

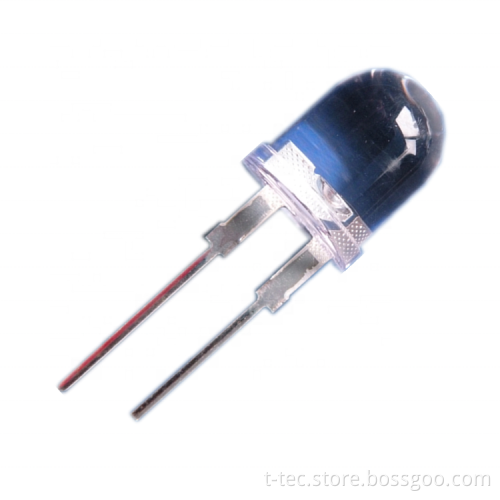

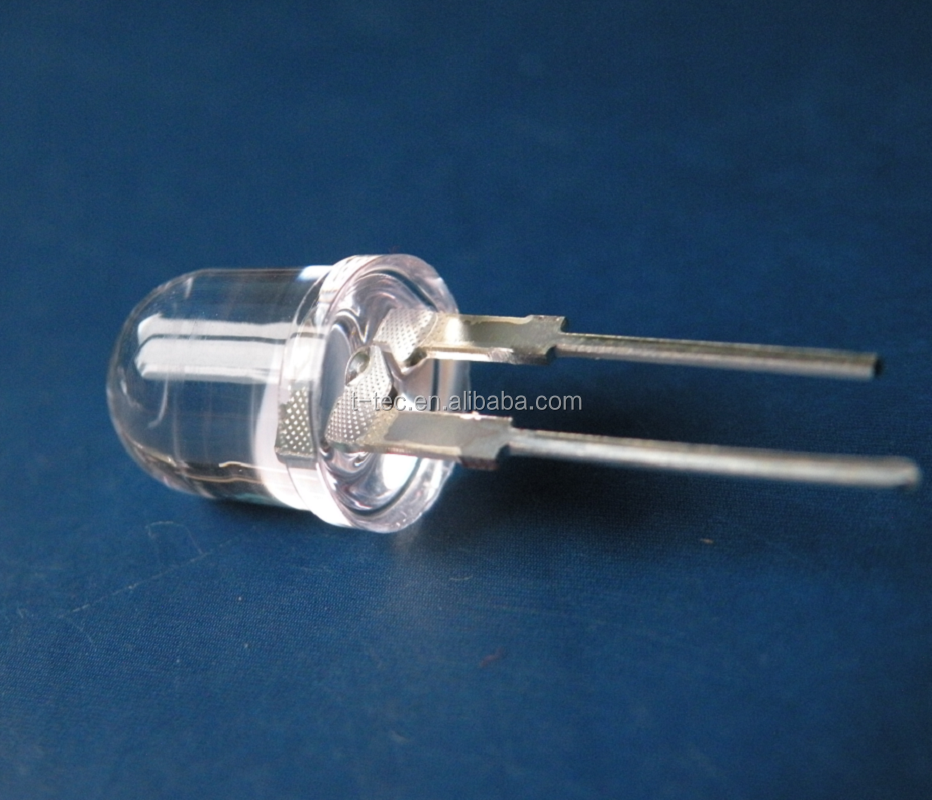

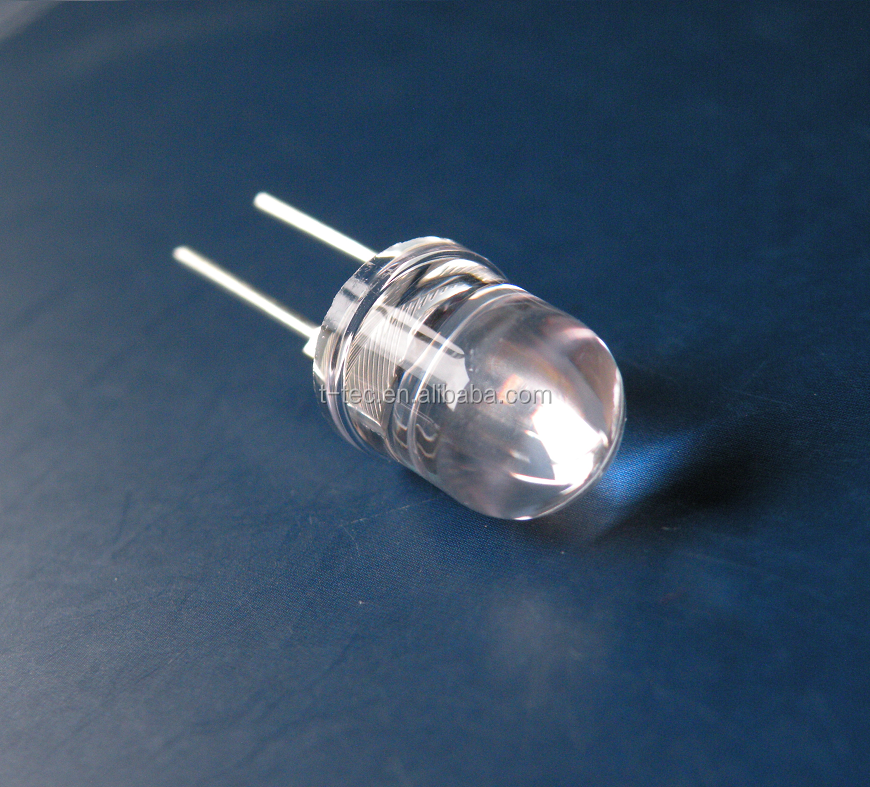

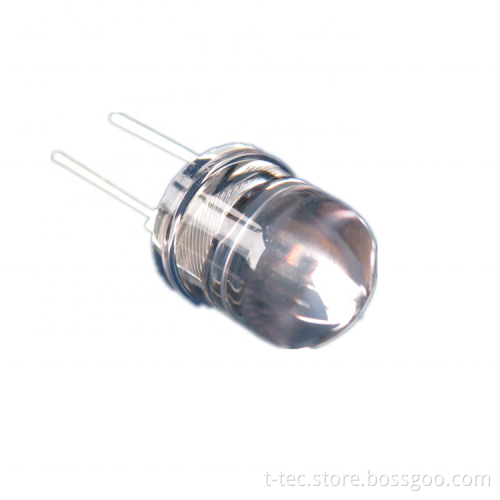

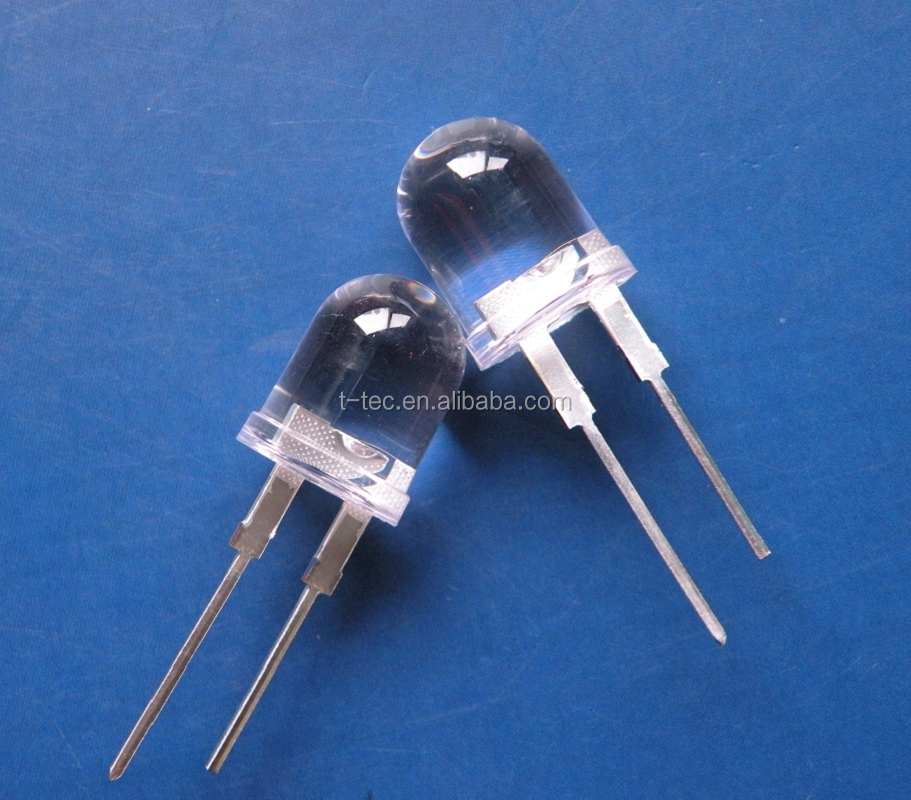

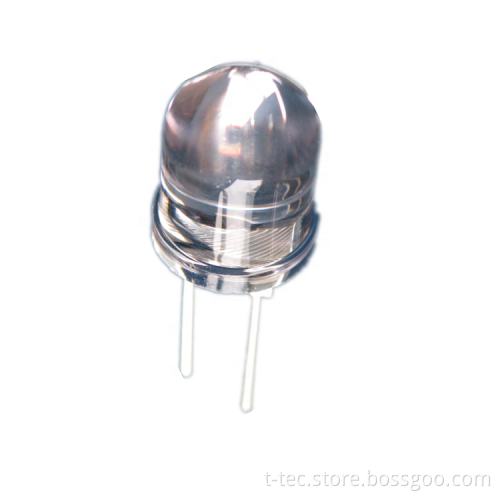

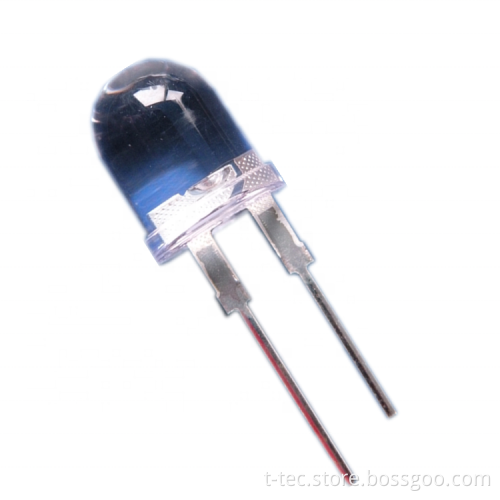

Appearance

Chinese special wavelength LED supplier water clear lens 8mm Round Dip 4000nm 4100nm 4200nm 4300nm 4500nm infrared ir led

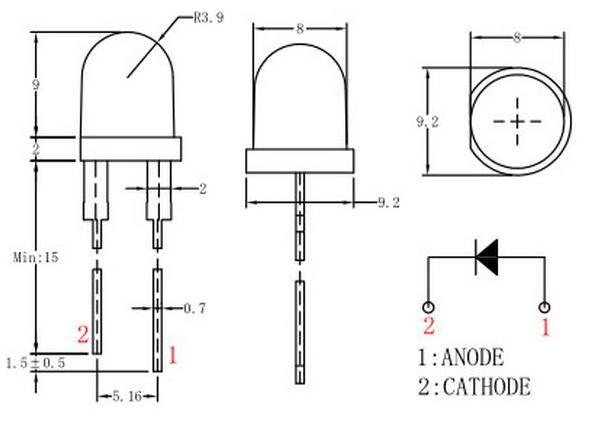

Size drawing

Chinese special wavelength LED supplier water clear lens 8mm Round Dip 4000nm 4100nm 4200nm 4300nm 4500nm infrared ir led
