Basic Info

Product Description

Chinese special wavelength LED manufacturer offer through hole T1 3/4 5mm InGaAsP 1050nm Infrared diode as sensor

Shenzhen Starsealand Opto Electronic Co.,LTD mainly deal with special wavelength LED components from 250nm to 4400nm

Manufacturer-Offered T1 3/4 Infrared Diode Sensor Special Wavelength LED 5mm Hole with 1020nm 1050nm 1200nm 1300nm InGaAsP

Application:

1. oxygen meter

2.Gene testing device

3.motion capture
4.iris authentication
5.Vein certification
6.Surveillance camera
7.Color selection
8.encoder
9.Appearance inspection

10.solar simulation
11.phototherapy

Product Description

the wavelength also can be 660nm,680nm,690,-700nm,730nm,740-750nm,760-770nm,770-780nm,780-790nm,800-810nm,830-840nm,850nm,880-890nm,900-910nm,940nm,960-970nm,980nm,1020nm,1200nm,1300nm,1450nm,1550nm,1650nm,1720nm,2000nm,3000nm,4000nm

Item	Symbol	Value	Unit
DC forward current	I_F	20	mA
Pulse forward current	I_FP	100	mA
Power dissipation	P_D	25	mW
Operating temperature	T_opr	-20~+75	℃
Storage temperature	Y_stg	-30~+80	℃
Reverse voltage	V_R	5	V
Sold soldering temperature	T_sol	260℃/3Sec	---

Plus with Max 10ms,duty ratio max1/10

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	V_F	I=20mA	0.9	---	1.1	V
DC reverse Current	I_R	V=5V	----	----	5	μA
wavelength	Wp	I=20mA	1020	1050	1070	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	50	----	Nm
Luminous Intensity	I_V	I=20mA	4.5	----	6.5	mw
50%Power Angle	2θ1/2	I=20mA	----	30	----	deg

Feature

Water clear type
5mm standard
superior weather-resistance
Infrared using

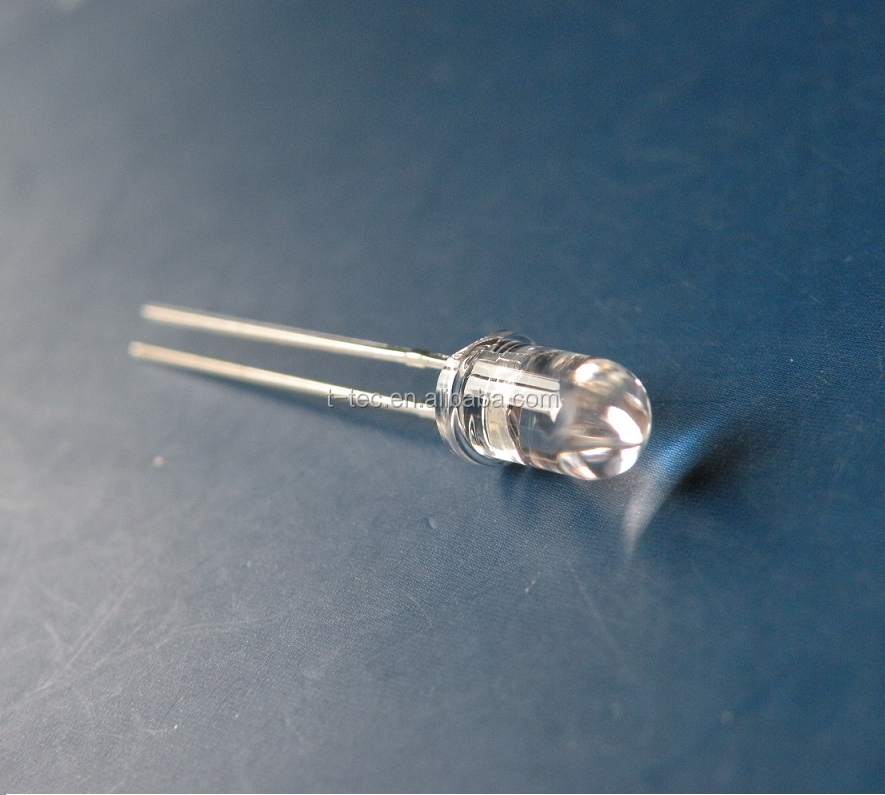

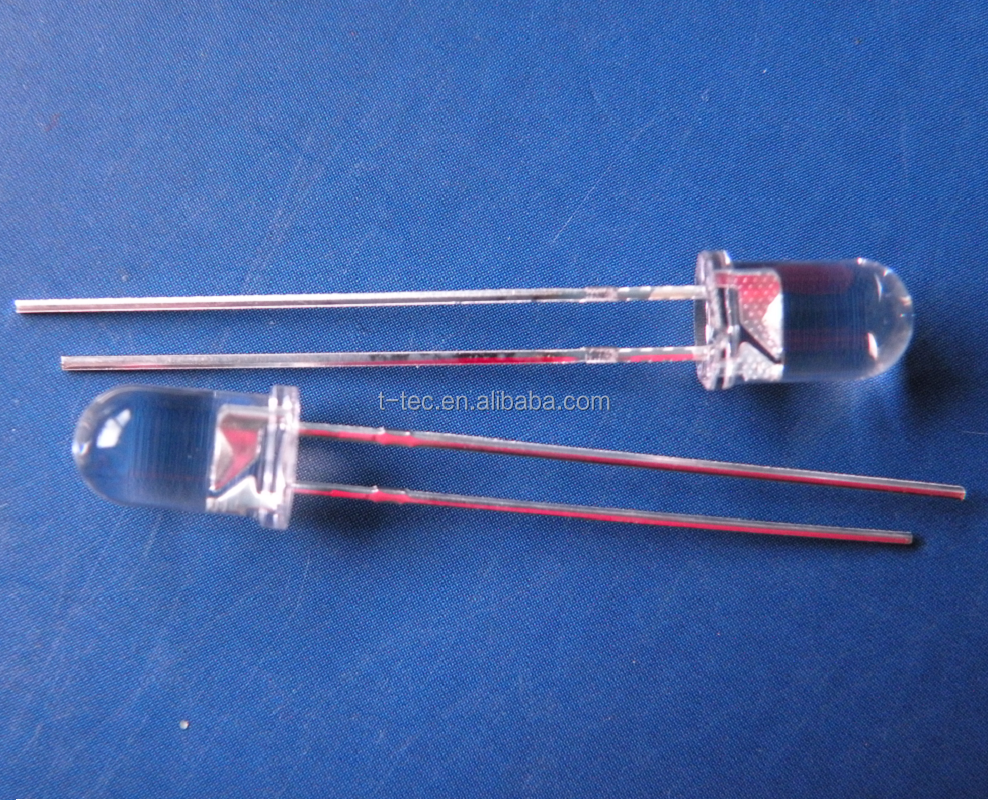

Appearance

Manufacturer-Offered T1 3/4 Infrared Diode Sensor Special Wavelength LED 5mm Hole with 1020nm 1050nm 1200nm 1300nm InGaAsP

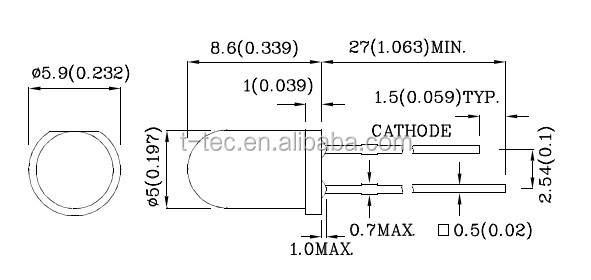

size drawing
