Infrared LEDs: F5/F8/F10 Dip 1650nm-4000nm

Infrared LEDs: F5/F8/F10 Dip 1650nm-4000nm

$95.00

5-49 piece
$90.00

50-199 piece
$85.00

200-999 piece
$80.00

≥1000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100000 Piece/Pieces per Month
Payment Type:	T/T
Port:	ShenZhen

Product Description

Special wavelength LED supplier sell water clear lens 5mm/8mm/10mm 1050nm 1250nm 1350nm 1450nm 1550nm 1650nm 1720nm 1900nm 2000nm 3000nm 4000nm InGaAs middle infrared diode lp at competitive price with ROHS

Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .

F5/F8/F10 Dip LEDs 5mm/8mm 1650nm 1720nm 2000nm 2300nm 3000nm 3400nm 4000 nm infrared ir led 4000nm led

Product Description

1) water clear type

2) 5mm,8mm,10mm standard

3) wavelength range:1050nm-4000nm

4) work volt:customzied

5)Pulse forward current : 200mA

Item	Symbol	Value	Unit
Pulse forward current	I_F	200	mA
Power dissipation	P_D	200	mW
Operating temperature	T_opr	-20~+75	℃
Storage temperature	Y_stg	-30~+80	℃
Reverse voltage	V_R	5	V
Sold soldering temperature	T_sol	260℃/3Sec	---

Parameter	Test Condition	Symbol	Min	Typ	Max	Unit
Forward Voltage( V_F)	I_F_P=200mA	V_F	0.4	----	0.6	V
View Angle	I_FP=200mA	2θ1/2		30		deg
Peak Wavelength	I_FP=200mA	Wp	1900	2000	2100	nm
Reverse Current	V_R=5V	I_R	----	----	----	μA
Luminous Intensity(I_V)	I_FP=200mA	I_V	1.0		3.5	Mw

also have other IR wavelength, such as 680nm, 690nm,700nm,710-720nm,730nm,740-750nm,760-770nm,770-780nm,800-810nm,830-840nm,850nm,860-870nm,880nm,900-910nm,930nm,940nm,960-970nm,970-980nm,1020nm,1050nm,1200nm,1300nm,1450nm,1550nm,1650nm,1720nm,2000nm,3000nm,4000nm

Appcications:

1)medical facilities.

2)infrared systerm

3)physiotherapeutic instrument

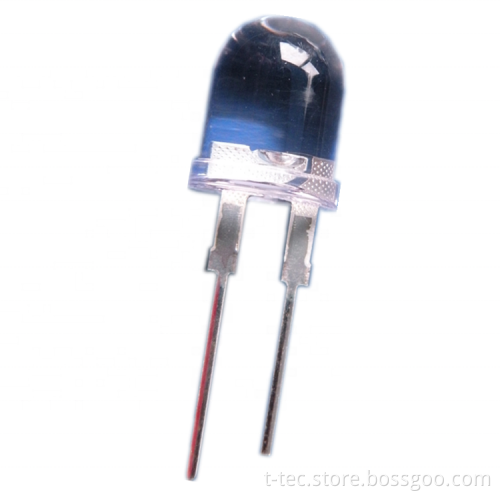

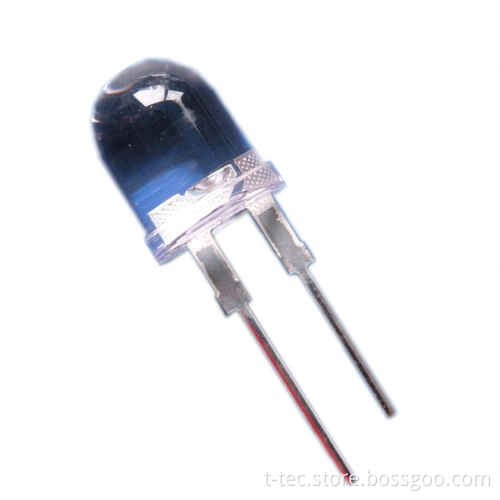

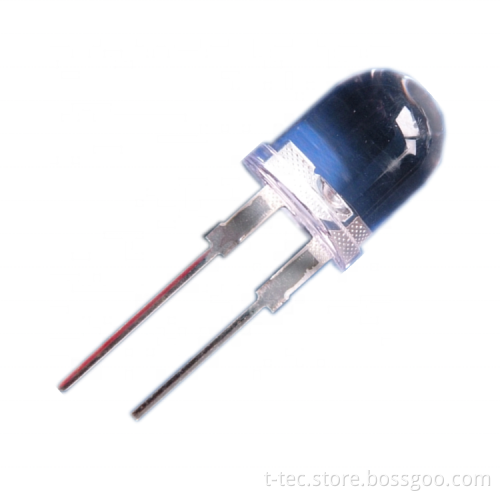

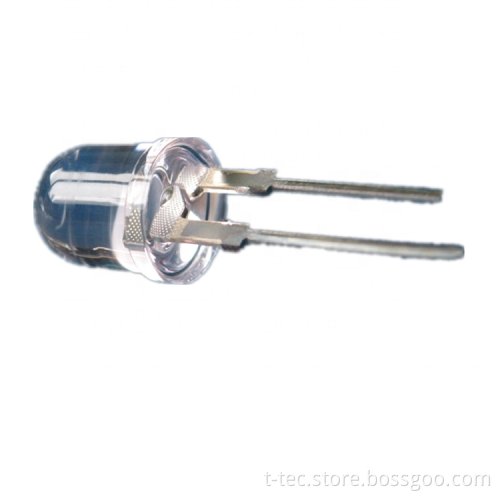

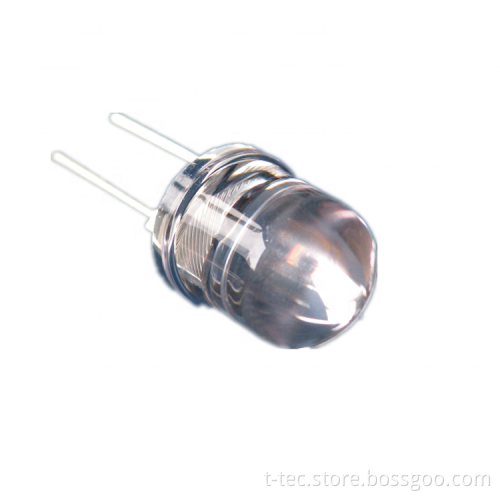

Appearance

Size drawing

F5/F8/F10 Dip LEDs 5mm/8mm 1650nm 1720nm 2000nm 2300nm 3000nm 3400nm 4000 nm infrared ir led 4000nm led
