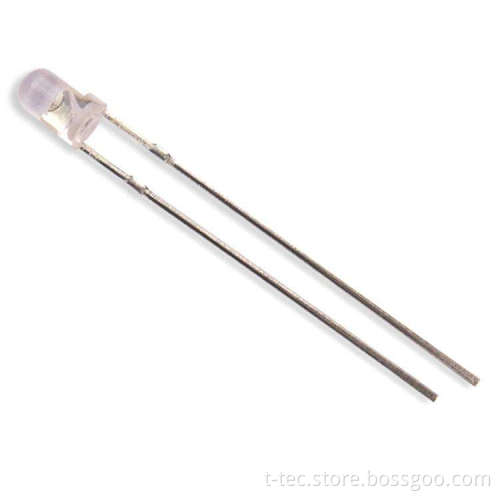

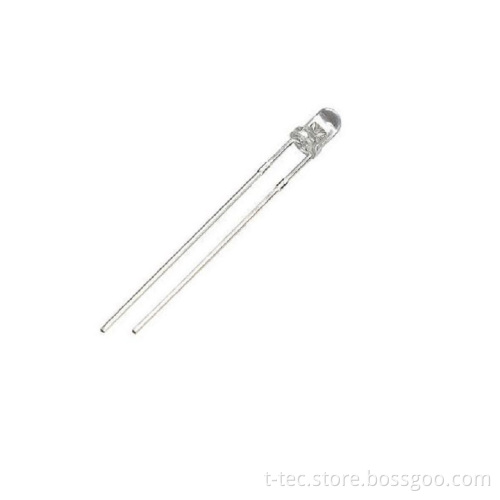

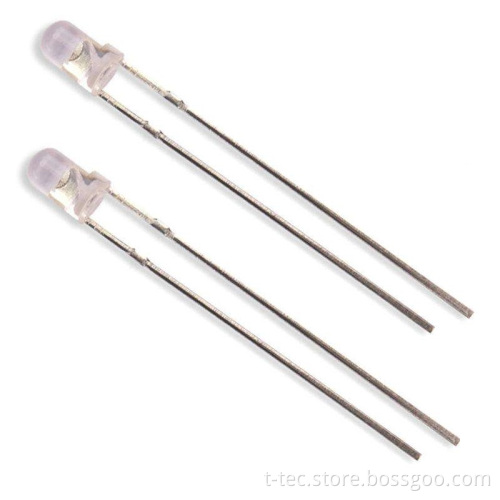

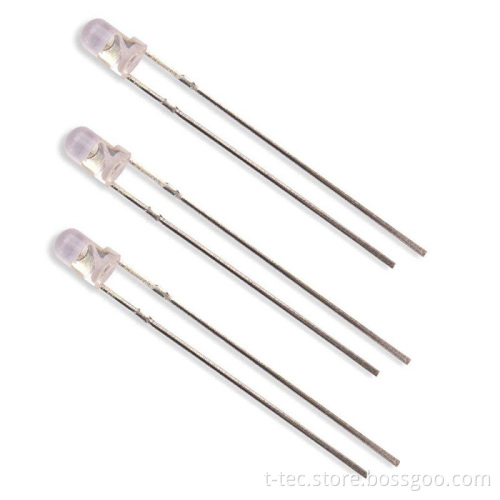

AlGaAs 3mm 675nm 680nm Red DIP LED Sensor

AlGaAs 3mm 675nm 680nm Red DIP LED Sensor

$0.80

500-1999 piece
$0.70

2000-4999 piece
$0.65

5000-9999 piece
$0.60

≥10000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Western Union,T/T

Product Description

Chinese special wavelength LED supplier hot sell water clear lens T1 3mm AlGaAs 675nm 680nm red color DIP LED as sensor at competitive price with ROHS

Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .

AlGaAs 3mm 675nm 680nm Red Color DIP LED sensor

Applications:

1. oxygen meter
2.Gene testing device
3.motion capture
4. iris authentication
5.Vein certification
6.Surveillance camera
7.Color selection
8.encoder
9.Appearance inspection
10.solar simulation
11.photo therapy

Package size:

AlGaAs 3mm 675nm 680nm Red Color DIP LED sensor

Initial Electrical/Optical Characteristics (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	V_F	I=20mA	1.85	2.0	2.3	V
DC reverse Current	I_R	V=5V	----	----	5	μA
Dome Wavelength	W_D	I=20mA	675		680	Nm

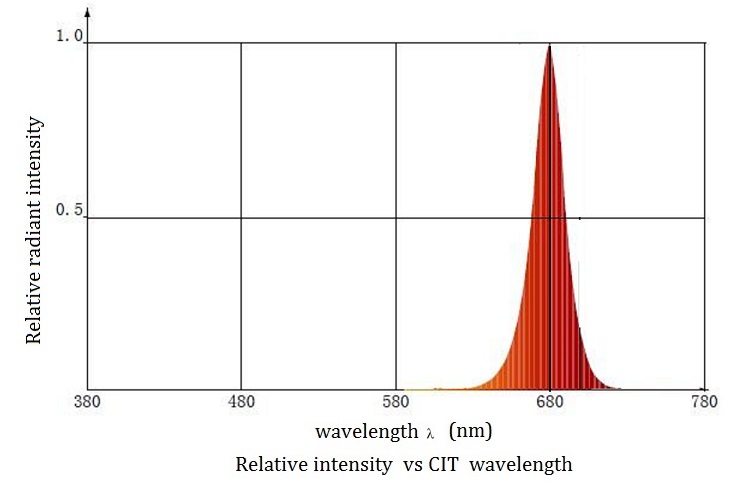

Spectrum Radiation Bandwidth	Δλ	I=20mA	----	20	----	Nm
Luminous Intensity	I_V	I=20mA	1000	1500	1800	mcd
Radiated Power	Po	I=20mA	3	4
50%Power Angle	2θ1/2	I=20mA	----	30	----	deg
Rise time	Tr	I=20mA		50		ns
Fall time	Tf	I=20mA		25		ns

AlGaAs 3mm 675nm 680nm Red Color DIP LED sensor

>>>>>>>contact us

Packaging & Shipping

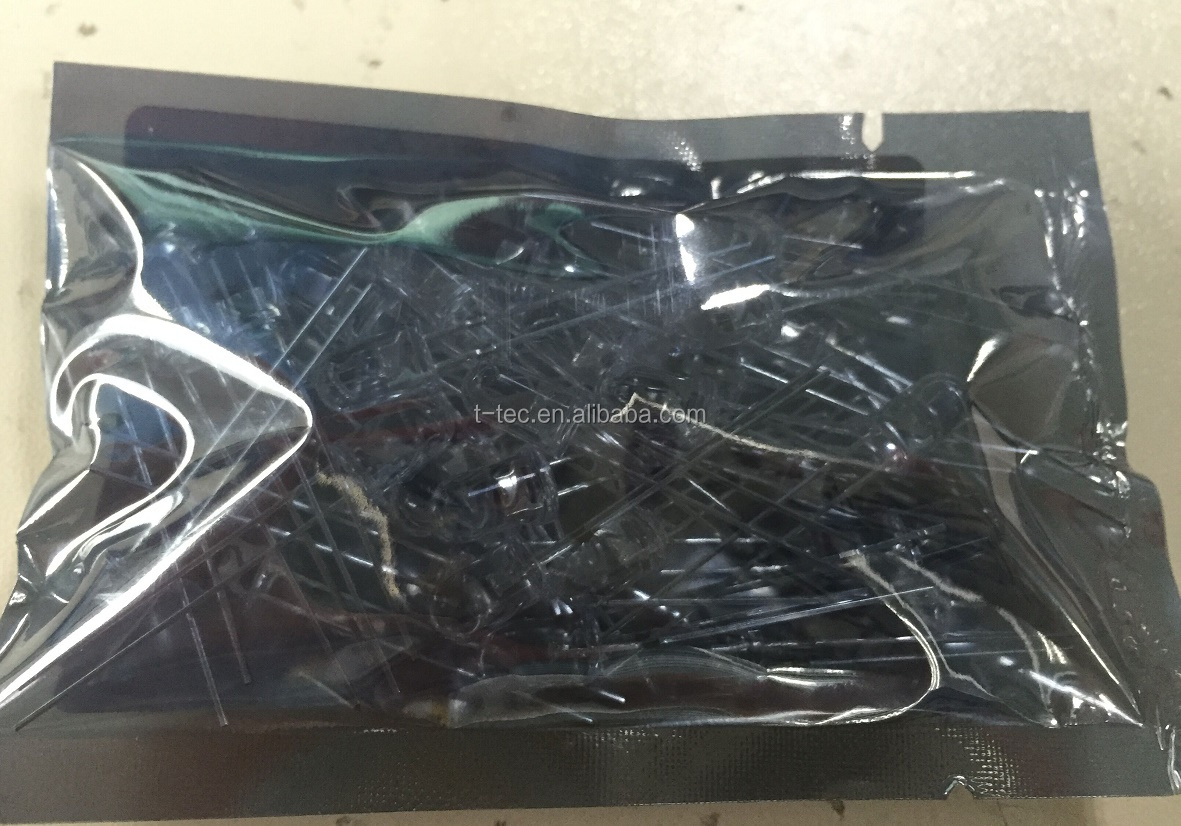

1000pcs in a pp bag,with carton

All items will be shipped by DHL , UPS , EMS , airmail with tracking number in order to speed up the delivery !

Our Services

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
