Yello-Green 3mm 570nm LED

$10.00

5-49 piece
$9.00

50-99 piece
$8.50

100-199 piece
$7.50

≥200 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Western Union,T/T

Product Description

Chinese manufacturer offer T-1 3mm through hole water clear lens 570nm InGaAsP Yello- green color LED lamp

Starsealand offers LED (light-emitting diode) products with the peak wavelength from 255nm to 4600 nm, through-hole and surface mount packages in different performance classes and brightness levels. Bi-color, tri-color, Si and InGaAs photodidoe ,custom LED packages are also available. Please contact us for pricing.

Yello- Green Color 3mm 570nm LED

Applications:

1.LCD backlighting

2.Pushbutton backlighting

3.Front panel indicator

4.Symbol indicator

5.Medical testing equipment

6.biological testing equipment

7.grow lighting

8.Visual system Light Source

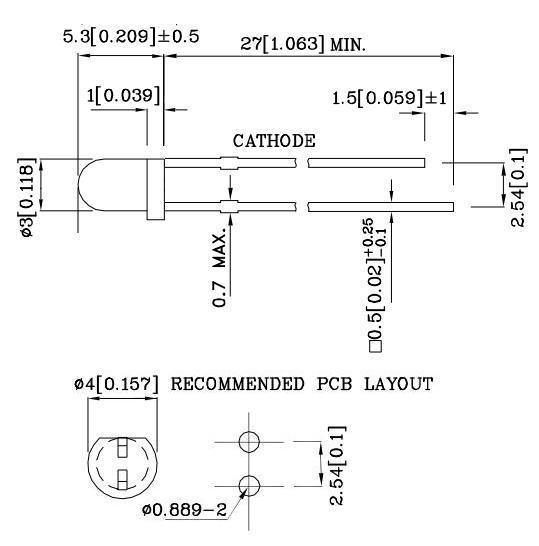

Package size:

Yello- Green Color 3mm 570nm LED

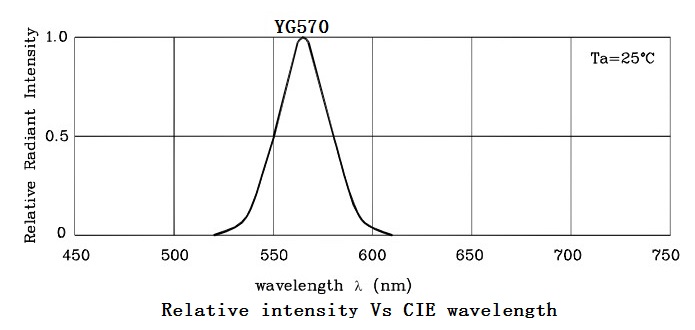

n Initial Electrical/Optical Characteristics (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	V_F	I=20mA	1.85	2.0	2.3	V
DC reverse Current	I_R	V=5V	----	----	5	μA
Dome Wavelength	W_D	I=20mA	568	570	575	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	30	----	Nm
Luminous Intensity	I_V	I=20mA	200	300	600	mcd
50%Power Angle	2θ1/2	I=20mA	----	30	----	deg
Capacitance (Typ.)	c	V=0V, f=1MHz		15		pF

Yello- Green Color 3mm 570nm LED
