Infrared Diode LED with T1 Lens (3mm, 5mm, 8mm) - 1100nm to 1450nm

Infrared Diode LED with T1 Lens (3mm, 5mm, 8mm) - 1100nm to 1450nm

$7.00

500-1999 piece
$6.50

2000-4999 piece
$5.50

5000-9999 piece
$5.00

≥10000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Western Union,T/T

Product Description

Chinese special wavelength LED supplier offer T1 3mm 5mm 8mm 10mm through hole water clear lens 1100 1200 1300 1350 1450nm AlGaAs infrared diode led

Starsealand offers LED (light-emitting diode) products with the peak wavelength from 255nm to 4600 nm, through-hole and surface mount packages in different performance classes and brightness levels. LED die, Bi-color, tri-color, Si and InGaAs photodidoe ,custom LED packages are also available. Please contact us for pricing.

Product Description

1) water clear type

2) 3mm standard

3) wavelength range:1450nm ,invisible light

4) work volt:0.65-0.85v 20mA

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	0.65	----	0.85	V
DC reverse Current	IR	V=5V	----	----	10	μA
Wavelength	Wλ	I=20mA	1400	1450	1500	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	50	----	nm
Luminous Intensity	Ee	I=20mA	1.5		4.5	Mw
50%Power Angle	2θ1/2	I=20mA	----	30	----	deg

also have other wavlength, such as 680nm,690nm, 700nm,730nm,740-750nm,760-770nm,770-780nm,800-810nm,830-840nm,850nm,880nm,900-910nm,960-970nm,970-980nm,1020nm,1050nm,1200nm,1300nm,1550,1650nm,1720nm,2000nm,3000nm,4000nm

Appcications:

1)medical facilities.

2)infrared systerm

3)physiotherapeutic instrument

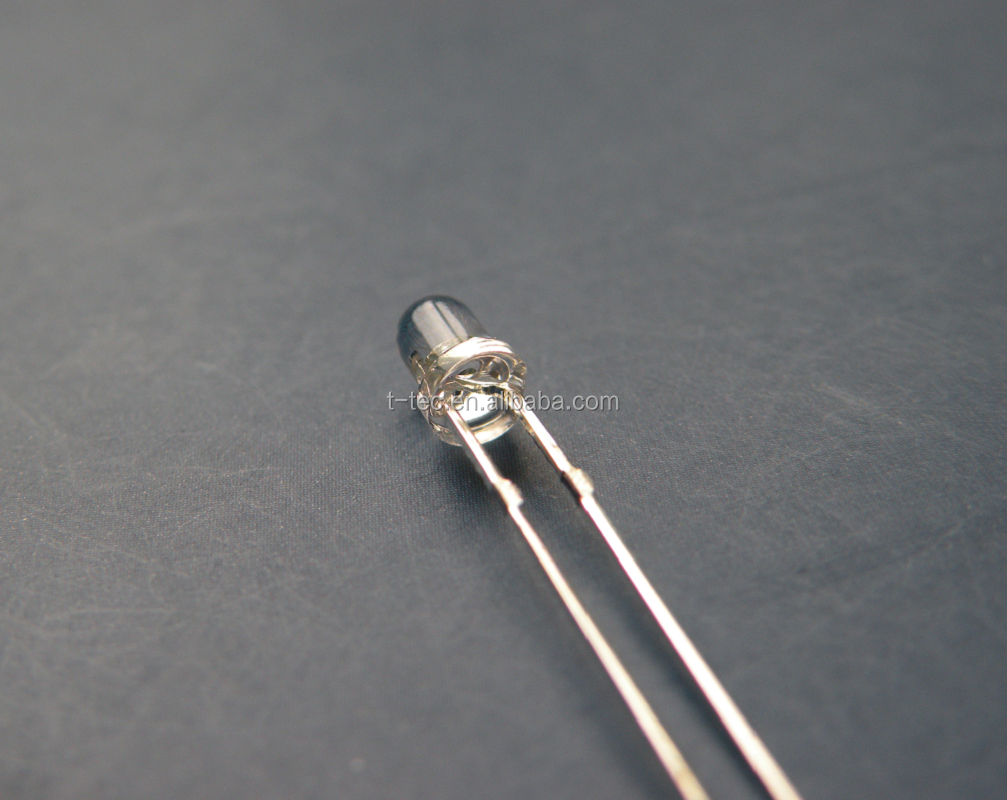

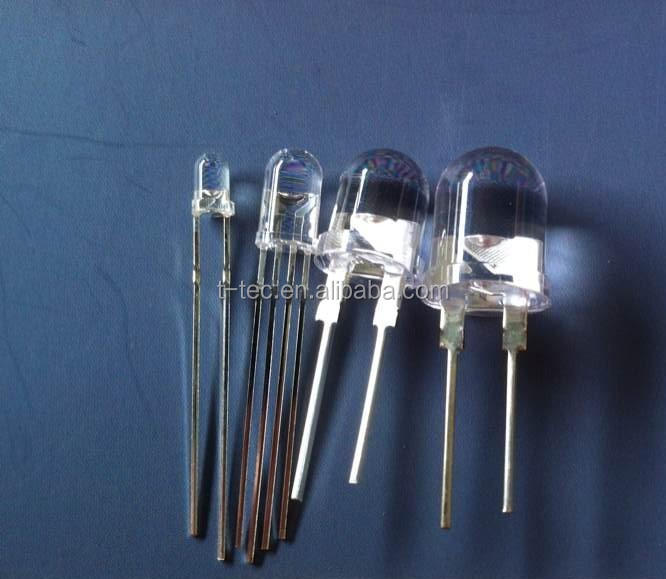

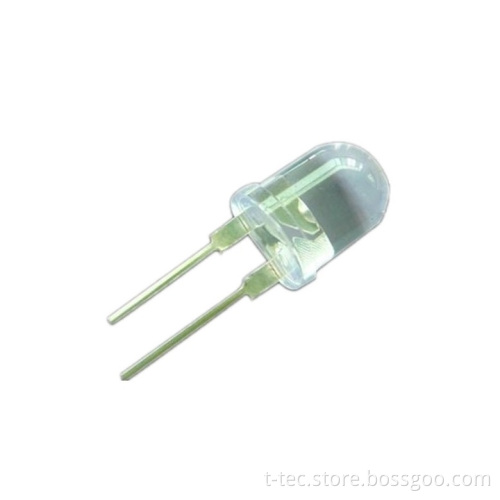

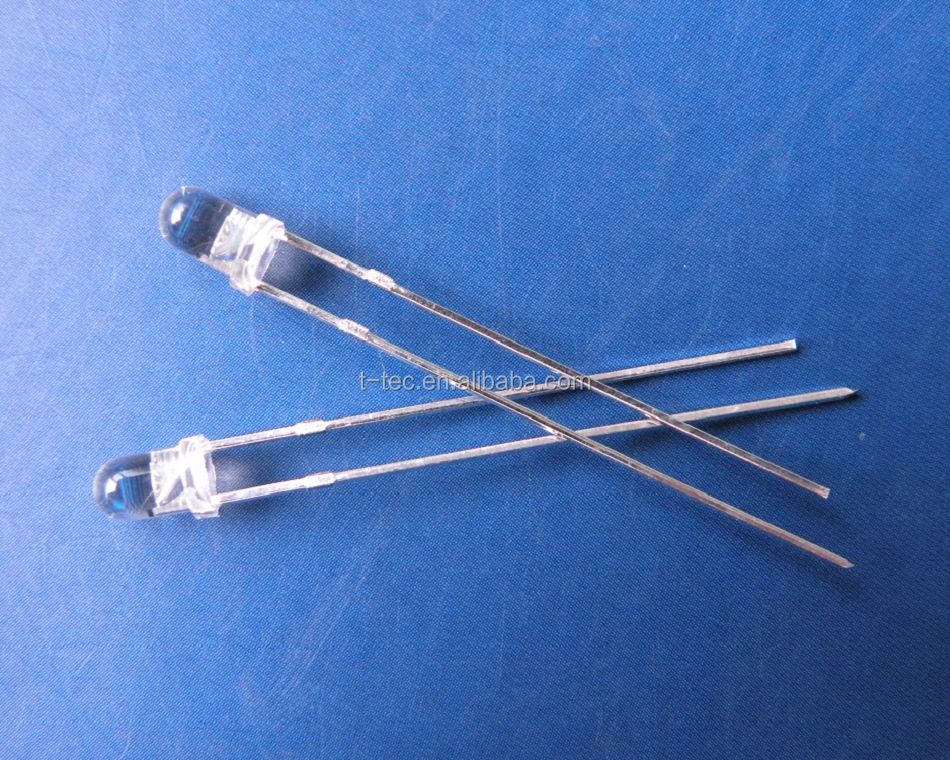

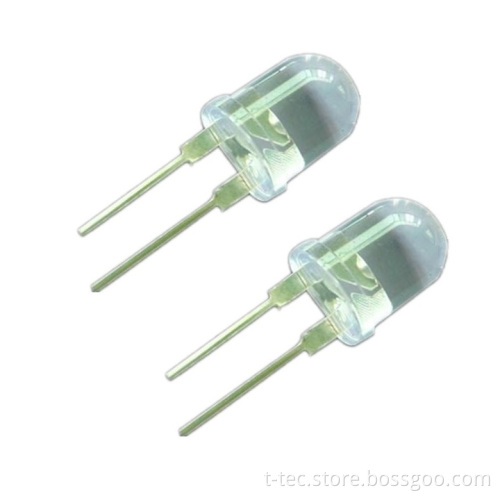

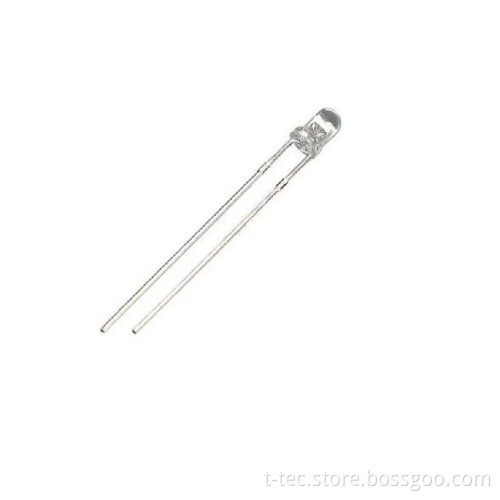

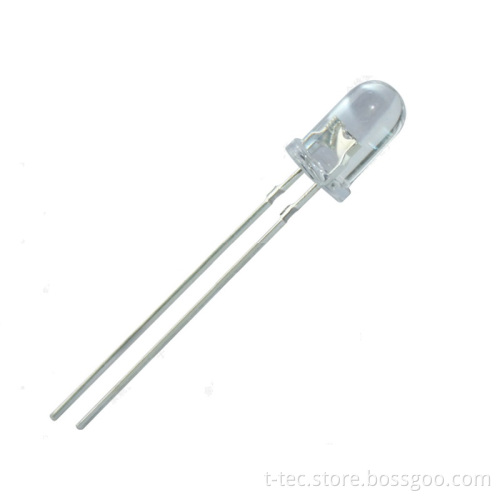

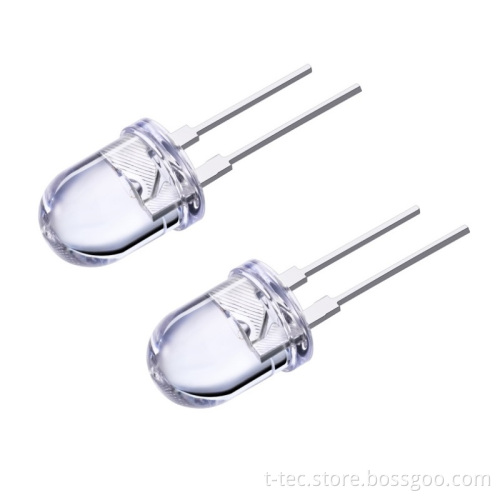

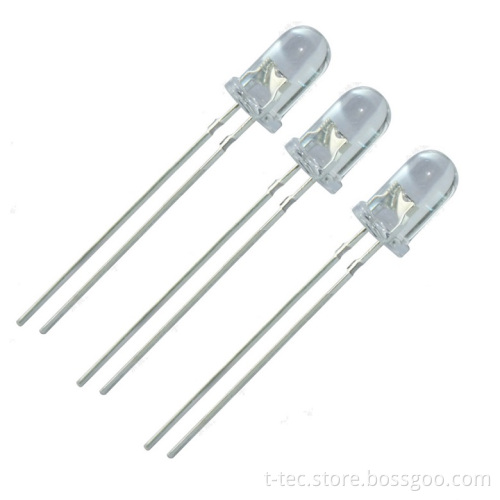

Appearance:

T1 3mm 5mm 8mm through hole water clear lens 1100 1200 1300 1350 1450nm infrared diode LED

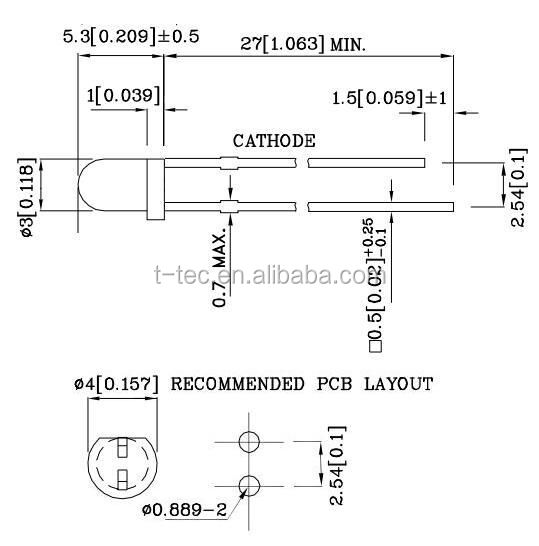

Size drawing :

T1 3mm 5mm 8mm through hole water clear lens 1100 1200 1300 1350 1450nm infrared diode LED
