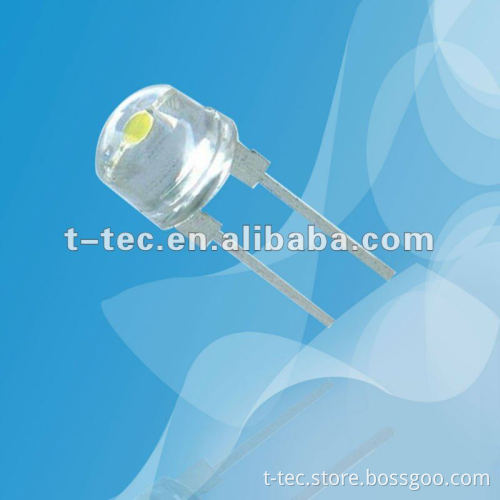

8mm 1w power 750nm power led

Specifications 8mm 1w power 750-760nm power led

1).input voltage:1.6-1.95v

2).wavelength:750-770nm

3).Meet Rohs

n         Initial Electrical/Optical Characteristics                               (Ta=25°C)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=300mA	1.6	1.8	1.95	V
DC reverse Current	IR	V=5V	----	----	10	μA
Peak wavelength	λ	I=300mA	750	760	770	nm
Spectrum Radiation Bandwidth	Δλ	I=300mA	----	28	----	Nm
luminous Intensity	Iv	I=300mA	60		100	MW
50%Power Angle	2θ1/2	I=300mA	----	30	----	deg

  Feature Chip material:InGaAa Emitted color:red Lens Appearance: water clear High flux output and high luminance SMT solder ability Lead free product Meet ROHS   Applications Electronics equipment Disinfection and sterilizer Medical used
