5mm super brightness Yellow color Round Dip LED

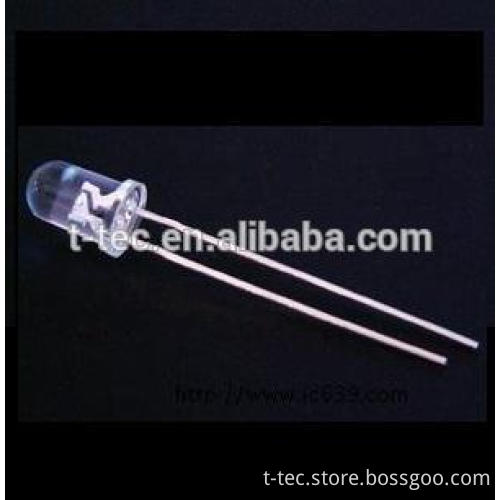

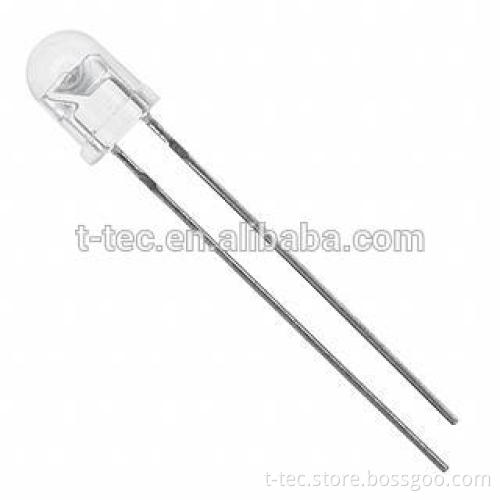

  5mm super brightness  Yellow color  Round Dip LED        applications:  1.Up to electronic switch 2.Digital read out lamps 3.Audio equipment 4.LED sign and screen    Photo:           package size :      Initial Electrical/Optical Characteristics                                (Ta=25℃)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	1.85	2.0	2.3	V
DC reverse Current	IR	V=5V	----	----	5	μA
Dome Wavelength	WD	I=20mA	588	590	593	nm
Peak  Wavelength	Wp	I=20mA		590		nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	20	----	nm
Luminous Intensity	IV	I=20mA	3200	4000	7000	mcd
50%Power Angle	2θ1/2	I=20mA	----	30	----	deg
