DFB Laser of 1596nm 10mW with FC/UPC Fiber Optic Connector

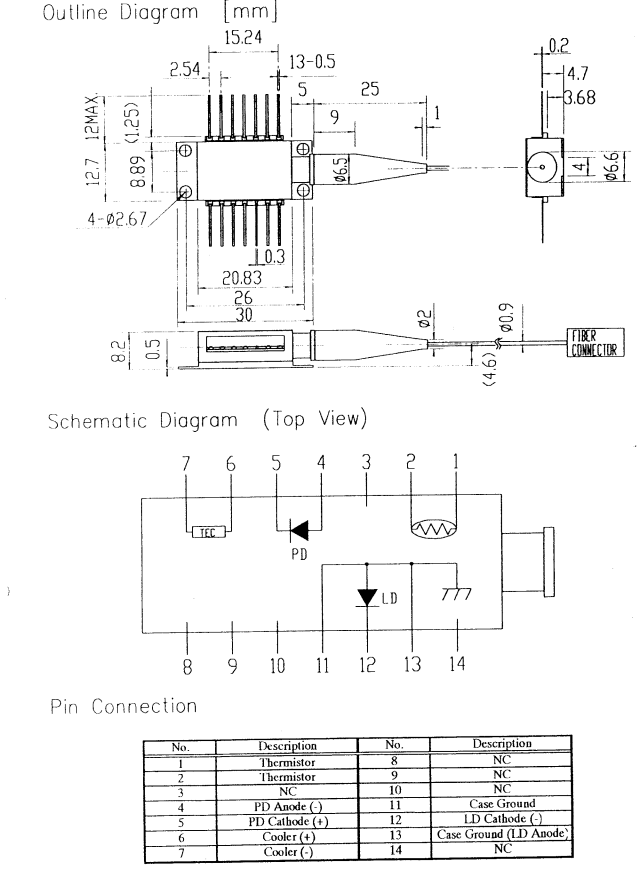

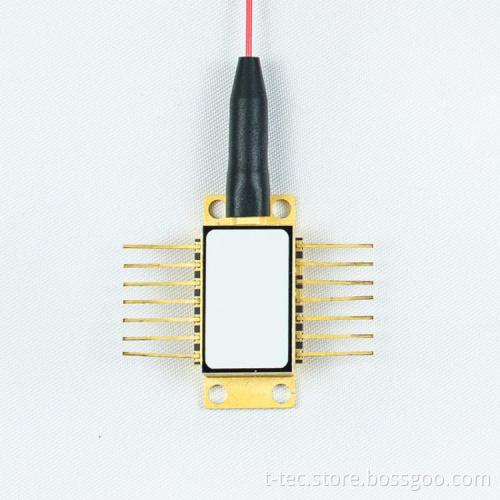

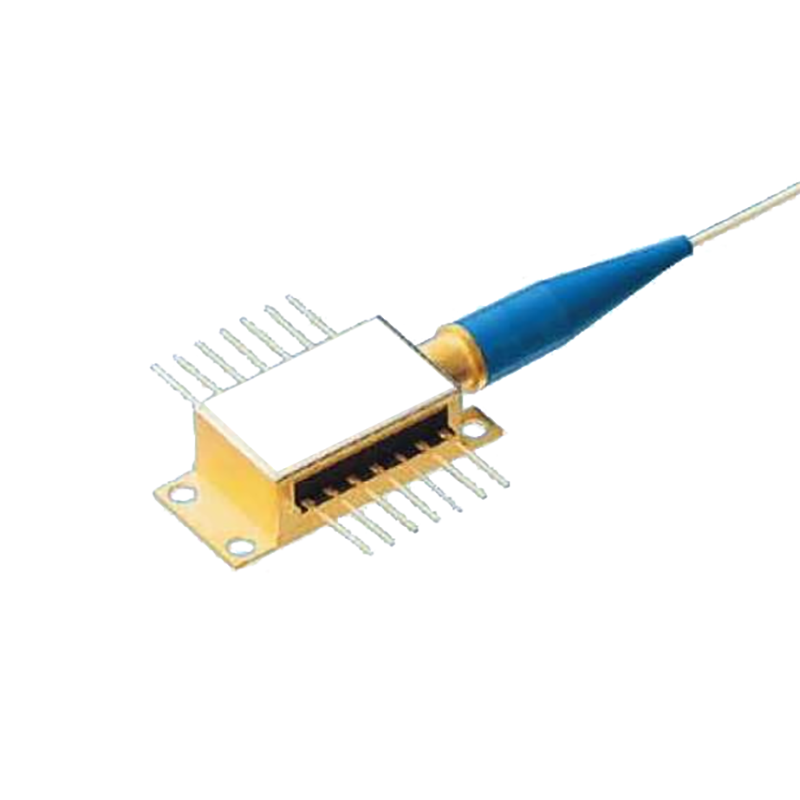

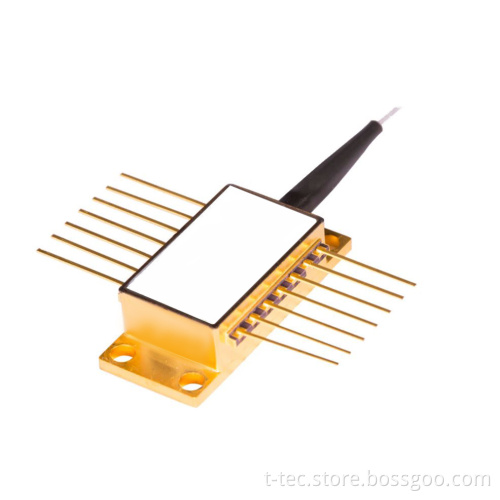

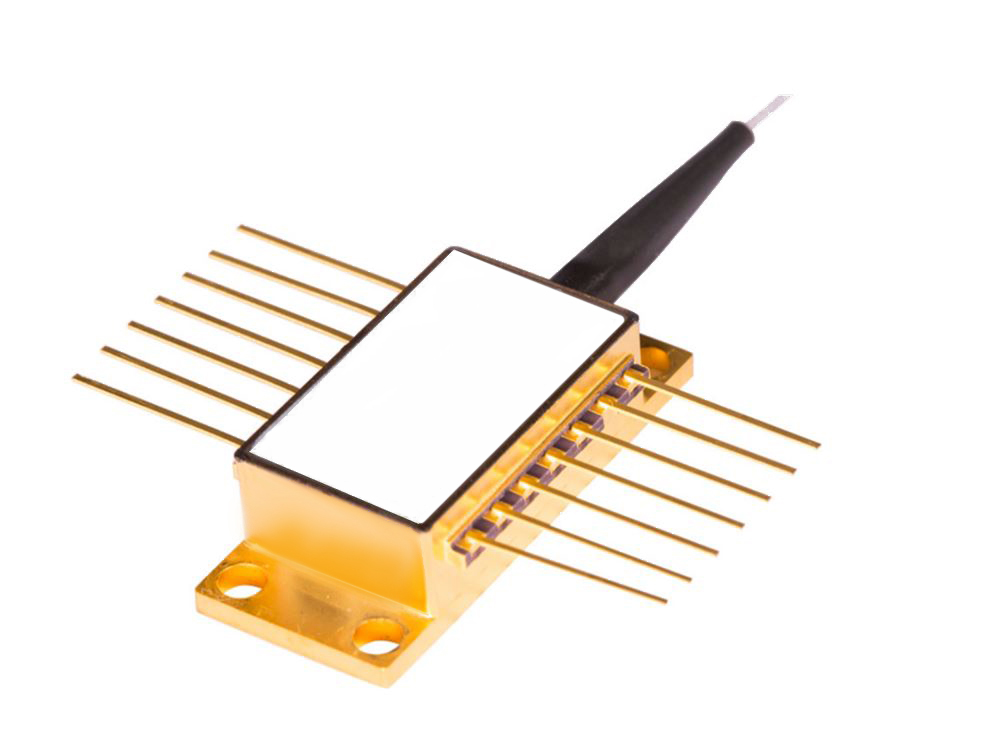

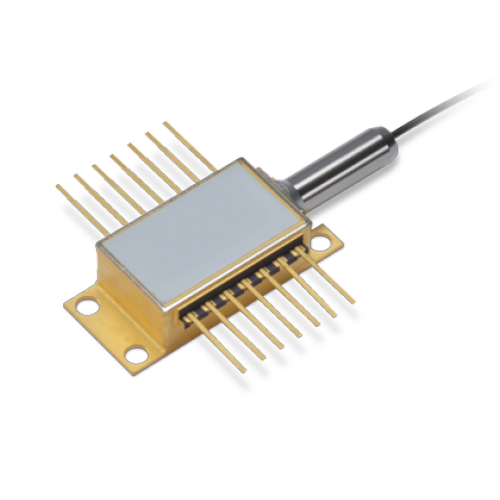

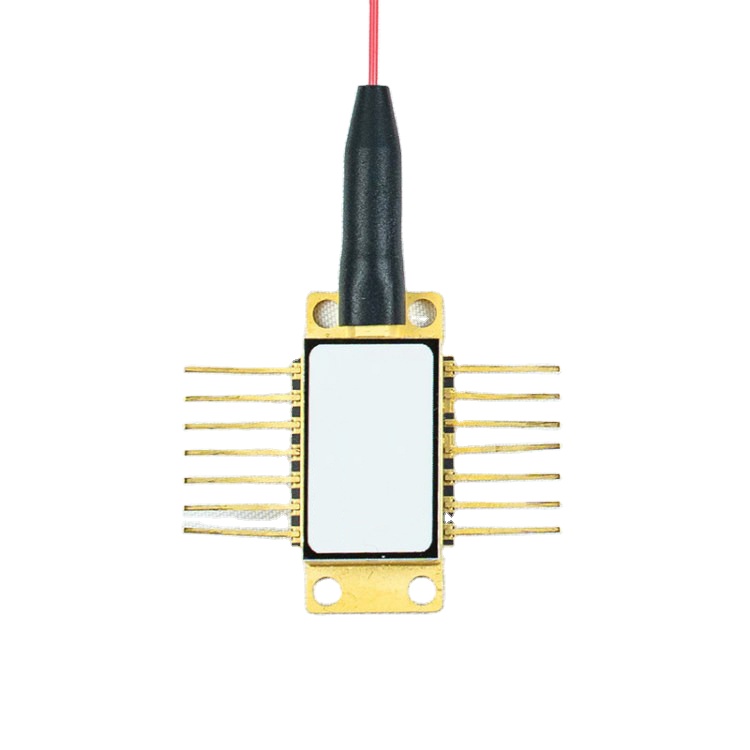

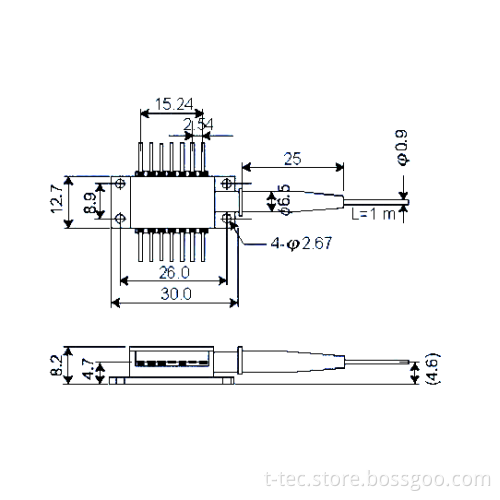

They are distributed feedback cavity design semiconductor lasers in mounted in an industry standard 14-pin butterfly package. They have an integrated TE cooler and an integrated back facet monitor photodiode. They have a spectral width of approximately 2 MHz. This narrow linewidth makes them an excellent choice for spectroscopy and gas sensing applications as well as telecom applications. They are specified with output power up to 15mW. The butterfly package has a polarization maintaining fiber pigtail which has an FC/PC connector termination. These lasers are well known for their high reliability and long term stability.

Proper Handling and Operation of Laser Diodes:

DFB's, like all semiconductor lasers, are highly susceptible to damage from ESD and from temperatures exceeding their specified safe operating range. The user is advised to use care and proper ESD safety practices when handling them to avoid damage to the laser. A properly rated low noise current source, a low thermal resistance mount and a temperature controller should be used for optimal device performance and reliability.

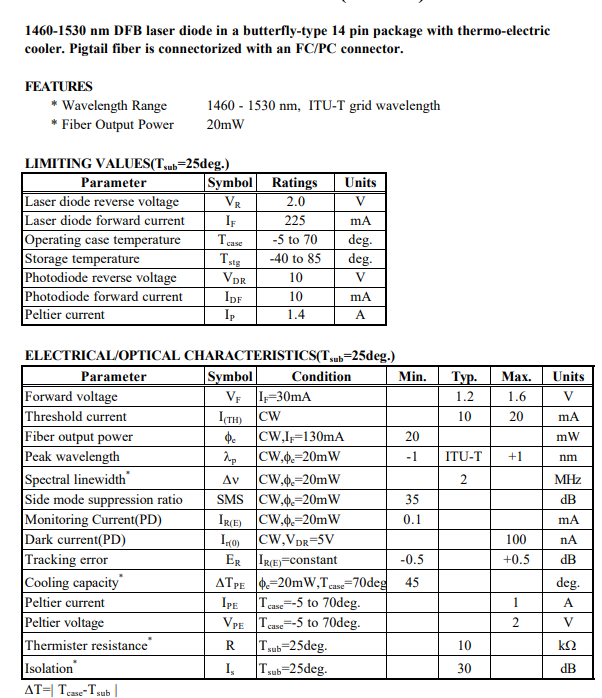

OPTICAL & ELECTRICAL SPECIFICATIONS (TYPICAL @ 25 °C)
Center Wavelength: 1598.6nm Spectral Linewidth: 2 MHz Fiber Output Power: 10 mW Side Mode Suppression Ratio (SMSR): > 35 dB (typically > 45 dB) Monitor PD Current (20mW): 0.1 mA Peltier Current (IPE, Tcase = -5 ~ 70C): 1 Amp Peltier Current (IPE, Tcase = -5 ~ 70C): 2 Volts Thermistor Resistance (Tsub=25C): 10 kOhm Relative Intensity Noise (RIN): -145 dB / Hz
FIBER AND CONNECTOR
Fiber Pigtail Type: Polarization Maintaining Connector: FC/PC

Wholesale FC/UPC Fiber Optic Connector with 1596nm 10mW DFB Laser

Product Description

DFB's offer several key differentiating features relative to other types of semiconductor lasers. These features include their single frequency emission profile, their high stability and their ability to be tuned to adjacent wavelengths. These single frequency lasers employ Bragg diffraction gratings (mirrors) in their active gain region to form a waveguide. Unlike Fabry-Perot lasers, which utilize mirrors at both ends of the laser cavity, the reflection of the laser light in a DFB laser is along the entire cavity. This design principle allows them to deliver their single mode beam profile. DFB semiconductor materials include indium-phosphide and gallium-indium-arsenide-antimony.
