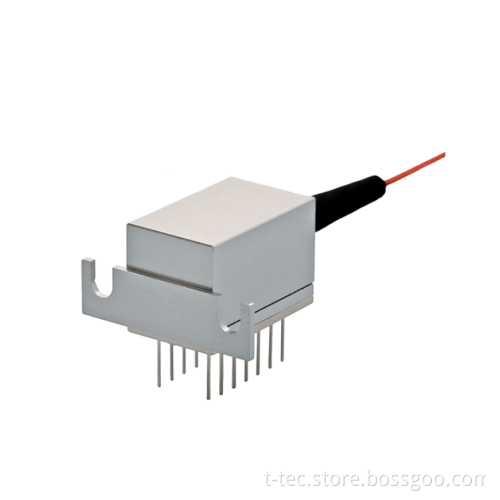

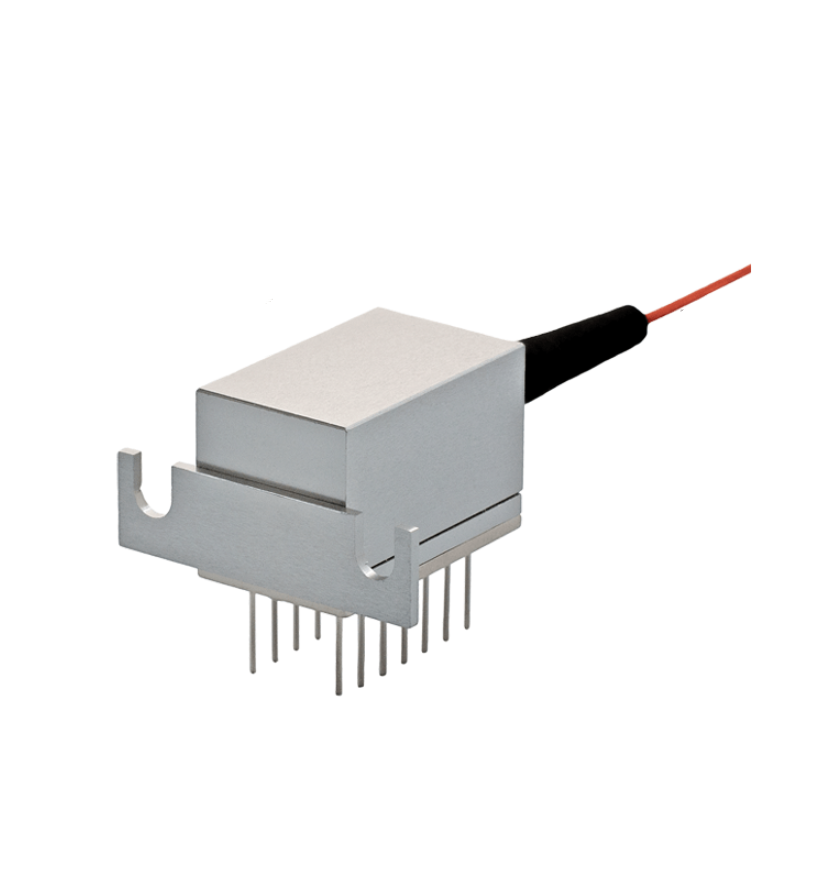

FC/APC with 14pin DIL Internal TE Cooler 2.5Gbps 1570nm DFB Laser

DFB Laser 1570nm, 20 mW CW / 60 mW Pulse, 2.5G Fiber Coupled Module Details

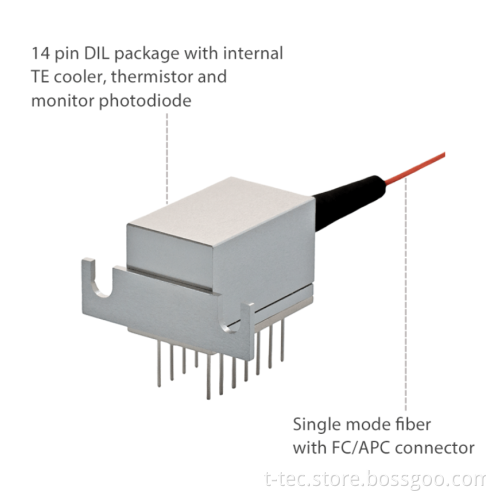

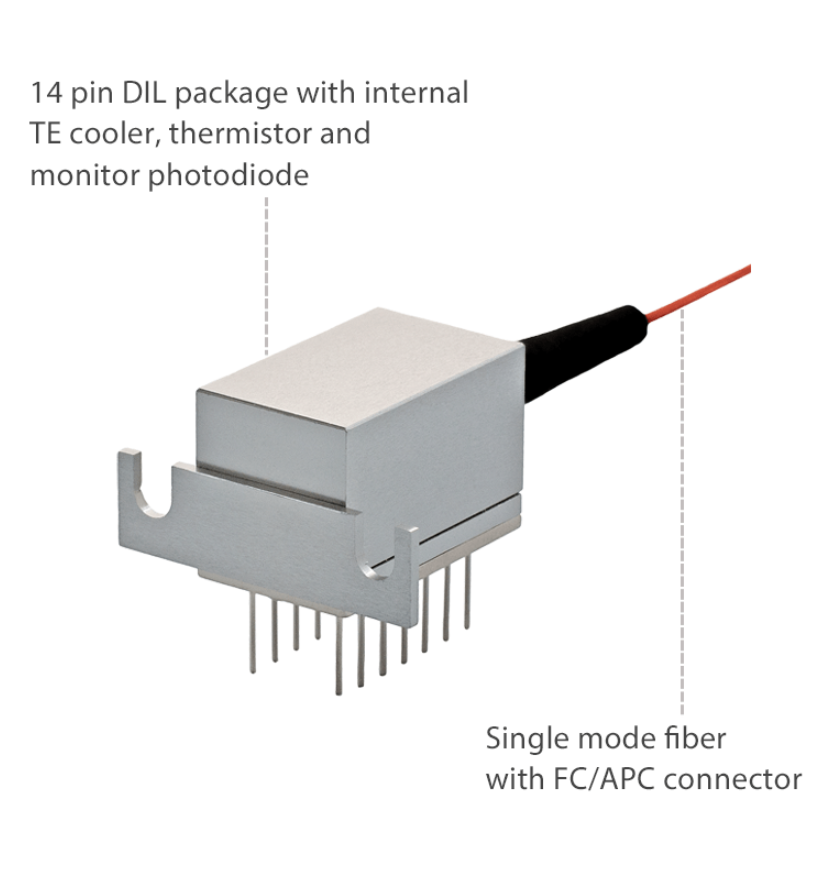

LD4B-1570-DFB-2.5G-20-DIL-2-SM1-FA-CW-0.5 is a multiple quantum well distributed feedback grating laser diode (MQW DFB), with internal photodiode, coupled to an optical fiber. This laser is mounted in a Mini-DIL Package with internal TEC, thermistor, and photodiode.

• Wavelength: 1570 nm
• Cavity type: DFB
• Optical power: up to 20 mW in CW mode and up to 60 mW in pulse mode in the single-mode fiber G.657A1

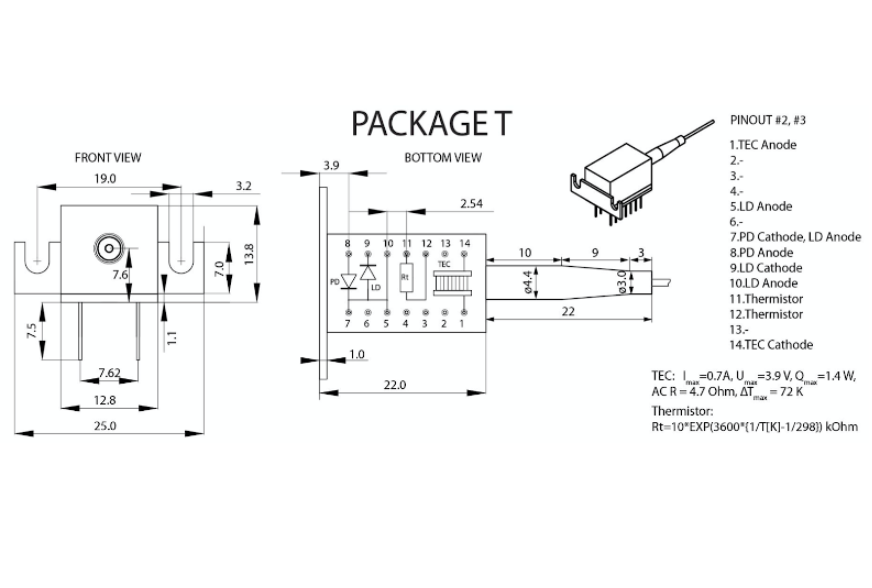

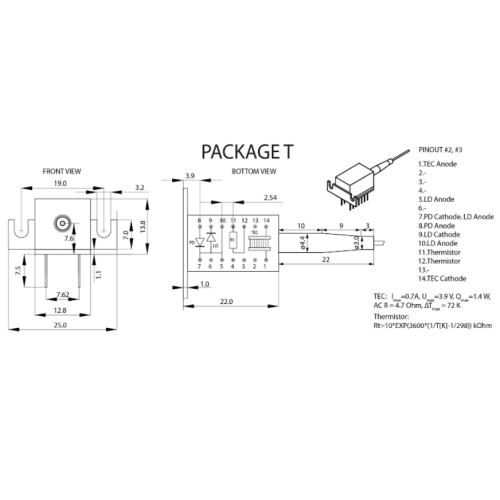

• Package type: mini-DIL
• Built-in thermistor, TEC
• Built-in monitor photodiode

Proper Handling and Operation of Laser Diodes:

DFB's, like all semiconductor lasers, are highly susceptible to damage from ESD and from temperatures exceeding their specified safe operating range. The user is advised to use care and proper ESD safety practices when handling them to avoid damage to the laser. A properly rated low noise current source, a low thermal resistance mount and a temperature controller should be used for optimal device performance and reliability.

OPTICAL CHARACTERISTICS (TYPCIAL @ T = 25 °C)
Wavelength: 1570 nm ±3 nm Pulse Optical Power: 60 mW CW Optical Power: 20 mW Spectral Width: 0.09 nm (CW, P = 20 mW, -20 dB, OSA) Spectral Width: 500 kHz (CW, P = 20 mW, delayed self- heterodyne method) Wavelength-Temperature Coeff.: 0.13 nm/°C Side Mode Suppression Ratio: 55 dB (typ, CW, P = 20 mW) Refer to Datasheet for Additional Specifications
PULSE SPECIFICATIONS

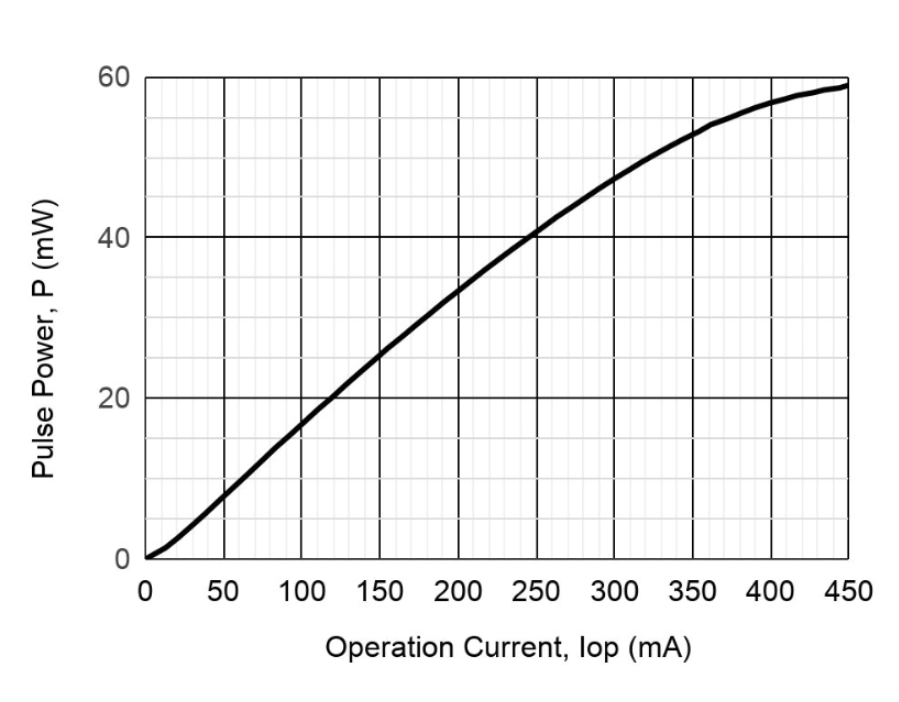

Pulse Optical Power: 60 mW (Iop = 450 mW) Rise and Fall Times: 80 ps (typ; 120 ps max, see datasheet) Capacitance (PD): 10 pF Pulse Mode: Pulse Duration 10 μs, Duty Cycle = 1%
ELECTRICAL SPECIFICATIONS - CW MODE

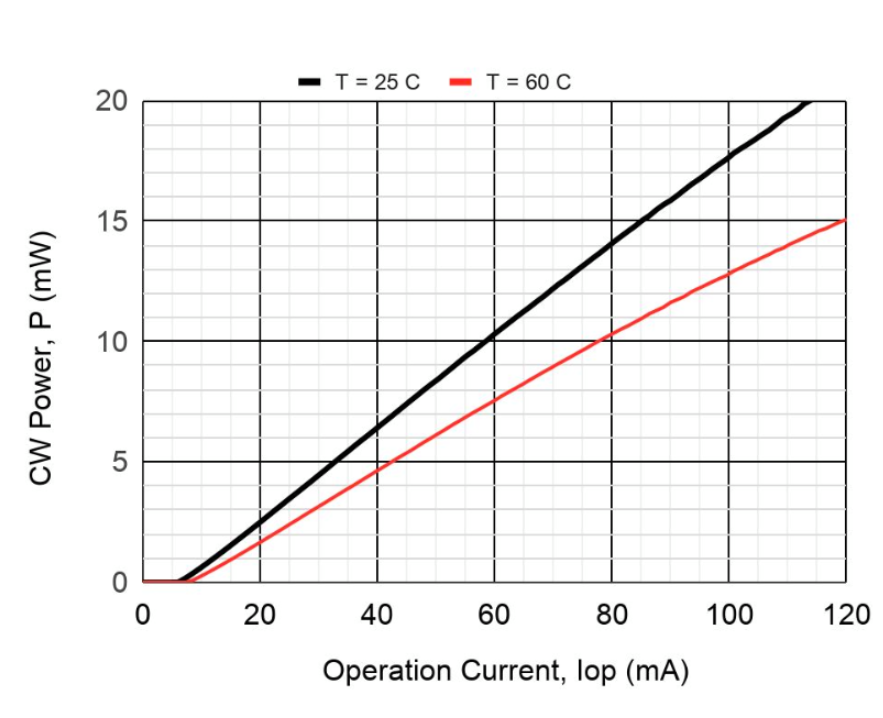

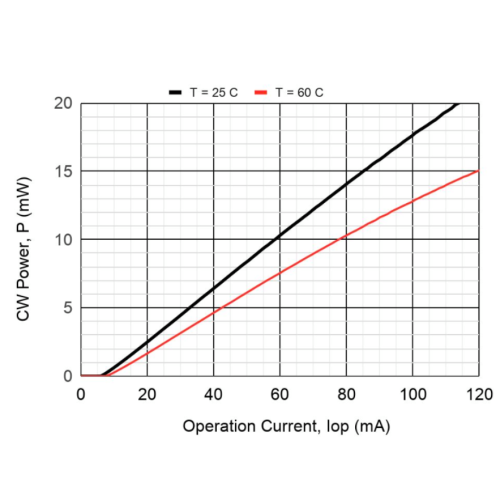

Threshold Current: 8 mA (typ) Operating Current: 100 mA (typ, CW, P = 20 mW, SM1 Fiber) Operating Voltage: 1.4 V (typ, CW, P = 20 mW) Slope Efficiency: 0.2 mW/mA (CW) Monitoring Output Current (PD): 1.7 mA
INTERNAL TEC SPECIFICATIONS
Max Operating Current: 0.7 A Max Operating Voltage: 3.9 V Heat Pump Capacity: 1.4 Watt (max) Max Delta T: 72 K Thermistor: 10k Ω
OUTPUT FIBER SPECIFICATIONS
G.657.A1, Furcation Tubing 0.9 mm FC/APC Connector Other Fiber and Connector Types Available; Inquire

Fiber FC/APC with 14pin DIL Internal TE Cooler 2.5Gbps 1570nm DFB Laser

Product Description

DFB's offer several key differentiating features relative to other types of semiconductor lasers. These features include their single frequency emission profile, their high stability and their ability to be tuned to adjacent wavelengths. These single frequency lasers employ Bragg diffraction gratings (mirrors) in their active gain region to form a waveguide. Unlike Fabry-Perot lasers, which utilize mirrors at both ends of the laser cavity, the reflection of the laser light in a DFB laser is along the entire cavity. This design principle allows them to deliver their single mode beam profile. DFB semiconductor materials include indium-phosphide and gallium-indium-arsenide-antimony.

Application:

Telecommunications:

* Dense WDM

* SONET/SDH OC-192/ STM-64

* Extended and ultra-long reach

* Undersea systemsn

* Digital video
